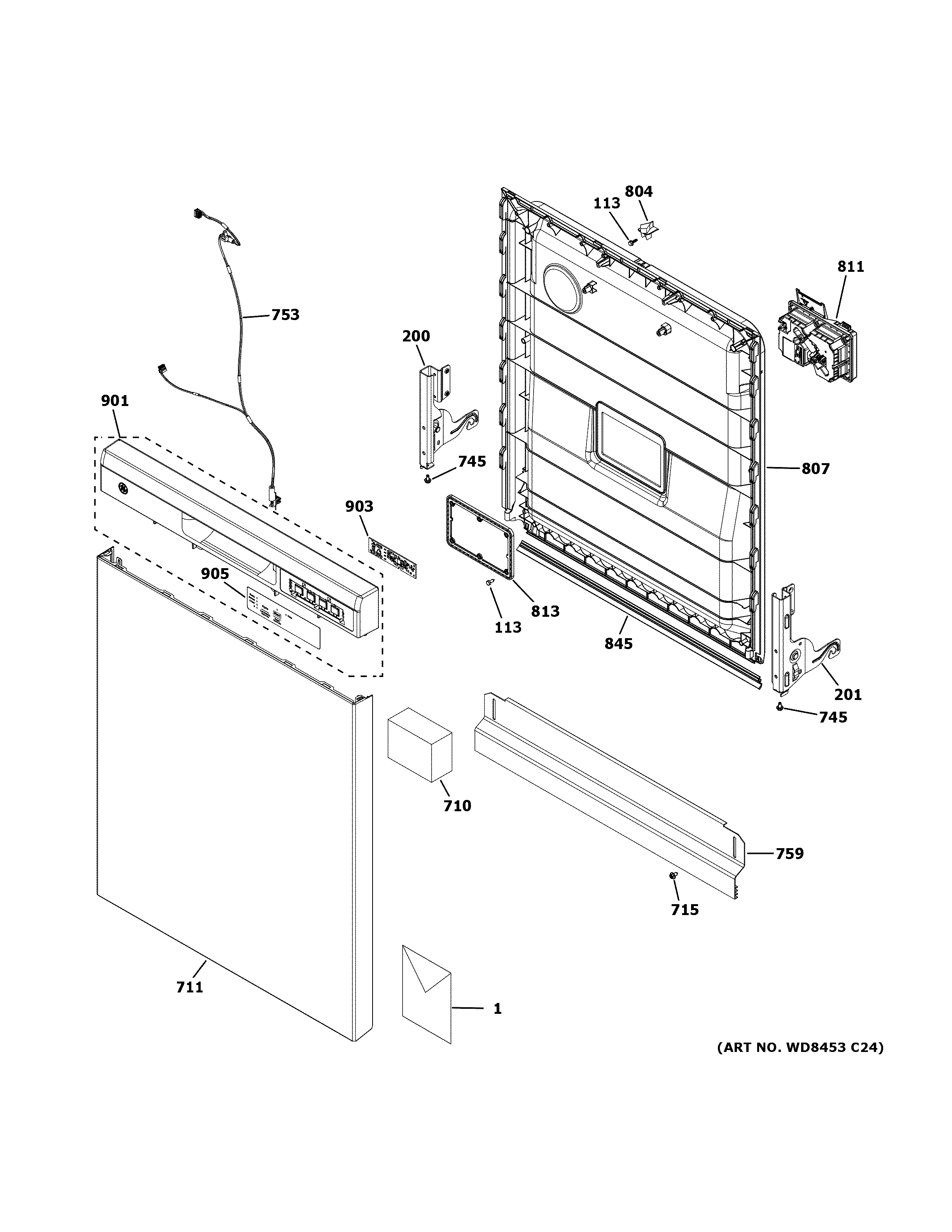

GDF460PGT6BB ESCUTCHEON & DOOR ASSEMBLY

GDF460PGT6BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF460PGT6BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1INSERT MINI MANUAL
1PM MINI MANUAL AND WIRING
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
710WD01X28007 GE Vent Spacer
711WD27X28040 GE Dishwasher Black Outer Service Door Pan
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32718 GE User Interface Harness
759BLACK TOE KICK
804WD13X10071 GE Dishwasher Door Strike
807WD27X28018 GE Dishwasher Inner Door Assembly Service
811DETERGENT MODULE
813WD12X10420 GE Dishwasher Detergent Plate
845WD08X21894 GE Dishwasher Door Gasket
901WD34X28025 GE Dishwasher Black Control Panel Assembly
903WD21X32561 GE Dishwasher Configured UI Control Board
905BLACK CONTROL PANEL OVERLAY
