GDF510PSM4SS BODY PARTS

GDF510PSM4SS BODY PARTS

Written by

in

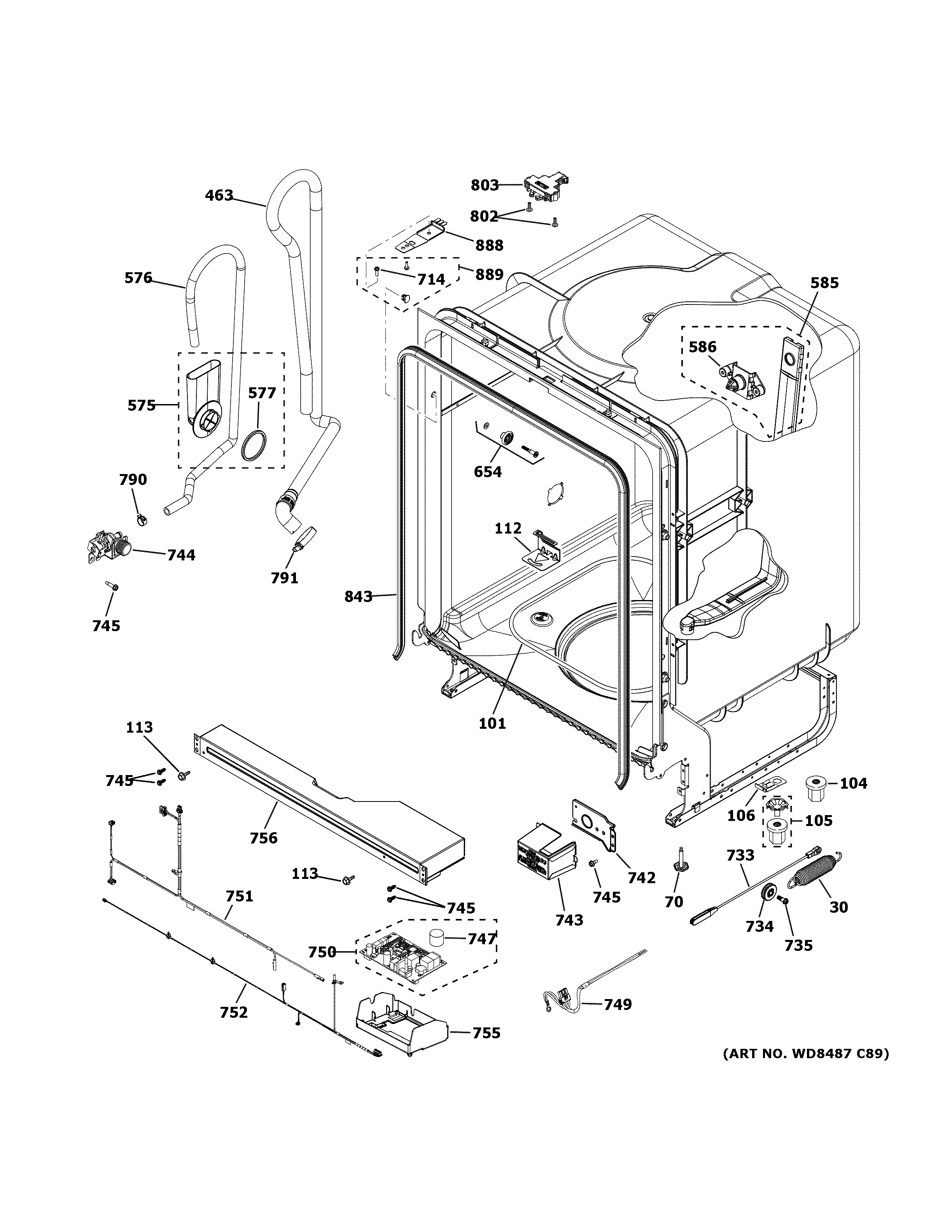

GDF510PSM4SS BODY PARTS

Products

PositionProduct
30WD03X20445 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
105WD02X28518 GE Dishwasher Heater Nut
106WD02X26579 GE Dishwasher Grounding Plate
112WD01X24381 GE Dishwasher Clip Heater Twist Lock
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
463WD24X29438 GE Dishwasher High Loop Drain Hose
575WD49X23818 GE Dishwasher Funnel Service Kit
576WD24X27659 GE Dishwasher Fill Funnel Hose
577WD08X23817 GE Dishwasher O-Ring
585WD12X32040 GE Main Conduit
586WD12X32039 GE Dishwasher Conduit Docking Port
654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly
714WD02X10160 GE Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
747WD21X25696 GE Dishwasher Fuse
749WD21X26318 GE Dishwasher Jumper Harness
750CNTRL BOARD CONFIGR SRVS MACHI
751WD21X32680 GE Dishwasher Ac Harness
752WD21X26859 GE Dishwasher Direct Connect Harness Assembly
755WD30X24239 GE Dishwasher Bottom Control Box
756WD27X32298 GE Control Box Assembly Top
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843GASKET TUB PLASTIC
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
