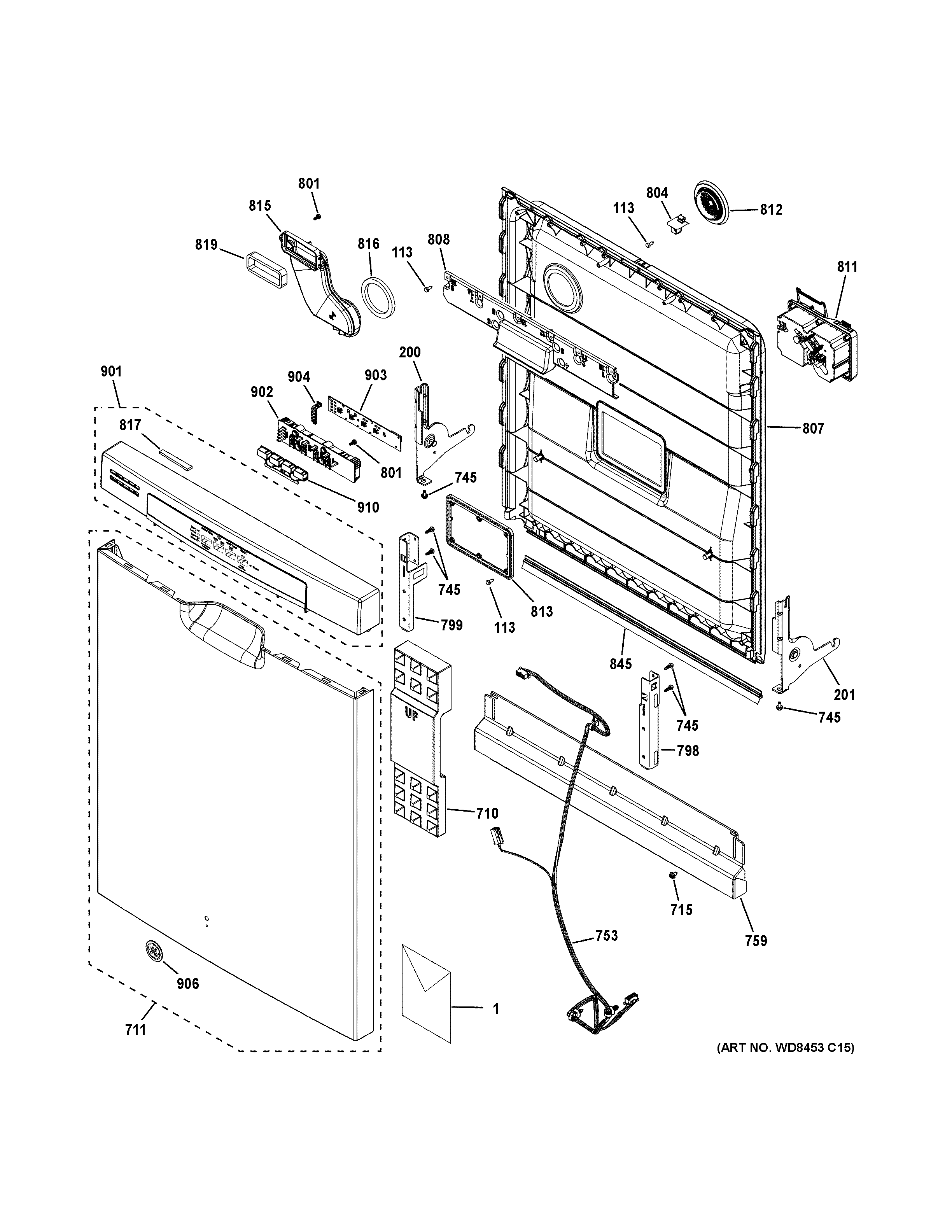

GDF511PSM0SS ESCUTCHEON & DOOR ASSEMBLY

GDF511PSM0SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF511PSM0SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM QUICK START GUIDE
1PM OWNERS MANUAL
1PM MINI-MANUAL
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
710WD01X10578 GE Dishwasher Foam Door Block
711WD34X25752 GE Dishwasher Stainless Outer Door Service
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X24389 GE Dishwasher Door Harness Assembly
759TOE KICK
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807WD31X24834 GE Dishwasher Inner Door Service Assembly
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
819GASKET VENT
845WD08X21894 GE Dishwasher Door Gasket
901WD34X24392 GE Dishwasher Control Panel Assembly Stainless Steel
902WD12X24390 GE Dishwasher Housing
903WD21X24820 GE Dishwasher Configured User Interface Control
904WD12X24398 GE Dishwasher Light Shield
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
910WD09X24378 GE Dishwasher Button Assembly
