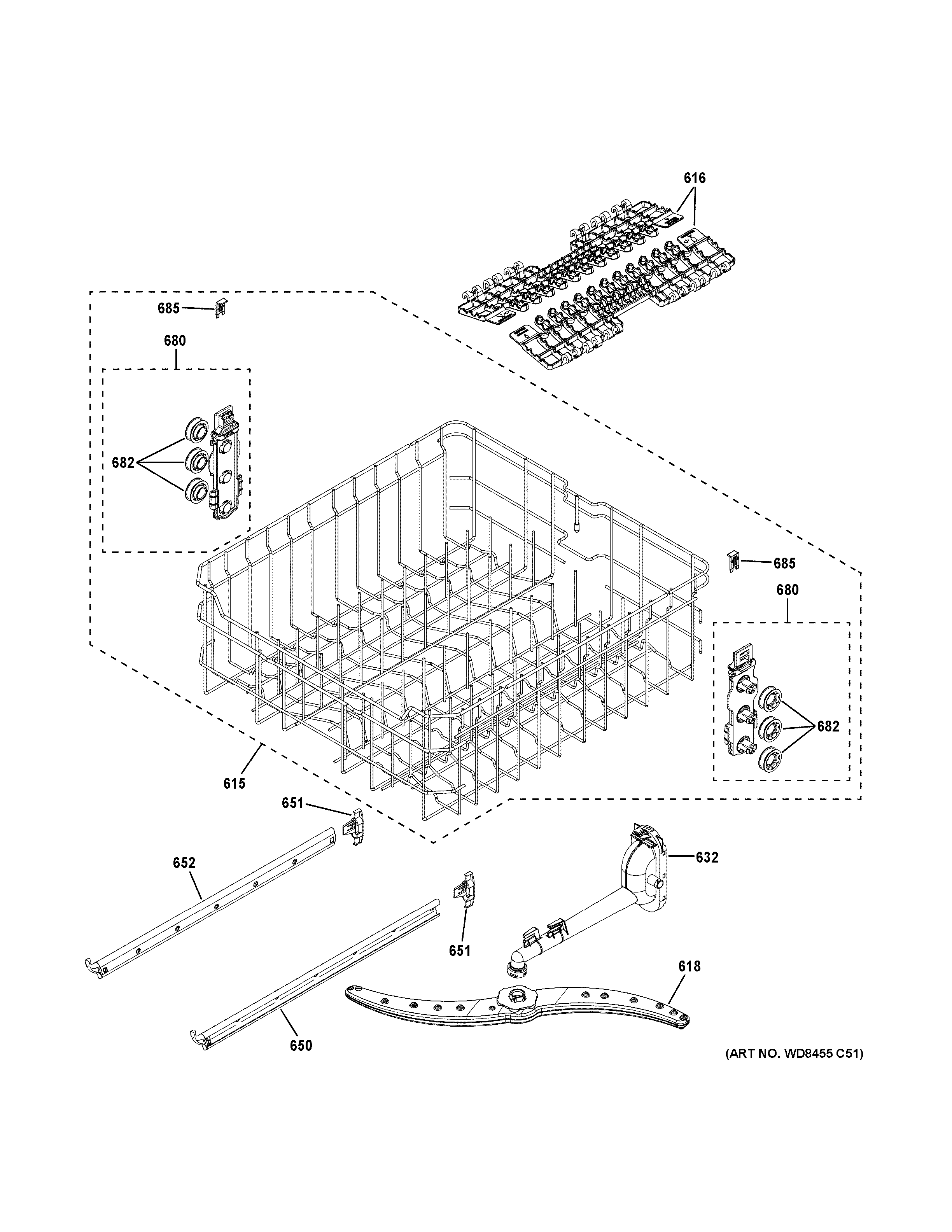

GDF530PGM4CC UPPER RACK ASSEMBLY

GDF530PGM4CC UPPER RACK ASSEMBLY

Written by

in

GDF530PGM4CC UPPER RACK ASSEMBLY

Products

PositionProduct
615UPPER RACK ASSEMBLY
616WD28X24827 GE Dishwasher Cup Shelf
618WD22X33498 GE Dishwasher Mid Spray Arm
632WD22X10094 GE Dishwasher Conduit Middle Assembly
650WD30X29859 GE Dishwasher Endcap and Rack Slide Right Hand
651END CAP
652WD30X29858 GE Dishwasher Left Hand Endcap and Rack Slide
680WD12X22801 GE Dishwasher Dishrack Roller
682WD12X27578 GE Dishwasher Rack Roller
685WD12X10430 GE Dishwasher Clip Bracket
