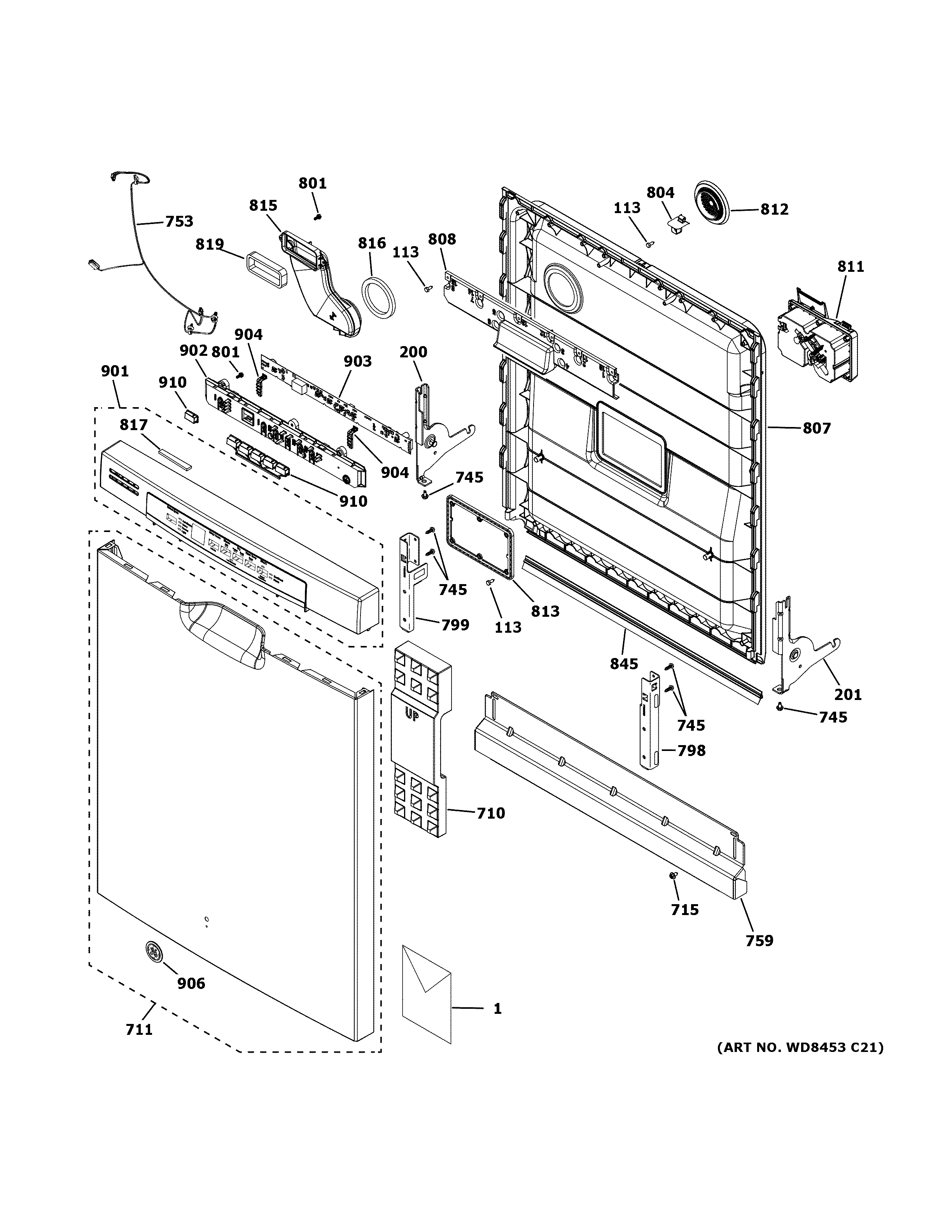

GDF530PSM5SS ESCUTCHEON & DOOR ASSEMBLY

GDF530PSM5SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF530PSM5SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
1PM QUICK START GUIDE
1PM OWNERS MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
710WD01X10578 GE Dishwasher Foam Door Block
711WD34X25752 GE Dishwasher Stainless Outer Door Service
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X26060 GE Dishwasher UI Harness Assembly
759TOE KICK
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807WD31X24834 GE Dishwasher Inner Door Service Assembly
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD12X26044 GE Dishwasher Air Diverter Assembly
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
819GASKET VENT
845WD08X21894 GE Dishwasher Door Gasket
901WD34X25532 GE Dishwasher Control Panel Assembly
902WD12X24415 GE Dishwasher UI Board Housing
903WD21X28004 GE Dishwasher Configured Service 8 Button
904WD12X24398 GE Dishwasher Light Shield
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
910WD09X25531 GE Dishwasher Button Tree
