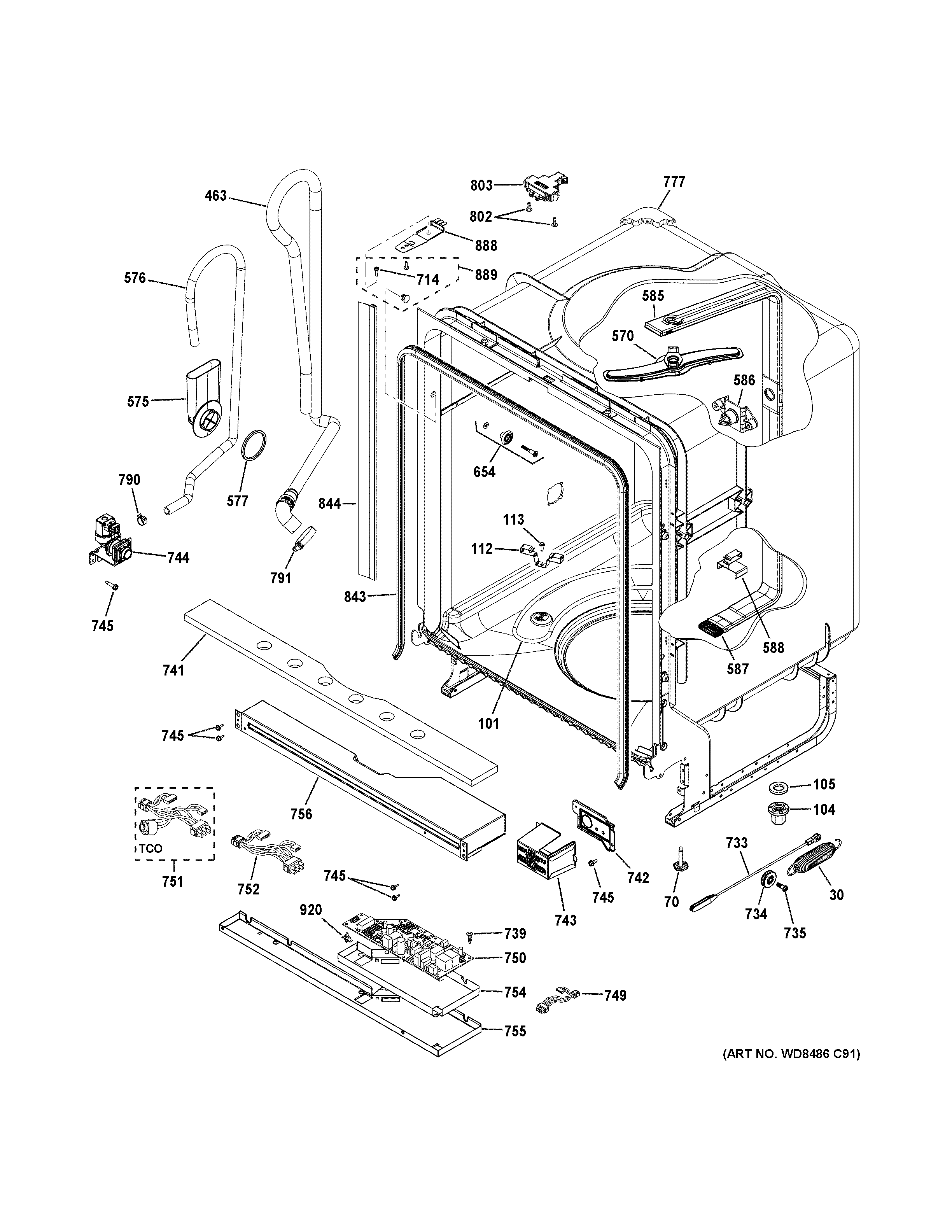

GDF540HSD0SS BODY PARTS

GDF540HSD0SS BODY PARTS

Written by

in

GDF540HSD0SS BODY PARTS

Products

PositionProduct
30SPRING DOOR
30WD03X20446 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
105GEN WD01X1168
112SUPPORT HEATER
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
463HIGH LOOP DRAIN HOSE
570WD35X20794 GE Dishwasher Upper Wash Arm Assembly
576WD24X27659 GE Dishwasher Fill Funnel Hose
577WD12X22158 GE Dishwasher Fill Funnel Assembly
585CONDUIT MAIN ASM
586WD12X32039 GE Dishwasher Conduit Docking Port
587WD08X10098 GE Dishwasher Conduit Seal
588SHIELD CONDUIT
654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly
714WD02X10160 GE Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD02X10206 GE Dishwasher Pulley Screw
739WZ5X158D GE Screw Package of 12
741WD01X22620 GE Dishwasher Insulation Bottom Front
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WD15X10015 GE Dishwasher Water Inlet Valve
745SCR 10-32 TT HXW 14/25 S
749HARNESS ASM JUMPER
750WD21X22276 GE Dishwasher Control Board Kit
751WD49X23779 GE Dishwasher Wash Pump Kit
752HARNESS ASM DC
754SHIELD DIELECTRIC
755WD30X21714 GE Dishwasher Bottom Control Box
756WD27X10390 GE Dishwasher Control Box
777INSULATION TUB BLANKET
790WH1X2036 GE UNIX Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10065 GE Screw
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843GASKET TUB PLASTIC
844WD01X29479 GE Dishwasher Black Tub Trim
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
920WD01X21975 GE Dishwasher Control Board Clip
