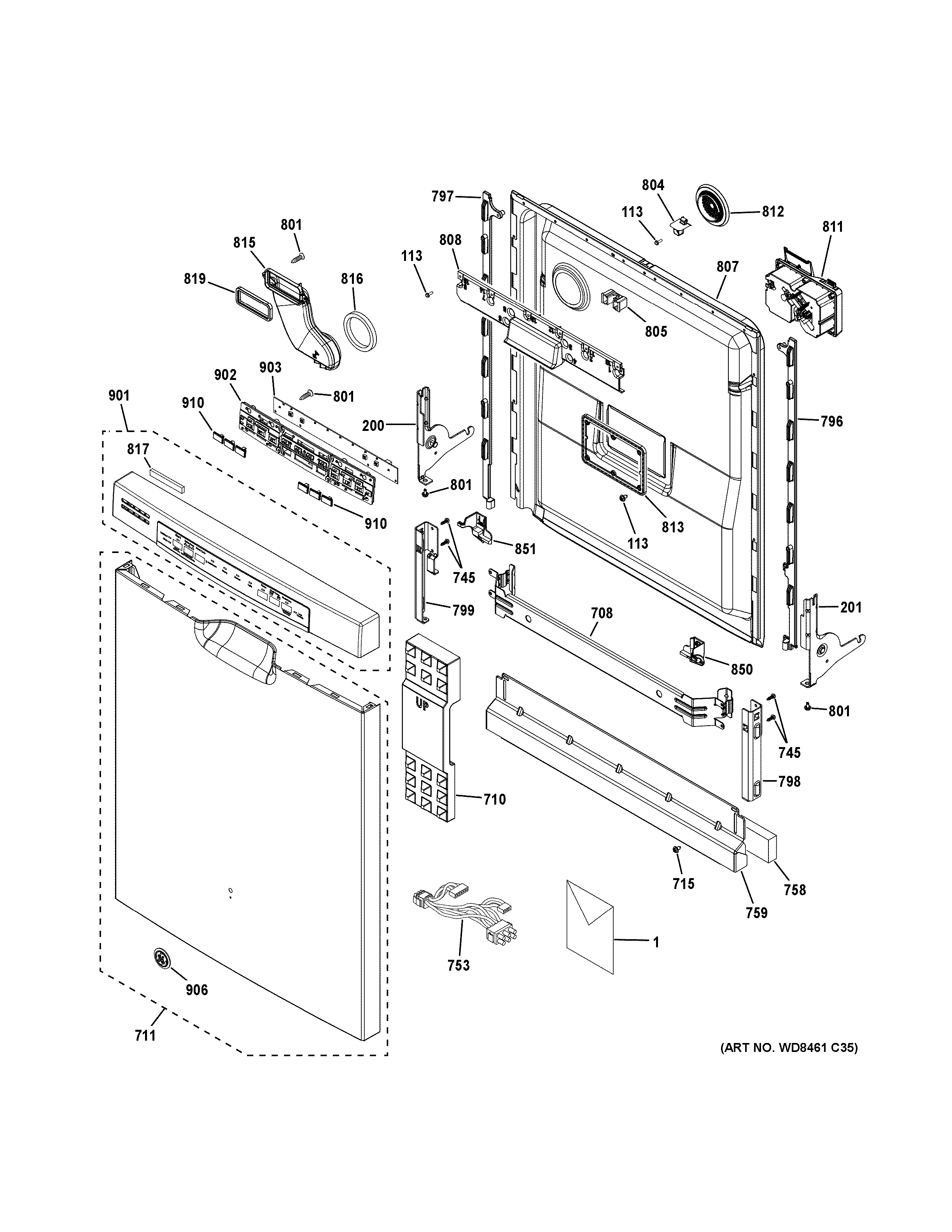

GDF540HSF4SS ESCUTCHEON & DOOR ASSEMBLY

GDF540HSF4SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF540HSF4SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM MINI-MANUAL
1INSERT MINI MANUAL
1SCR 1/4-20 BT CB .563 ZN
1PM INSTALL INSTRUCTIONS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
201ARM HINGE ASM RH
708WD30X10045 GE Dishwasher Door Brace Assembly
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X25752 GE Dishwasher Stainless Outer Door Service
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745SCR 10-32 TT HXW 14/25 S
753WD21X10544 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798BRACKET SUPPORT HINGE
799WD35X20486 GE Dishwasher Hinge Assembly Kit
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807DOOR INNER SS
808WD12X10422 GE Dishwasher Handle Pocket
811DETERGENT MODULE
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X10100 GE Front Control Foam Backing
850WD12X22540 GE Dishwasher Right Hand Door Trim
851WD12X22541 GE Dishwasher Door Trim Left Hand
901PANEL CONTROL ASM
902WD12X10449 GE Dishwasher Silicone Light Pipe
903CONFIGURED UI BOARD
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
910WD09X20131 GE Dishwasher Painted Button Tree
