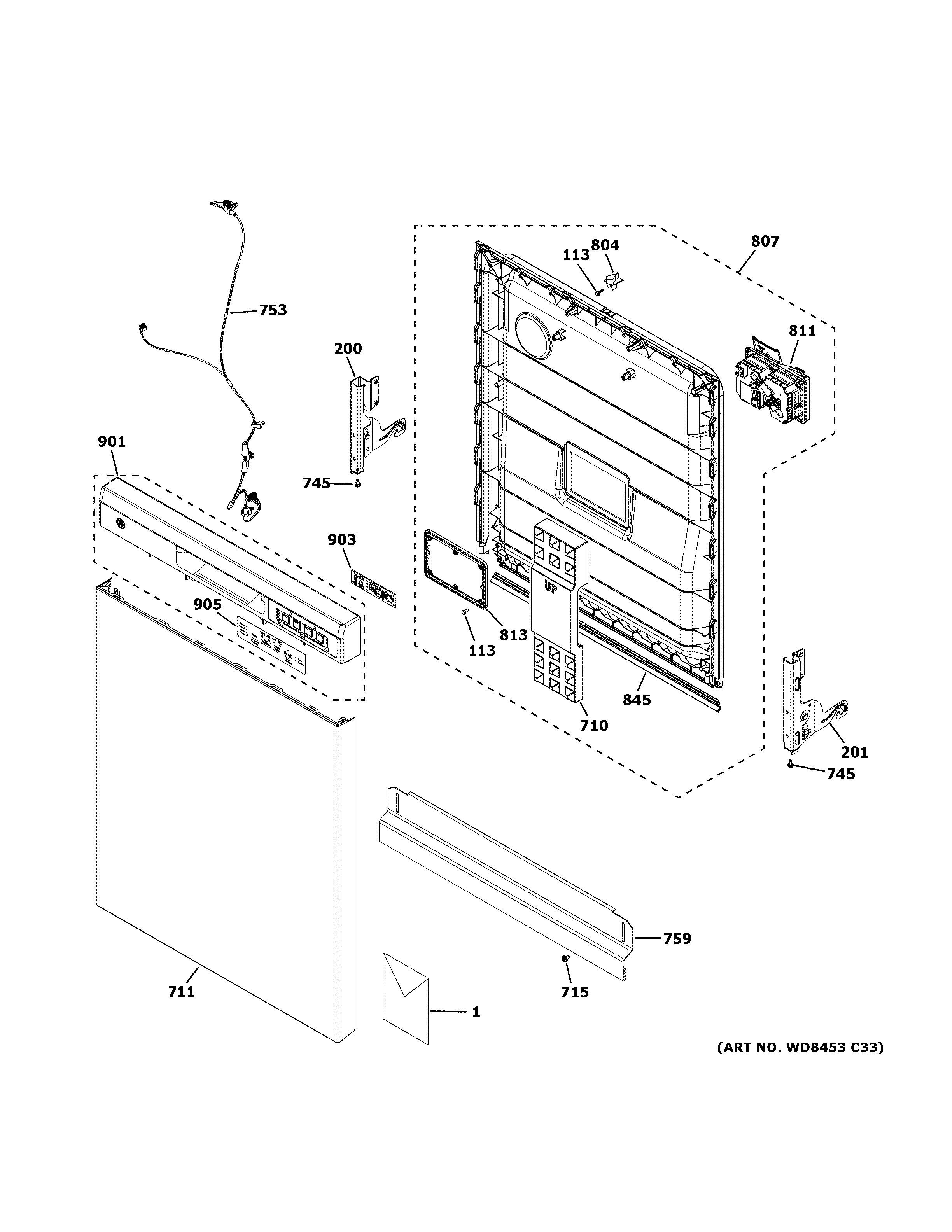

GDF550PGR0BB ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T08:40:26+00:00GDF550PGR0BB ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1INSERT MINI MANUAL1PM QUICK OWNERS MANUAL1PM INSTALL INSTRUCTIONS1PM MINI MANUAL AND WIRING1PM OWNERS MANUAL113WD01X27719 GE Screw PL HXW 8-18 1/2200WD01X27721 GE Dishwasher Door Hinge Assembly Left201WD01X27720 GE Dishwasher Door Hinge Assembly Right710WD01X28006 GE Dishwasher Door Foam Block711BLACK OUTER DOOR PANEL715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S753WD21X32718 GE User Interface Harness759BLACK TOE KICK804WD13X10071 GE Dishwasher Door Strike807WD27X30582 GE Dishwasher Inner Door811DETERGENT MODULE813WD12X10420 GE Dishwasher Detergent Plate845WD08X21894 GE Dishwasher Door Gasket901WD34X30349 GE Control Panel Black903WD21X33546 GE Configured Ui Control Board905WD34X29838 GE Dishwasher Black Control Panel Overlay
