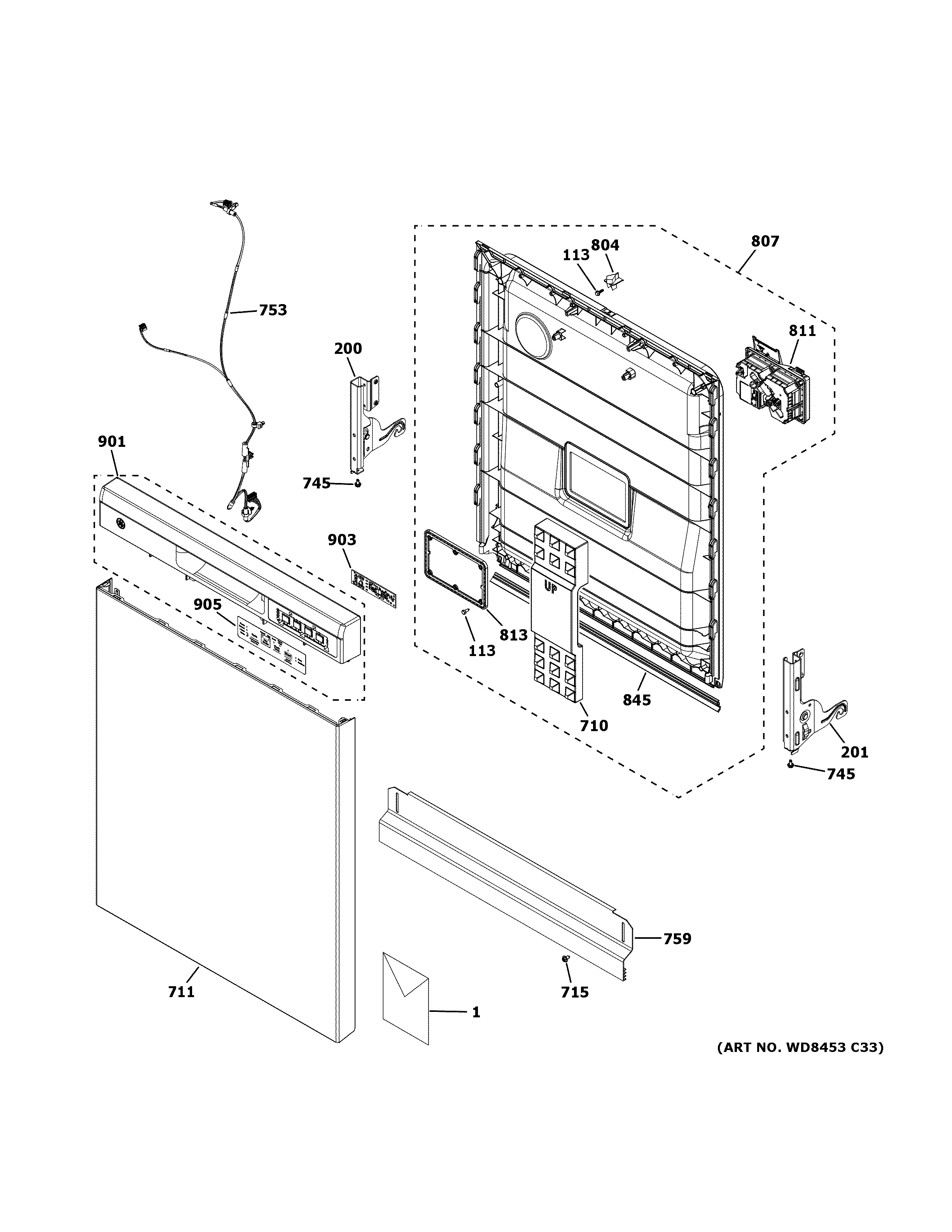

GDF550PGR6WW ESCUTCHEON & DOOR ASSEMBLY

GDF550PGR6WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF550PGR6WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1INSERT MINI MANUAL
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
710WD01X28006 GE Dishwasher Door Foam Block
711WHITE OUTER DOOR PANEL
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X27698 GE Dishwasher UI Harness Assembly
759WD27X27840 GE Dishwasher White Toekick
804WD13X10071 GE Dishwasher Door Strike
807WD27X30582 GE Dishwasher Inner Door
811DETERGENT MODULE
813WD12X10420 GE Dishwasher Detergent Plate
845WD08X21894 GE Dishwasher Door Gasket
901WD34X30351 GE White Control Panel
903WD21X33546 GE Configured Ui Control Board
905WD34X29860 GE Dishwasher Control Panel Overlay White
