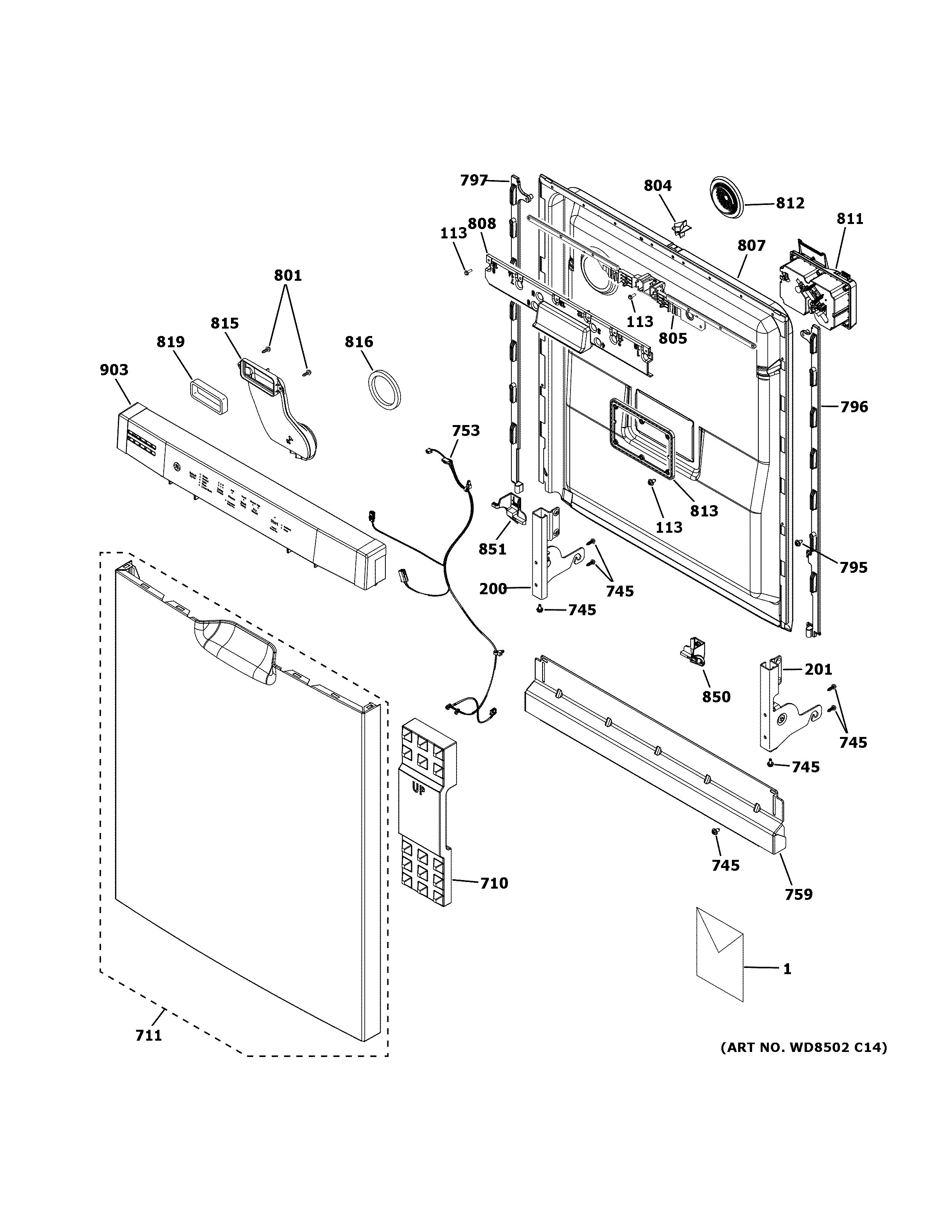

GDF565SSN0SS ESCUTCHEON & DOOR ASSEMBLY

GDF565SSN0SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF565SSN0SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM QUICK OWNERS MANUAL
1PM OWNERS MANUAL
1PM MINI MANUAL AND WIRING
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
710WD01X10585 GE Dishwasher Door Foam Block
711STAINLESS STEEL OUTER DOOR ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X25541 GE Door Assembly Harness
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29644 GE Dishwasher Inner Door
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X26044 GE Dishwasher Air Diverter Assembly
816DOOR VENT SEAL
819GASKET VENT
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
903WD21X27483 GE Dishwasher Configured Front UI Control
