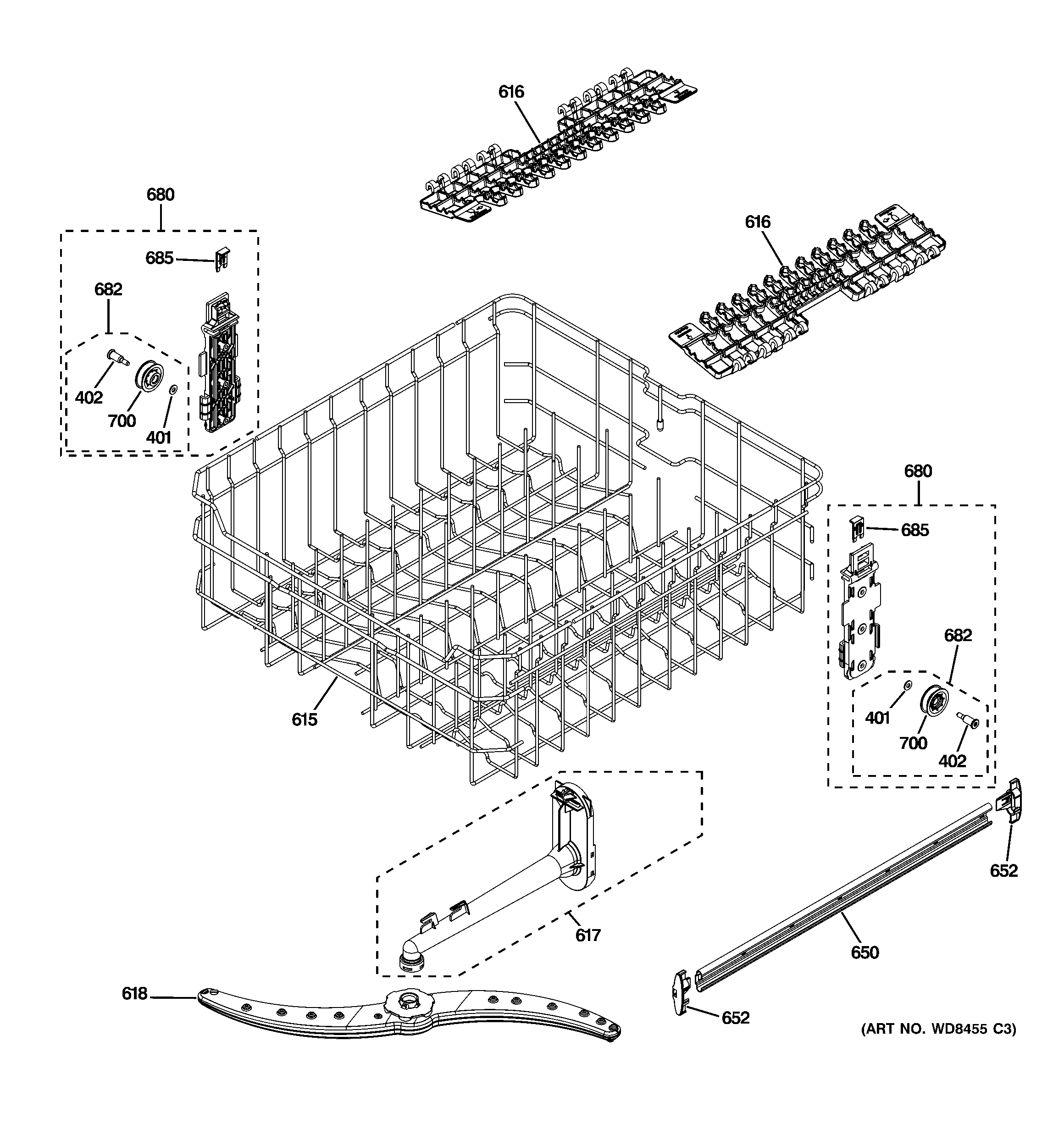

GDF570SGD0BB UPPER RACK ASSEMBLY

GDF570SGD0BB UPPER RACK ASSEMBLY

Written by

in

GDF570SGD0BB UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
402SCR 10-16 B 9/20 SS
615SERIVICE KIT UPPER RACK
616WD28X10350 GE Dishwasher Shelf Cup
617WD22X10094 GE Dishwasher Conduit Middle Assembly
618WD22X33498 GE Dishwasher Mid Spray Arm
650WD30X24251 GE Dishwasher Slide Rack
652END CAP
680WD12X22801 GE Dishwasher Dishrack Roller
682UPP RACK ROLLER STUD ASM
685WD12X10430 GE Dishwasher Clip Bracket
700ROLLER UPPER RACK
