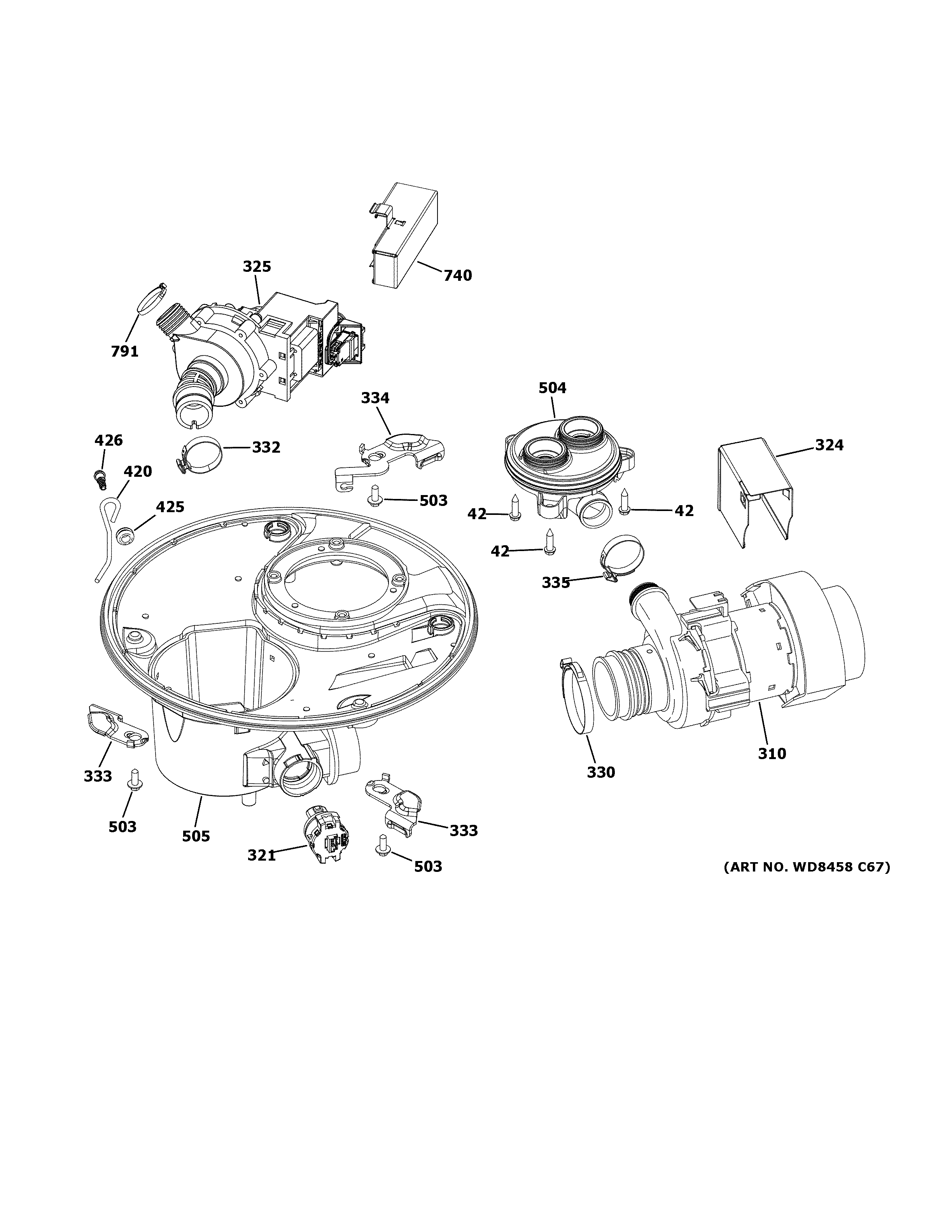

GDF570SGF7BB SUMP & MOTOR MECHANISM

GDF570SGF7BB SUMP & MOTOR MECHANISM

Written by

in

GDF570SGF7BB SUMP & MOTOR MECHANISM

Products

PositionProduct
42SCREW #8-3/4 L HX HD SS
310WD26X23258 GE Dishwasher Circulation Pump
321TURBIDITY SENSOR ASSY
324WD01X10580 GE Dishwasher Wash Pump Shield
325SINGLE SPEED DRAIN PUMP KIT
330WD35X10382 GE Dishwasher Piranha Clamps Kit
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
420WD01X25218 GE Dishwasher Drain Pump Hanger
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504WD18X21754 GE Dishwasher Diverter Assembly Kit
505WD18X10055 GE Dishwasher Sump Manifold
740WD01X10584 GE Dishwasher Drain Pump Shield
791WD01X24246 GE Dishwasher Clamp
