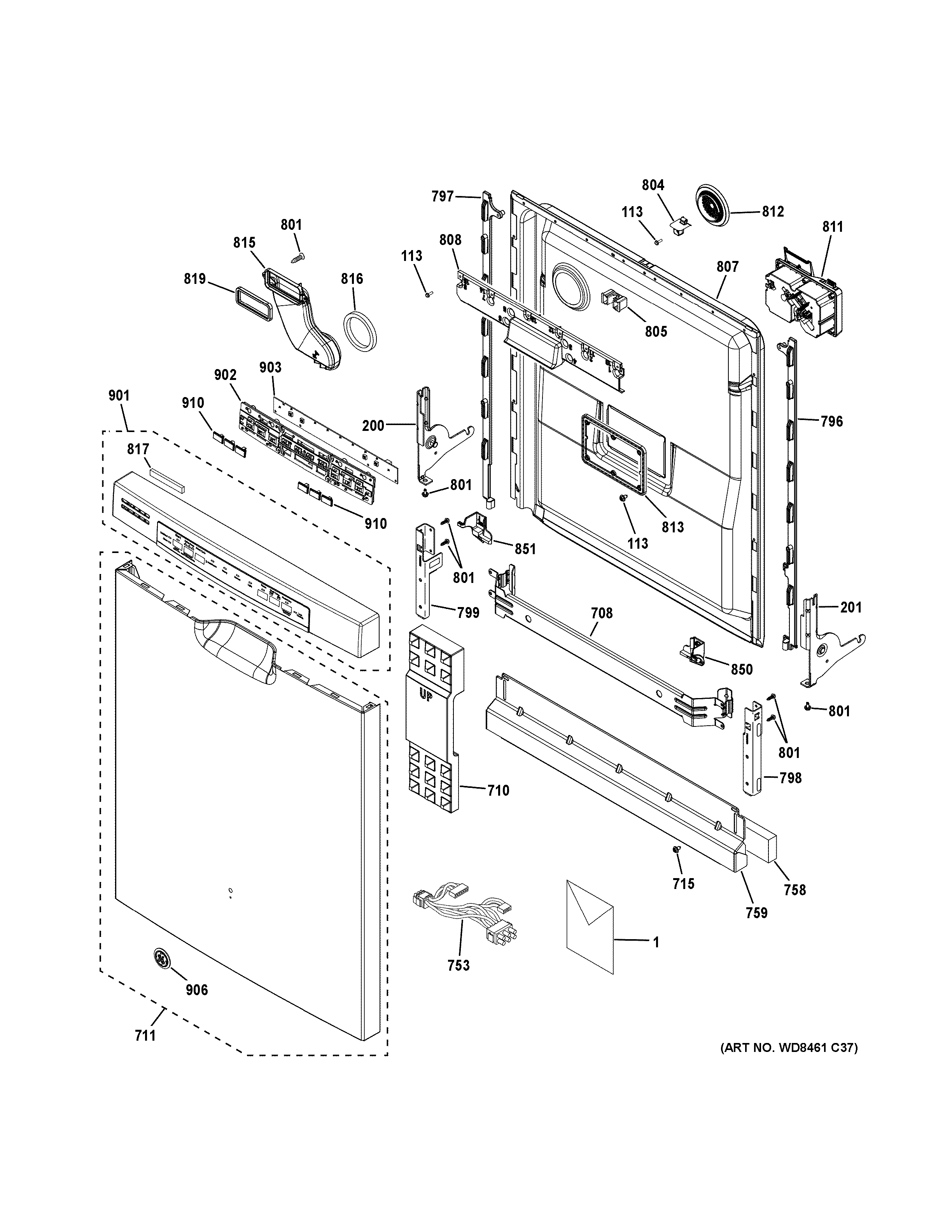

GDF570SSF2SS ESCUTCHEON & DOOR ASSEMBLY

GDF570SSF2SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF570SSF2SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM MINI-MANUAL
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20129 GE Dishwasher Left Door Hinge Assembly
201WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
708WD30X10045 GE Dishwasher Door Brace Assembly
710WD01X10585 GE Dishwasher Door Foam Block
711WD27X24844 GE Dishwasher Stainless Steel Outer Door
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
753WD21X20125 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22513 GE Dishwasher Hinge Support Bracket
799WD01X22512 GE Dishwasher Hinge Support Bracket
801WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807DOOR INNER SS
807WD31X29639 GE Dishwasher Inner Door
808WD12X10422 GE Dishwasher Handle Pocket
811DETERGENT MODULE
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
850WD12X22540 GE Dishwasher Right Hand Door Trim
851WD12X22541 GE Dishwasher Door Trim Left Hand
901PANEL CONTROL ASM
902WD12X10449 GE Dishwasher Silicone Light Pipe
903WD21X10551 GE Dishwasher Front Logic UI Service Kit
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
910WD09X20131 GE Dishwasher Painted Button Tree
