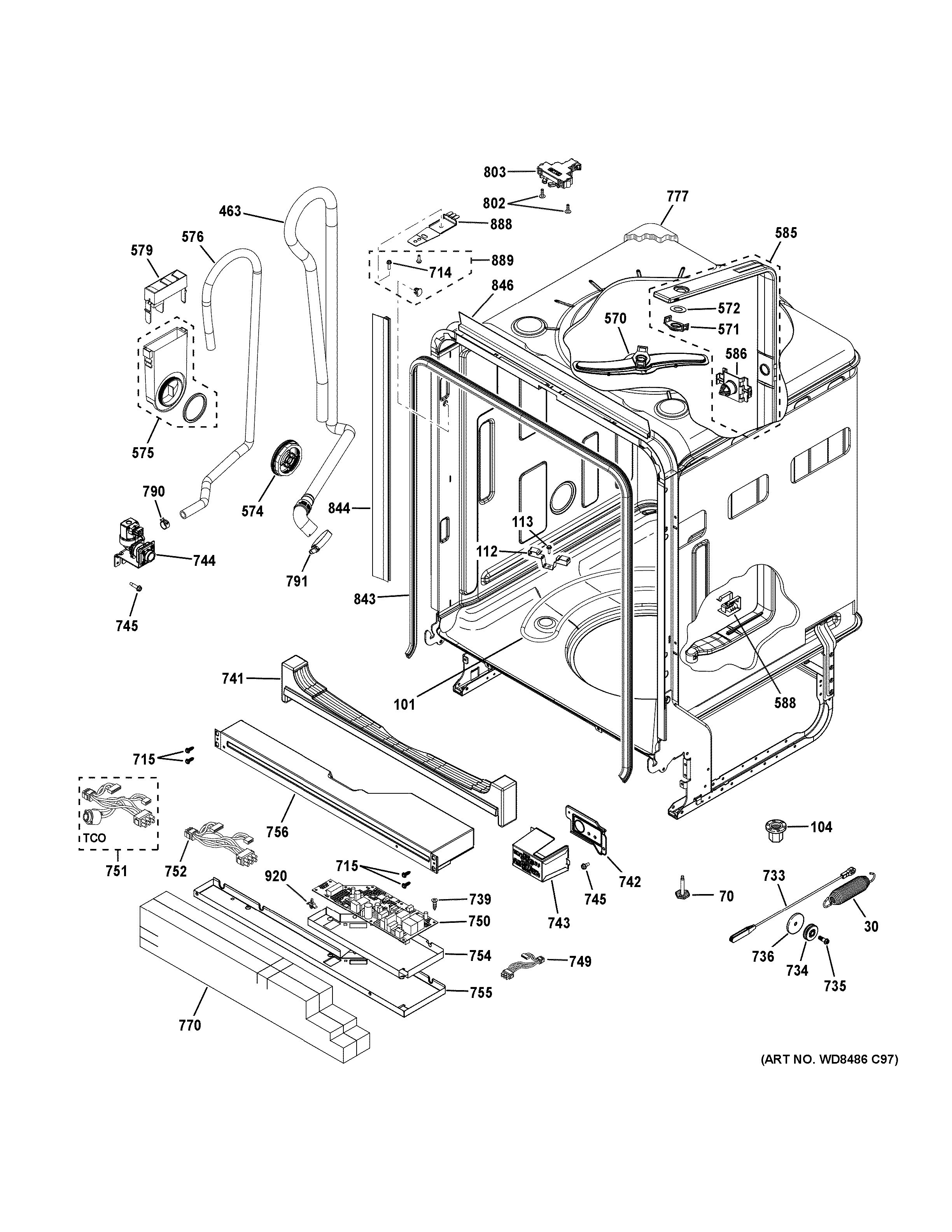

GDF570SSF8SS BODY PARTS

GDF570SSF8SS BODY PARTS

Written by

in

GDF570SSF8SS BODY PARTS

Products

PositionProduct
30WD03X20446 GE Dishwasher Door Spring
30WD03X20445 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
112SUPPORT HEATER SS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
463HIGH LOOP DRAIN HOSE
570WD22X22501 GE Dishwasher Upper Spray Arm Assembly
571WD12X22503 GE Dishwasher Upper Spray Arm
572WD08X22502 GE Dishwasher Gasket Upper Spray Arm
574WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10064 GE Dishwasher Fill Hose
579WD12X20834 GE Dishwasher Fill Funnel Cap
585WD12X22783 GE Dishwasher Conduit Spray Main Assembly
586WD12X20118 GE Dishwasher Docking Port Stainless Steel
588WD01X23982 GE Dishwasher Conduit Clip
714WD02X10160 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
739WZ5X158D GE Screw Package of 12
741WD01X23558 GE Dishwasher Front Tub Spacer
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE AND HARNESS SE
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
749WD21X23559 GE Dishwasher Wire Harness
750SERVICE MACHINE CONTROL
751WD21X22616 GE Dishwasher AC Harness Assembly
752WD21X20124 GE Dishwasher Harness Assembly Direct Connect
754WD01X21974 GE Dishwasher Dielectric Shield
755WD30X21714 GE Dishwasher Bottom Control Box
756WD27X10390 GE Dishwasher Control Box
770WD01X21775 GE Dishwasher Bag Insulation Assembly
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843WD08X22095 GE Dishwasher Tub Gasket
844WD01X31618 GE Dishwasher Tub Trim Kit
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
920WD01X21975 GE Dishwasher Control Board Clip
