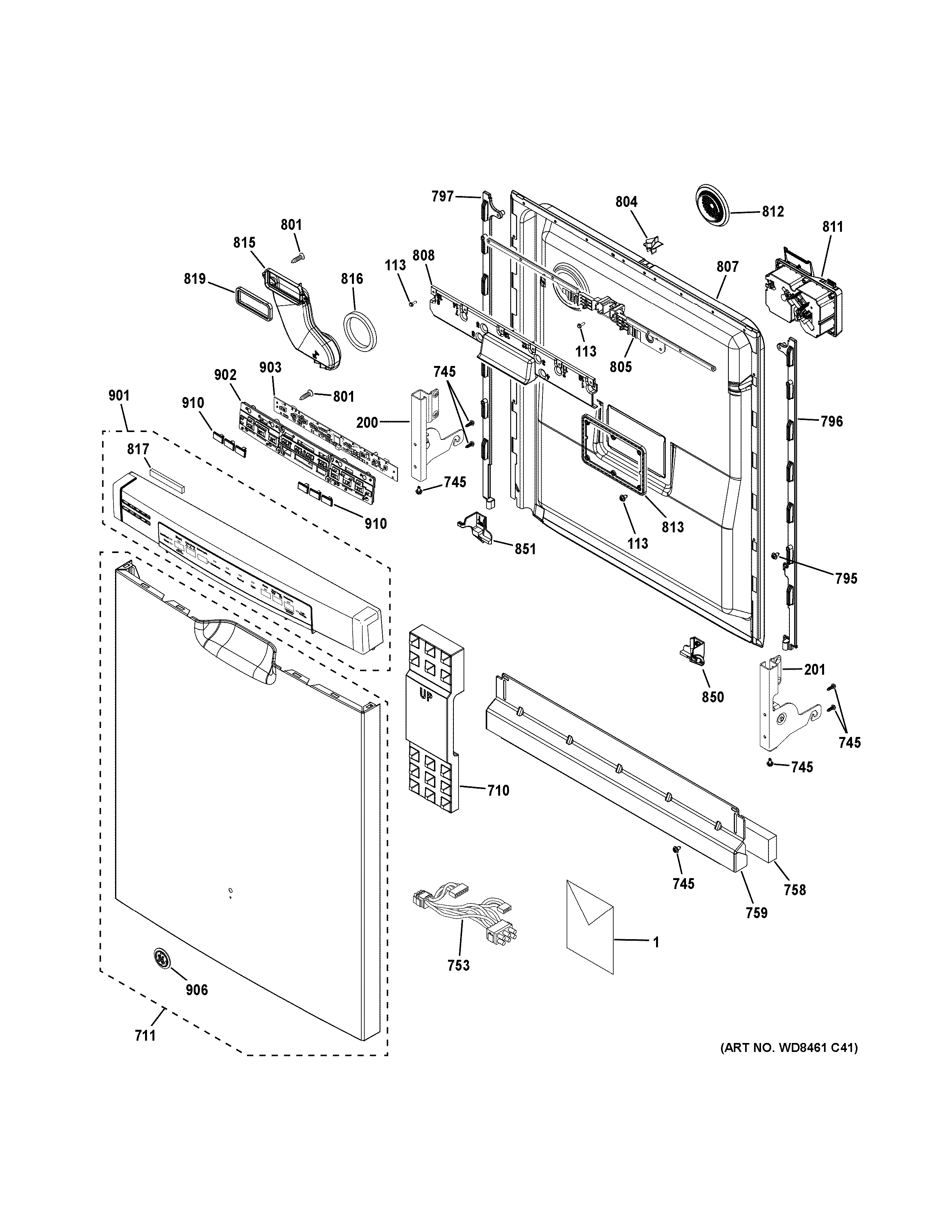

GDF570SSJ4SS ESCUTCHEON & DOOR ASSEMBLY

GDF570SSJ4SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF570SSJ4SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1INSERT MINI MANUAL
1PM MINI-MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X25752 GE Dishwasher Stainless Outer Door Service
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X20125 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29644 GE Dishwasher Inner Door
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
819GASKET VENT
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
901WD34X22259 GE Dishwasher Control Panel
902WD12X10449 GE Dishwasher Silicone Light Pipe
903CONFIGURED UI BOARD
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
910WD09X20131 GE Dishwasher Painted Button Tree
