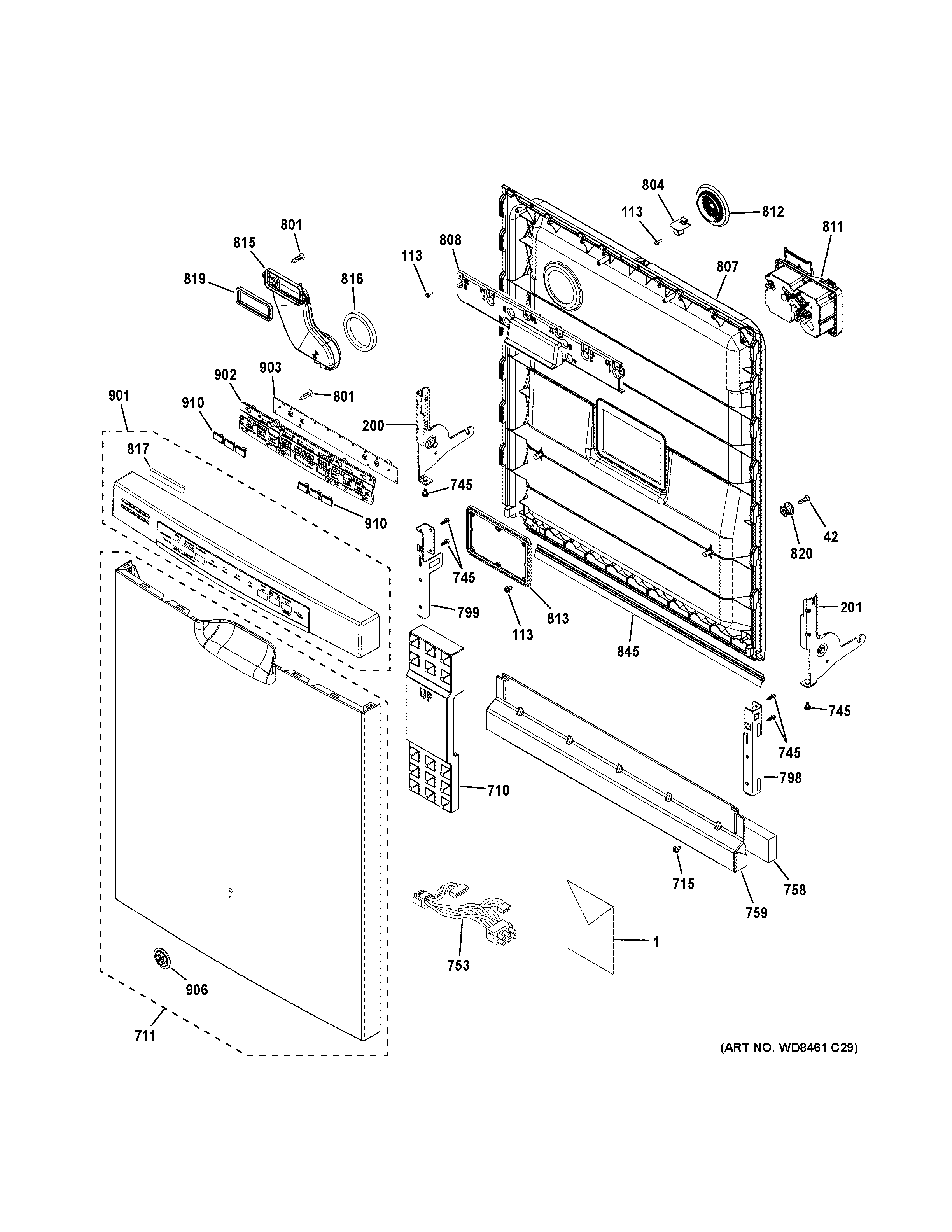

GDF610PGJ6WW ESCUTCHEON & DOOR ASSEMBLY

GDF610PGJ6WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF610PGJ6WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1PM MINI-MANUAL
42SCREW #8-3/4 L HX HD SS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20129 GE Dishwasher Left Door Hinge Assembly
201WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
710WD01X10578 GE Dishwasher Foam Door Block
711WD34X25746 GE Dishwasher White Outer Door Service Assembly
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X10545 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759WD27X26120 GE Dishwasher White Toekick Assembly
798WD01X22513 GE Dishwasher Hinge Support Bracket
799WD01X22512 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807WD27X29398 GE Inner Door
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
819GASKET VENT
820WD01X21977 GE Dishwasher Door Mounting Basket
845WD08X21894 GE Dishwasher Door Gasket
901WD34X22155 GE Dishwasher Control Panel Assembly
902WD12X22778 GE Dishwasher Silicone Light Pipe
903WD21X31902C-includeCORE GE WD21X31902C Dishwasher Configured UI Board with Core
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
9108 BUTTON TREE
