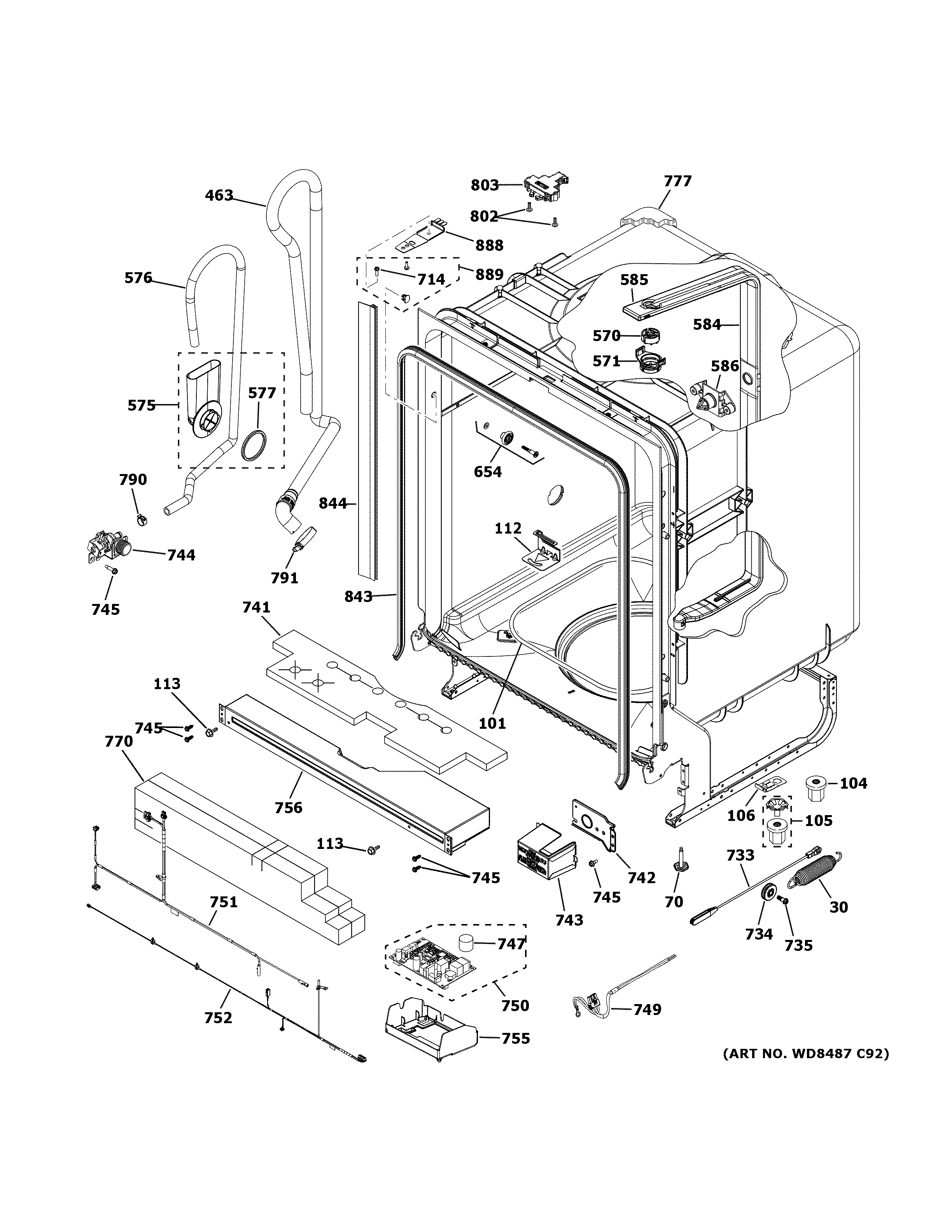

GDF630PSM4SS BODY PARTS (1)admin2025-04-26T10:06:39+00:00GDF630PSM4SS BODY PARTS (1) ProductsPositionProduct30WD03X20445 GE Dishwasher Door Spring70WD02X31882 GE Leveling Leg101HEATING ELEMENT104WD01X10070 GE Dishwasher Nut105WD02X28518 GE Dishwasher Heater Nut106WD02X26579 GE Dishwasher Grounding Plate112WD01X24381 GE Dishwasher Clip Heater Twist Lock113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW463WD24X29438 GE Dishwasher High Loop Drain Hose570WD22X20689 GE Dishwasher Impeller571WD22X20688 GE Dishwasher Hub575WD49X23818 GE Dishwasher Funnel Service Kit576WD24X27659 GE Dishwasher Fill Funnel Hose577WD08X23817 GE Dishwasher O-Ring584WD12X25680 GE Dishwasher Main Conduit585WD12X32041 GE Main Conduit586WD12X32039 GE Dishwasher Conduit Docking Port654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly714WD02X10160 GE Screw733WD01X10569 GE Dishwasher Door Cable734WD16X21836 GE Dishwasher Pulley735WD01X21837 GE Dishwasher Screw 10-32741INSULATION BOTTOM FRONT742WD12X25060 GE Junction Box Bracket Assembly743WD12X10412 GE Dishwasher Wiring Cover744WATER VALVE ASM745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S747WD21X25696 GE Dishwasher Fuse749WD21X26318 GE Dishwasher Jumper Harness750CNTRL BOARD CONFIGR SRVS MACHI751WD21X32680 GE Dishwasher Ac Harness752WD21X26860 GE Dishwasher Direct Connect Harness Assembly755WD30X24239 GE Dishwasher Bottom Control Box756WD27X32298 GE Control Box Assembly Top770WD30X28098 GE Dishwasher Insulation Bag Assembly777TUB INSULATION790WD01X22786 GE Dishwasher Hose Clamp791WD01X24246 GE Dishwasher Clamp802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8803WD21X10490 GE Dishwasher Standard Tub Side Door Latch843GASKET TUB PLASTIC844WD01X29479 GE Dishwasher Black Tub Trim888WD01X21740 GE Dishwasher Countertop Mounting Bracket889CT SCREW ASM
