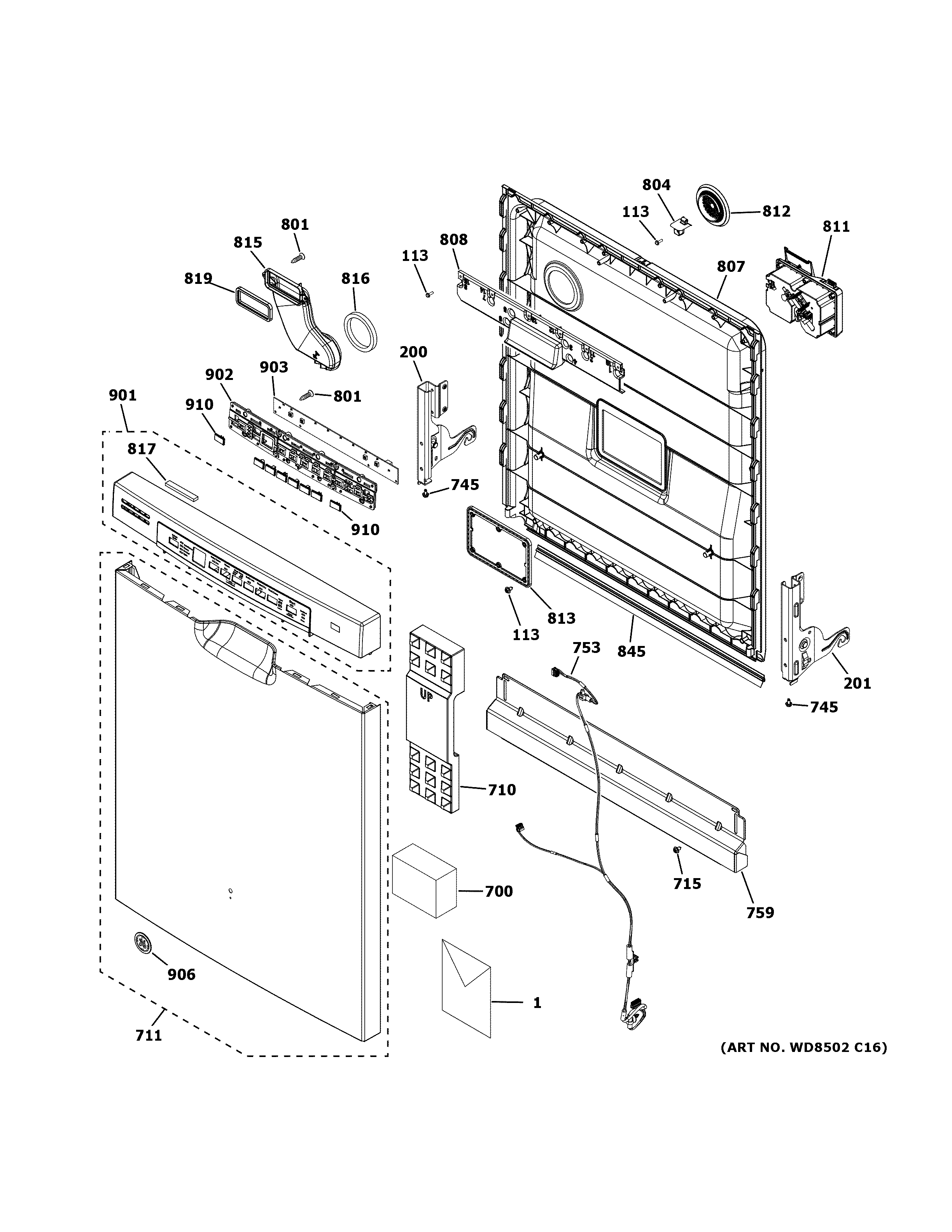

GDF630PSM6SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
1PM INSTALL INSTRUCTIONS
1PM QUICK OWNERS MANUAL
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
700WD01X28007 GE Vent Spacer
710WD01X10578 GE Dishwasher Foam Door Block
711STAINLESS STEEL OUTER DOOR PANEL
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X26060 GE Dishwasher UI Harness Assembly
759TOE KICK
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807INNER DOOR ASM
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD12X26044 GE Dishwasher Air Diverter Assembly
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
819GASKET VENT
845WD08X21894 GE Dishwasher Door Gasket
901WD34X25439 GE Dishwasher Silver Control Panel Assembly
902WD12X25241 GE Dishwasher UI Board Housing
903WD21X28001 GE Configured Service 8 Butons Ui
906WR04X29375 GE Refrigerator GEA Badge Flat Chrome
910WD09X25440 GE Dishwasher Silver Painted 8 Button TRE
