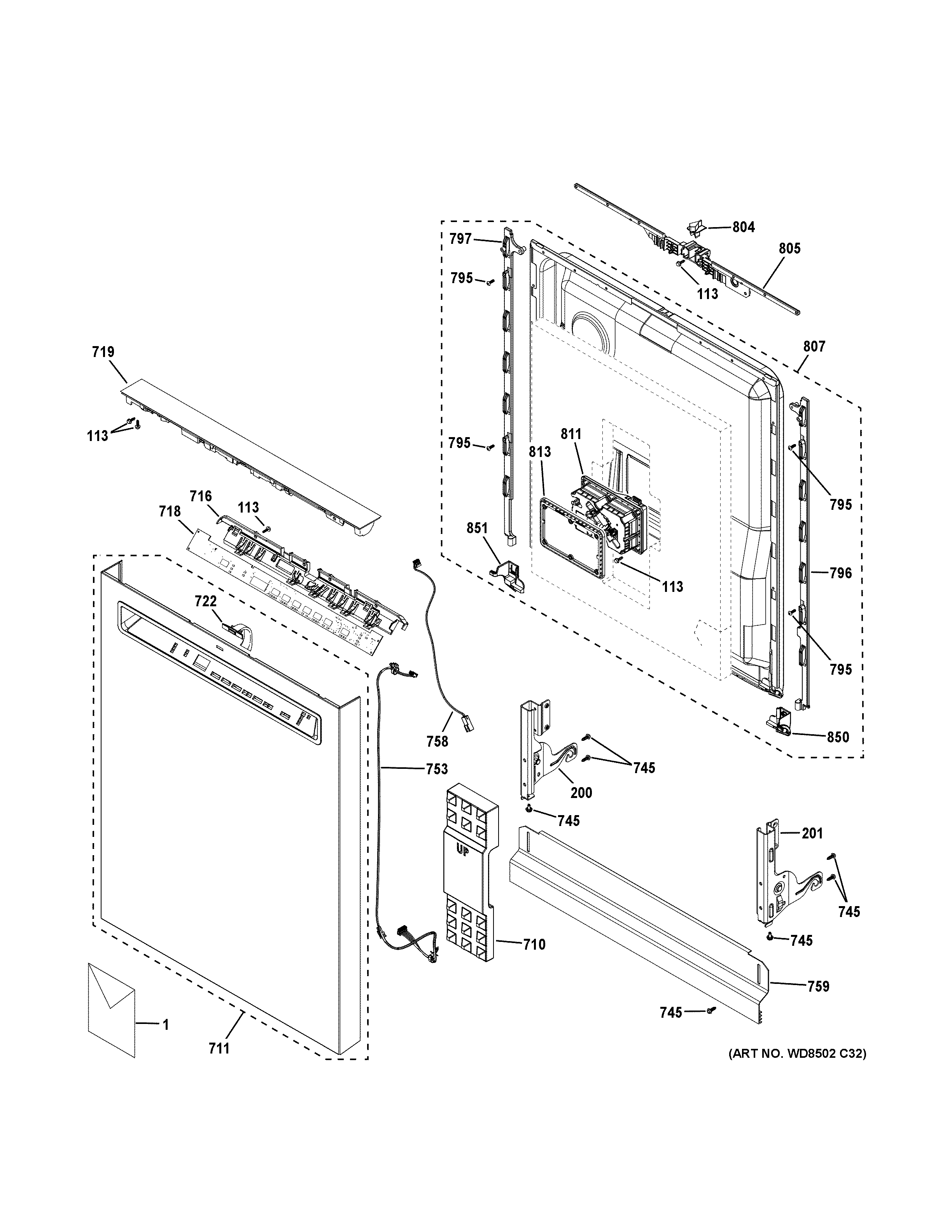

GDF670SYV0FS ESCUTCHEON & DOOR ASSEMBLY

GDF670SYV0FS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF670SYV0FS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1INSERT MINI MANUAL
1PM OWNERS AND INSTALL
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
710WD01X29918 GE Door Foam Block
711WD27X33118 GE Dishwasher Stainless Outer Door Panel
716WD01X32923 GE Handle Bracket Pocket
718WD21X33700 GE Control Board User Interface Assembly
719WD34X33758 GE Console Cover and Bracket
722DOOR LENS
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X32920 GE Dishwasher UI Board Harness
758WD21X33005 GE Dishwasher Detergent Module Harness
759BLACK TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD27X30353 GE Stainless Steel Inner Door
811DETERGENT MODULE
813WD12X10462 GE Dishwasher Detergent Plate
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
