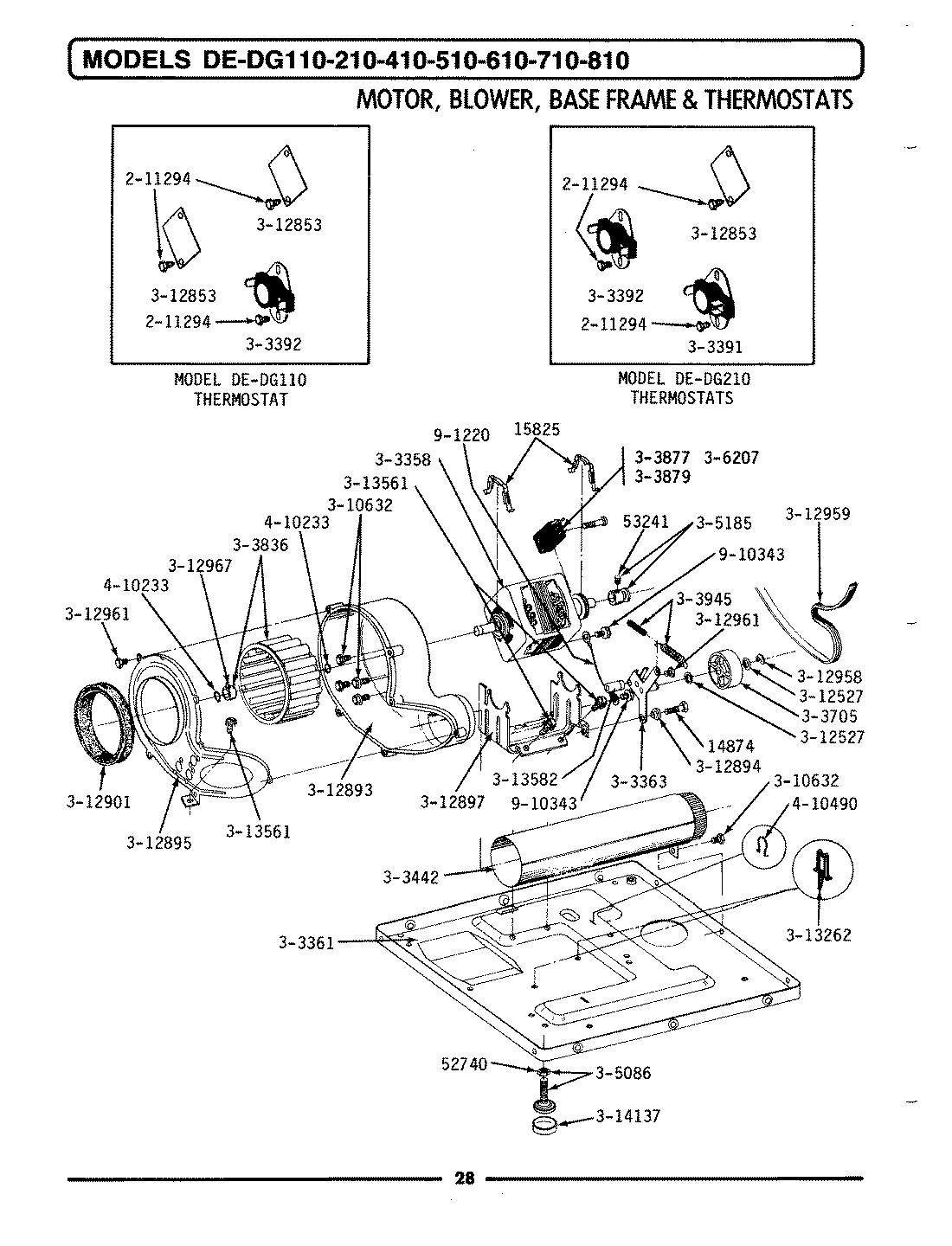

GDG110 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
NI	WPY304474 Whirlpool Cycling Thermostat
NI	CYCLING TSTAT
NI	MAY Y303394
1	WPY014874 Whirlpool Screw
2	WPY015825 Whirlpool Motor Clip
3	WP62739 Whirlpool Nut
4	MAY Y053241
5	WP90767 Whirlpool Screw
6	W10410999 Whirlpool Dryer Drive Motor
7	MAY Y303361
8	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
9	WP33303391 Whirlpool Thermostat
10	WP694674 Whirlpool Cycling Thermostat
12	MAY Y303442
13	WP6-3037050 Whirlpool Idler Pulley
14	Y303836 Whirlpool Dryer Blower Wheel
15	MAY Y303877
16	MAY Y303879
17	MAY Y303945
20	W10176519 Whirlpool Leveling Feet
21	MAY Y305185
22	MAY Y310632
23	MAY 306207
24	MAY Y312527
25	MAY Y312853
26	MAY Y312893
27	SLEEVE, IDLER ARM —-S
28	MAY Y312895
29	MAY 312897
30	WPY312901 Whirlpool Blow Seal
31	WP354987 Whirlpool C-Clip
32	WPY312959 Whirlpool Dryer Drum Belt
33	WPW10116751 Whirlpool Screw
34	WP312967 Whirlpool Clamp
35	MAY Y313262
36	MAY Y313561
37	WPW10116756 Whirlpool Spacer
38	WPY314137 Whirlpool Rubber Foot
39	WP9703438 Whirlpool Snap Retaining Ring
40	MAY 410490
41	MAY 901220
42	MAY 910343
