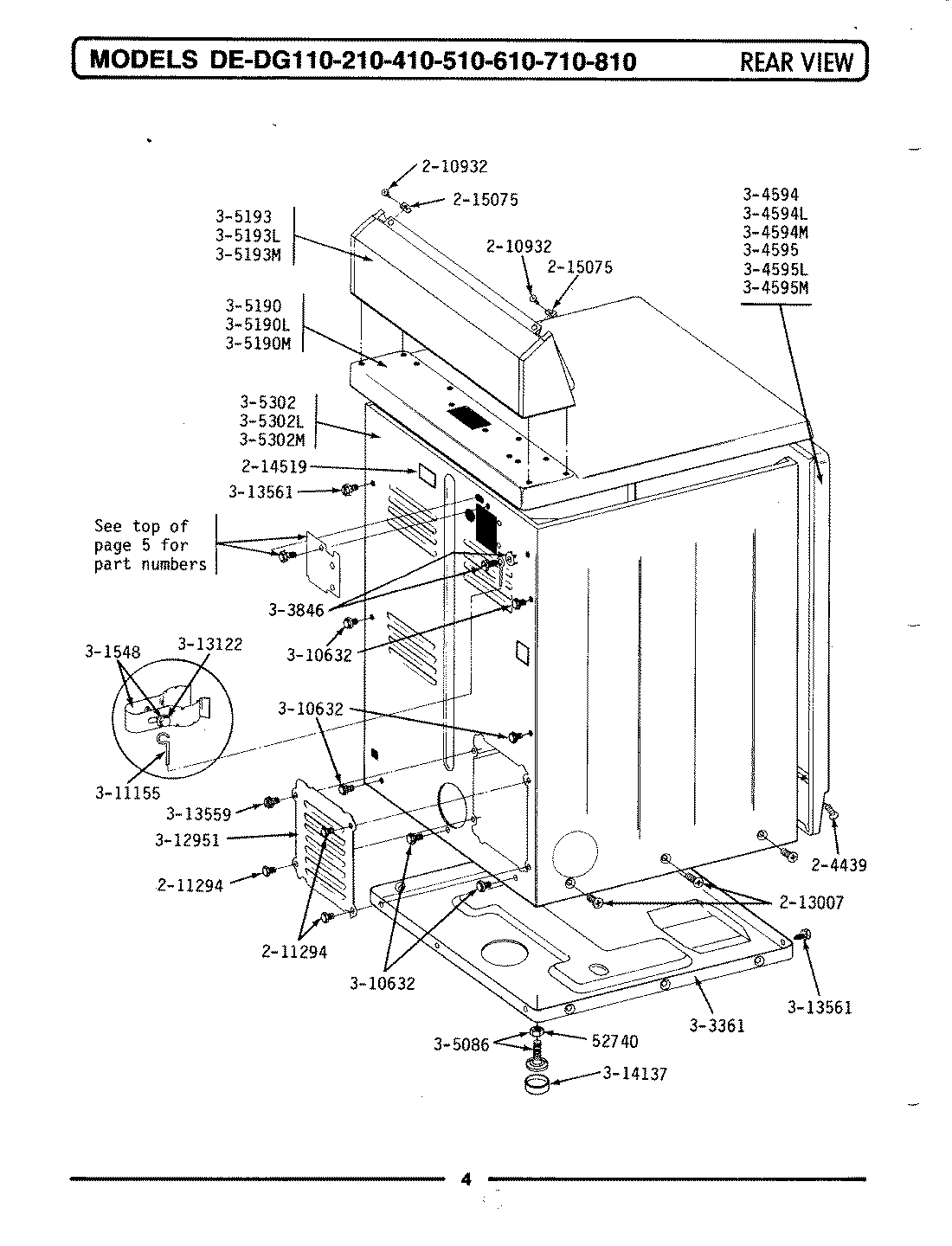

GDG110 08 – REAR VIEW

Products

Position	Product
NI	MAY Y312951
NI	MAY 302521
NI	MAY Y312905
NI	WPY314137 Whirlpool Rubber Foot
NI	MAY Y313559
NI	MAY Y313561
NI	MAY 313122
NI	MAY Y201808
NI	GROMMET
1	WP62739 Whirlpool Nut
3	SCREW & FSTNER ASSY (FT. PNL)
4	MAY 210932
5	WP90767 Whirlpool Screw
7	213007 Whirlpool Screw #12
8	INSTRUCTION LABEL
9	MAY 215075
10	MAY 301548
12	MAY Y303361
13	MAY 303846
16	MAY 304594M
20	W10176519 Whirlpool Leveling Feet
23	MAY 305190M
26	MAY 305193M
29	MAY 305302M
30	MAY Y310632
31	WP311155 Whirlpool Wire Assembly
