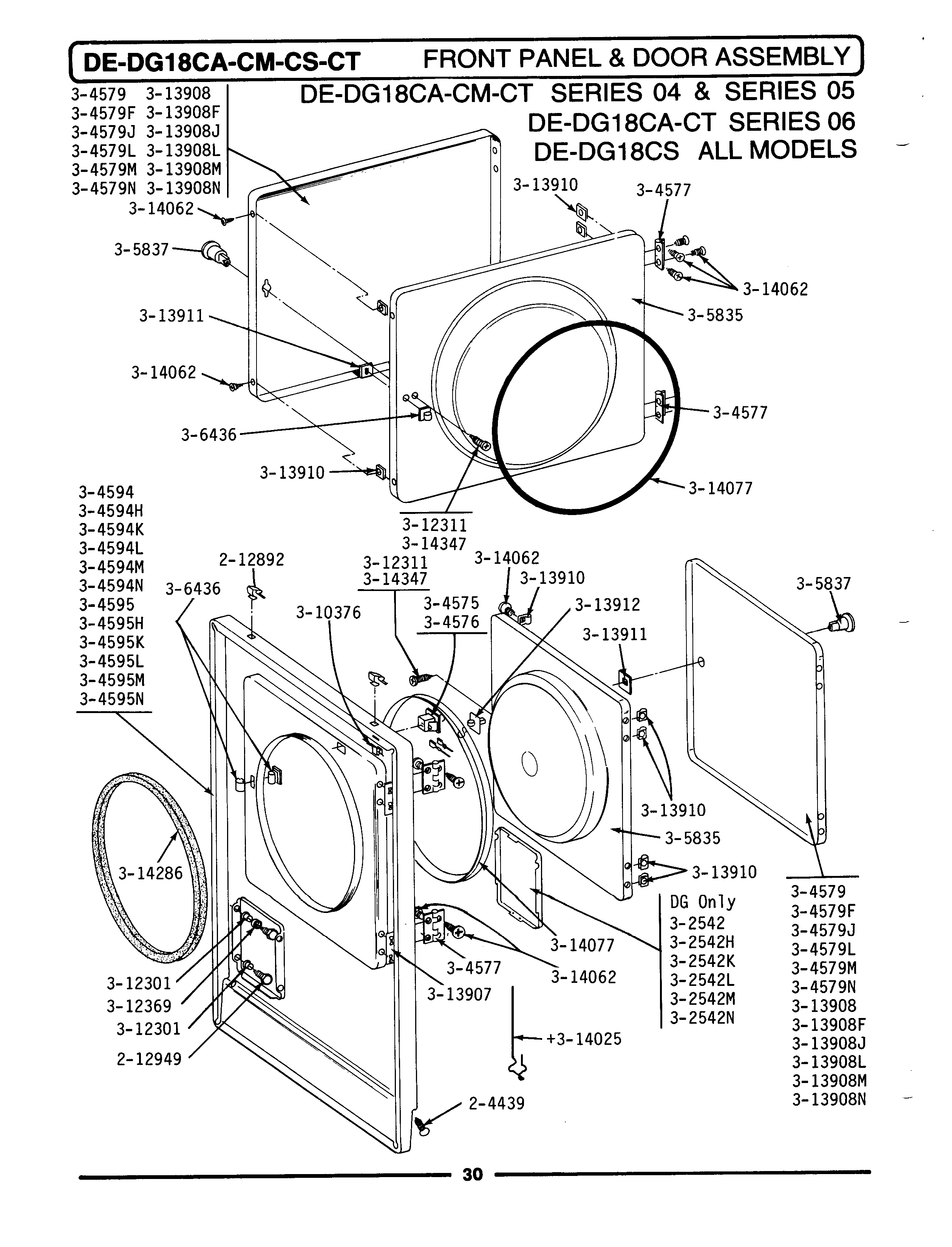

GDG18CM 10 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 314077
NI	MAY Y313927
NI	MAY Y304579
NI	MAY Y304577
NI	LATCH, ACCESS DOOR
NI	SCREW, BUSHINGS
NI	W10169313 Whirlpool Door Switch Kit
NI	MAY Y313907
NI	CLIP, DOOR LINER
001	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 212982
017	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018	MAY Y310376
021	SLEEVE, ACCESS DOOR RUBBER
022	LABEL, LINT SCREEN INSTR.
024	MAY Y313908
028	MAY Y313911
