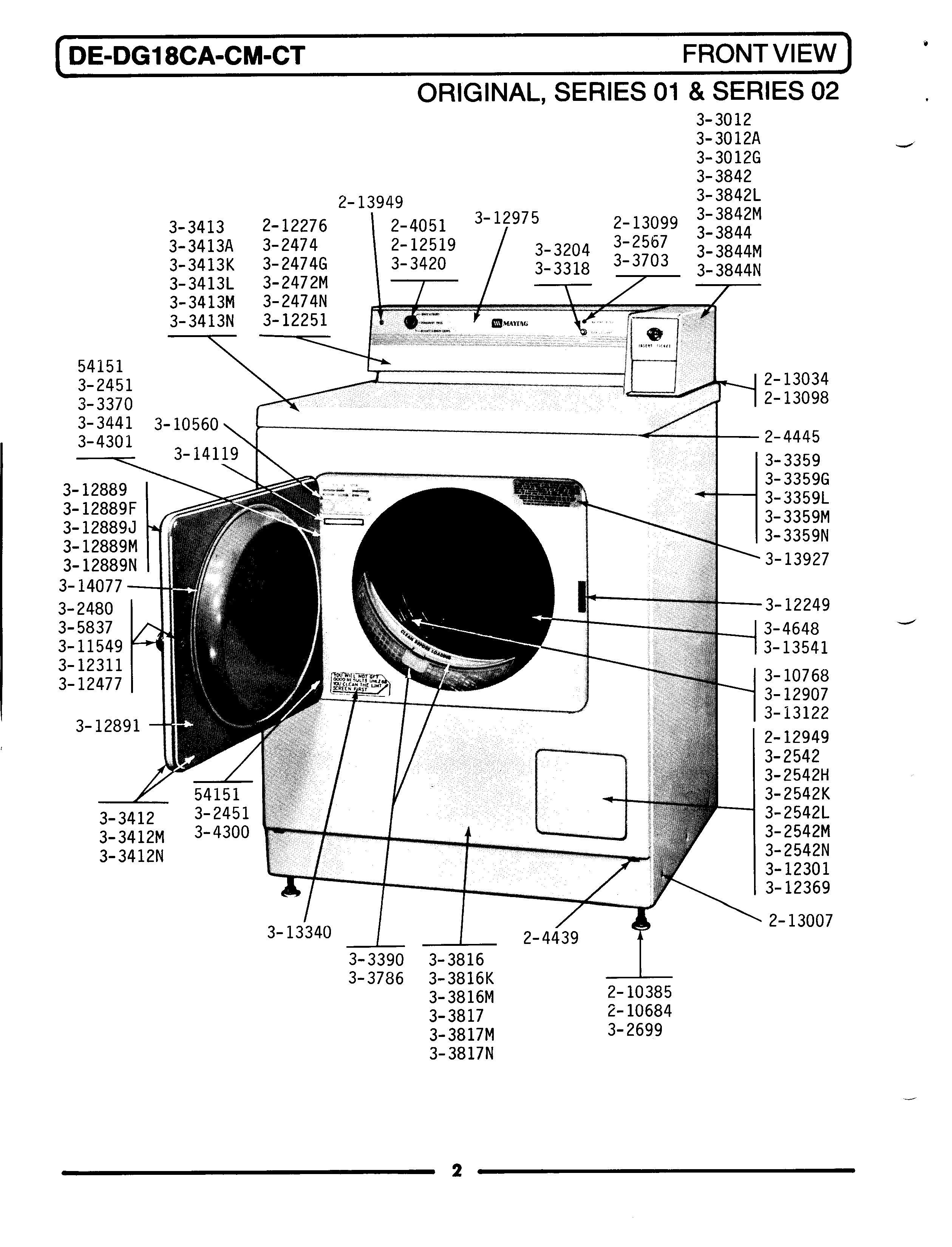

GDG18CT 01 – FRONT VIEW

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 310560
NI	MAY 314077
NI	MAY Y313927
NI	MAY 313122
NI	MAY Y313541
NI	MAY Y304648
NI	LABEL, LINT SCREEN INSTR.
002	MAY 204051
003	SCREW & FSTNER ASSY (FT. PNL)
004	MAY 204445
005	WP210385 Whirlpool Lock Nut
006	WP210684 Whirlpool Dishwasher Leveling Leg Pad
007	MAY 212276
008	MAY 212519
009	SCREW, BUSHINGS
010	213007 Whirlpool Screw #12
012	MAY 213099
013	WP355214 Whirlpool Screw
022	LEG, ADJUSTABLE (W/NUT)—S
023	MAY Y303318
027	MAY Y303370
028	MAY Y303390
034	MAY Y303420
035	MAY Y303441
036	MAY Y303703
037	MAY Y303786
056	SLEEVE, ACCESS DOOR RUBBER
060	MAY Y312891
061	MAY Y312907

No products found
