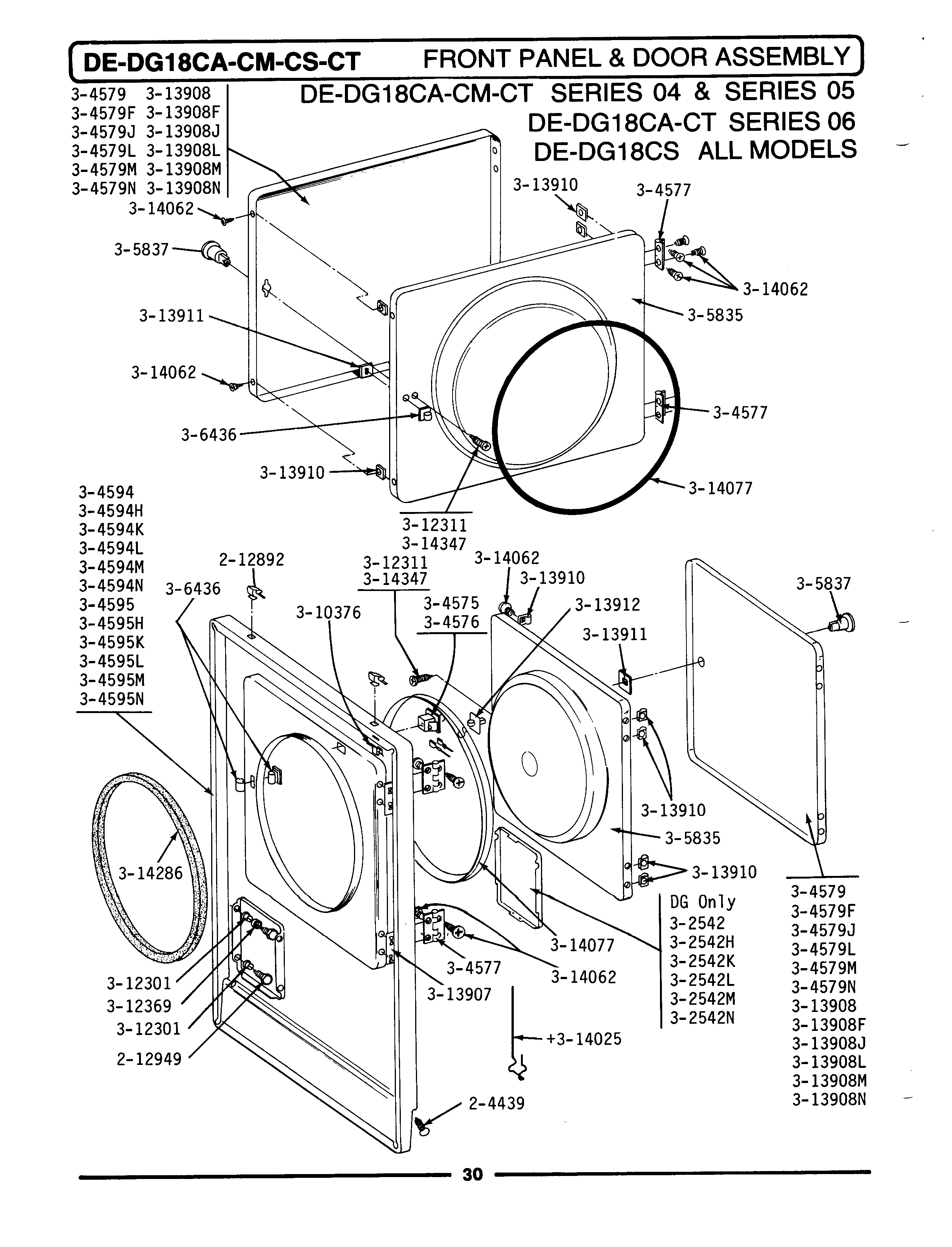

GDG18CT 11 – FRONT PANEL & DOOR ASSY (SERIES 06)

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 314077
NI	MAY Y313911
NI	MAY Y313908
NI	MAY Y304579
NI	MAY Y304577
NI	LATCH, ACCESS DOOR
NI	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
NI	SLEEVE, ACCESS DOOR RUBBER
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
007	W10169313 Whirlpool Door Switch Kit
017	MAY Y310376
021	LABEL, LINT SCREEN INSTR.
022	MAY Y313907
026	CLIP, DOOR LINER
028	MAY Y313927
