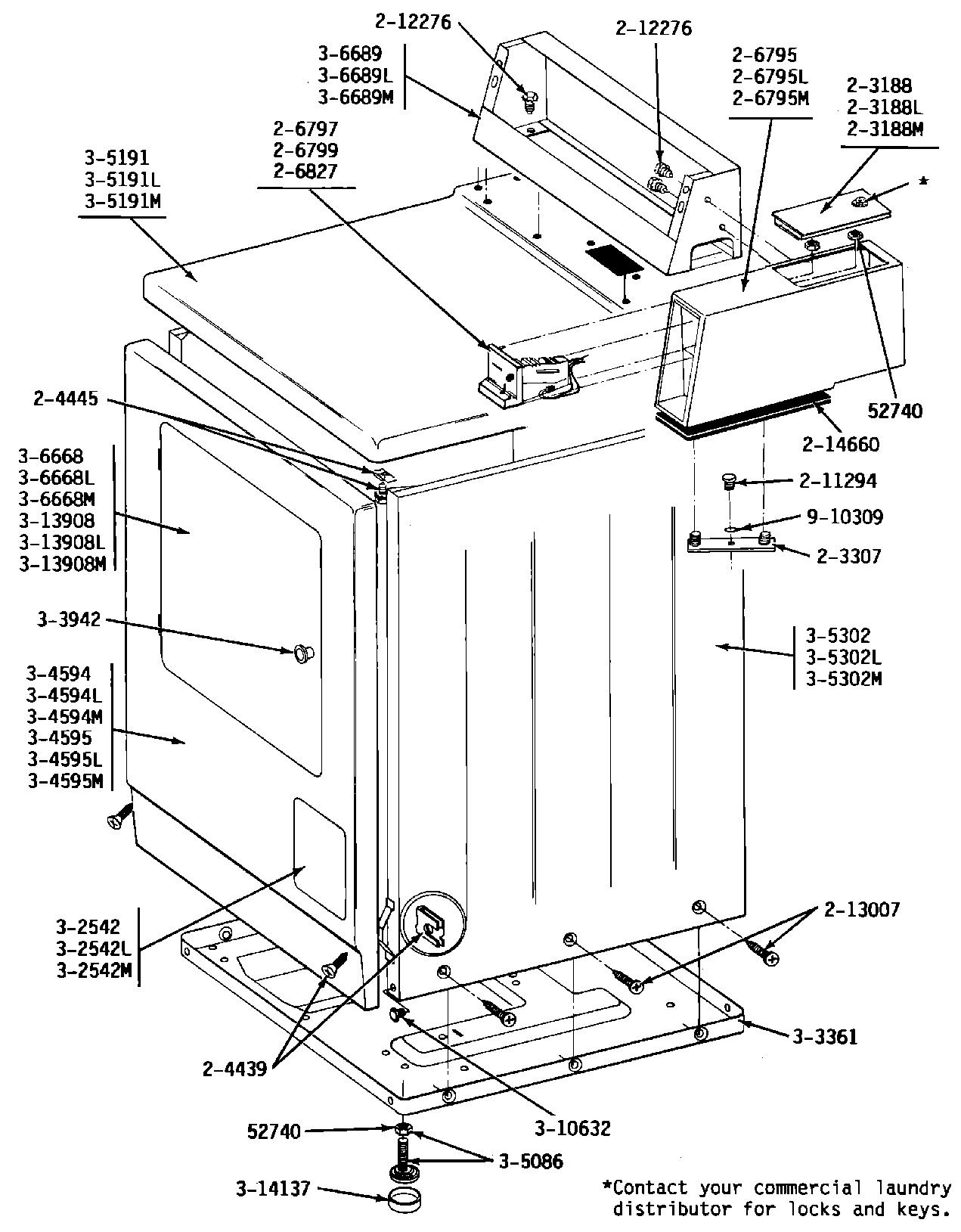

GDG19CD 02 – FRONT VIEW

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 206799
NI	MAY Y305191
NI	DOOR
NI	MAY Y313908
NI	MAY 910309
NI	W10176519 Whirlpool Leveling Feet
NI	WPY314137 Whirlpool Rubber Foot
NI	WP90767 Whirlpool Screw
NI	MAY Y303361
001	WP62739 Whirlpool Nut
002	MAY 203188
003	ACCESS DOOR-ALMOND
004	MAY 203188M
006	SCREW & FSTNER ASSY (FT. PNL)
007	MAY 204445
008	MAY 206795
009	MAY 206795L
014	MAY 212276
015	213007 Whirlpool Screw #12
016	MAY 214660
041	MAY Y310632
