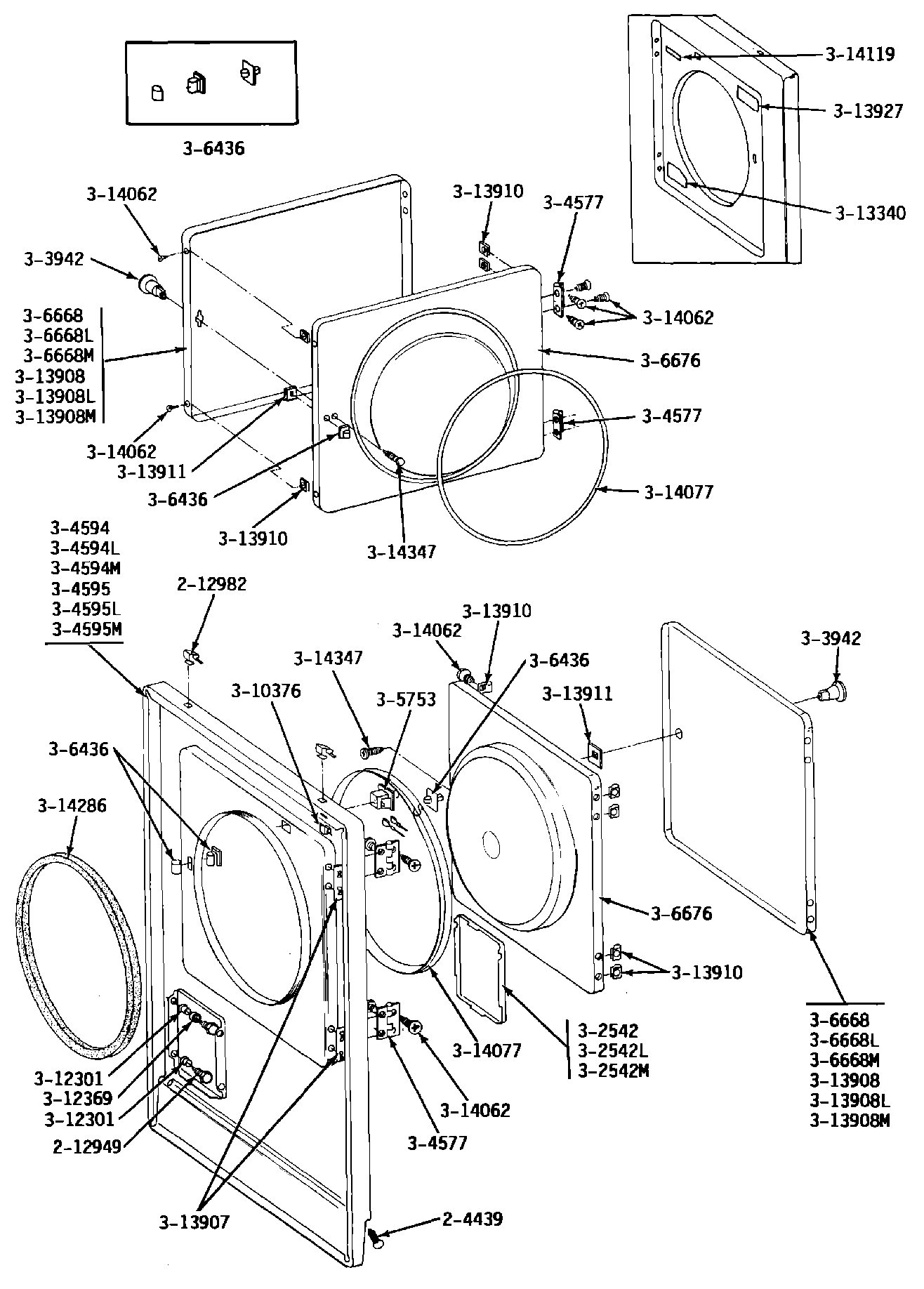

GDG19CD 04 – FRONT PANEL\DOOR ASSY.

GDG19CD 04 – FRONT PANEL\DOOR ASSY.

Written by

in

GDG19CD 04 – FRONT PANEL\DOOR ASSY.

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
014MAY Y304577
015W10169313 Whirlpool Door Switch Kit
016306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
017DOOR
021MAY Y310376
023SLEEVE, ACCESS DOOR RUBBER
024LABEL, LINT SCREEN INSTR.
025MAY Y313907
026MAY Y313908
029CLIP, DOOR LINER
030MAY Y313911
031MAY Y313927
033MAY 314077
