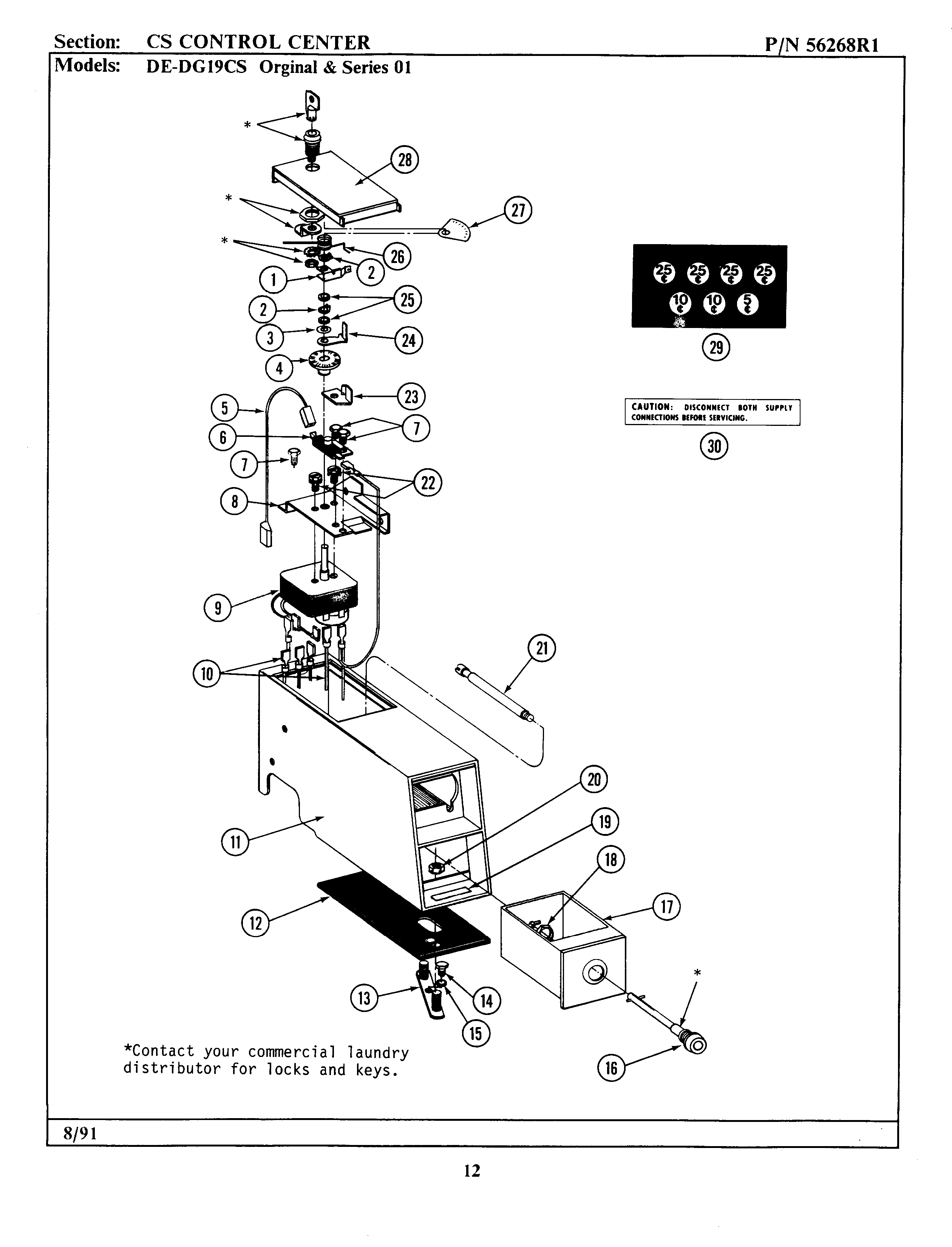

GDG19CS 06 – CONTROL CENTER
Products
| Position | Product |
|---|---|
| 001 | MAY Y312068 |
| 003 | SPRING WASHER |
| 005 | MAY Y303707 |
| 006 | MAY Y301774 |
| 007 | WPW10139210 Whirlpool Screw |
| 008 | MAY 312250 |
| 009 | MAY Y303743 |
| 011 | OUTER CASE (WHT) |
| 012 | MAY 214660 |
| 014 | WP90767 Whirlpool Screw |
| 015 | MAY 910309 |
| 016 | DOWEL PIN FOR HANDLE |
| 017 | MAY 205423M |
| 017 | COIN BOX-ALMOND |
| 017 | COIN BOX-WHITE |
| 018 | W11395752 Whirlpool Nut |
| 020 | WP62739 Whirlpool Nut |
| 021 | MAY 213035 |
| 022 | MAY 211251 |
| 023 | MAY Y312069 |
| 024 | MAY Y313309 |
| 025 | MAY 410730 |
| 026 | MAY Y312071 |
| 027 | MAY 314073 |
| 028 | ACCESS DOOR-ALMOND |
| 028 | MAY 203188 |
| 028 | MAY 203188M |
| 029 | MAY 214648 |
| 030 | MAY Y313439 |
