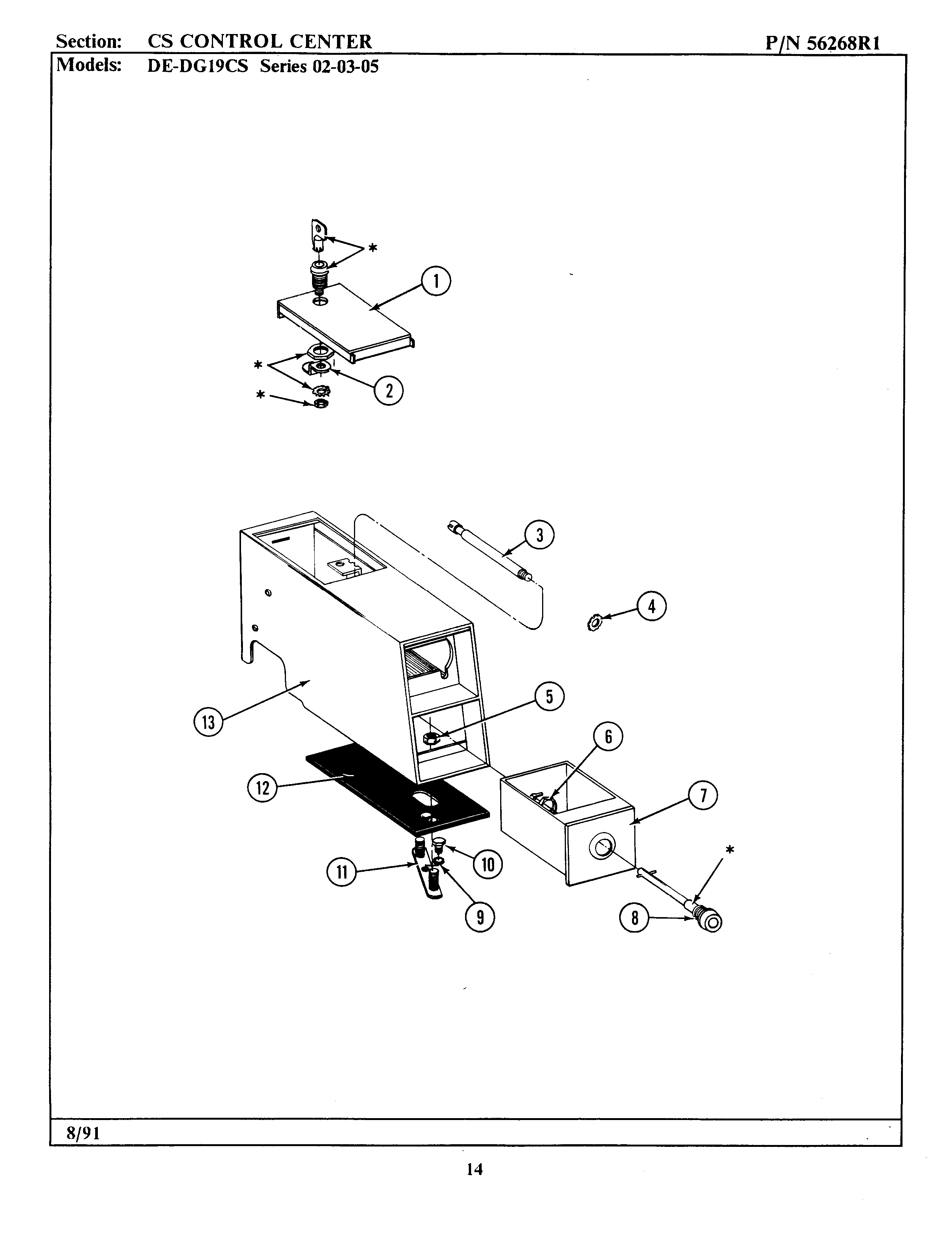

GDG19CS 07 – CONTROL CENTER CASE
Products
| Position | Product |
|---|---|
| 001 | MAY 203188 |
| 001 | ACCESS DOOR-ALMOND |
| 001 | MAY 203188M |
| 002 | W11165684 Whirlpool Cam |
| 003 | MAY 213035 |
| 004 | MAY 910181 |
| 005 | WP62739 Whirlpool Nut |
| 006 | W11395752 Whirlpool Nut |
| 007 | COIN BOX-ALMOND |
| 007 | COIN BOX-WHITE |
| 007 | MAY 205423M |
| 009 | MAY 910309 |
| 010 | WP90767 Whirlpool Screw |
| 012 | MAY 214660 |
| 013 | (ALM) |
| 013 | OUTER CASE (WHT) |
| 013 | DOWEL PIN FOR HANDLE |
| 013 | (H. WHEAT) |
