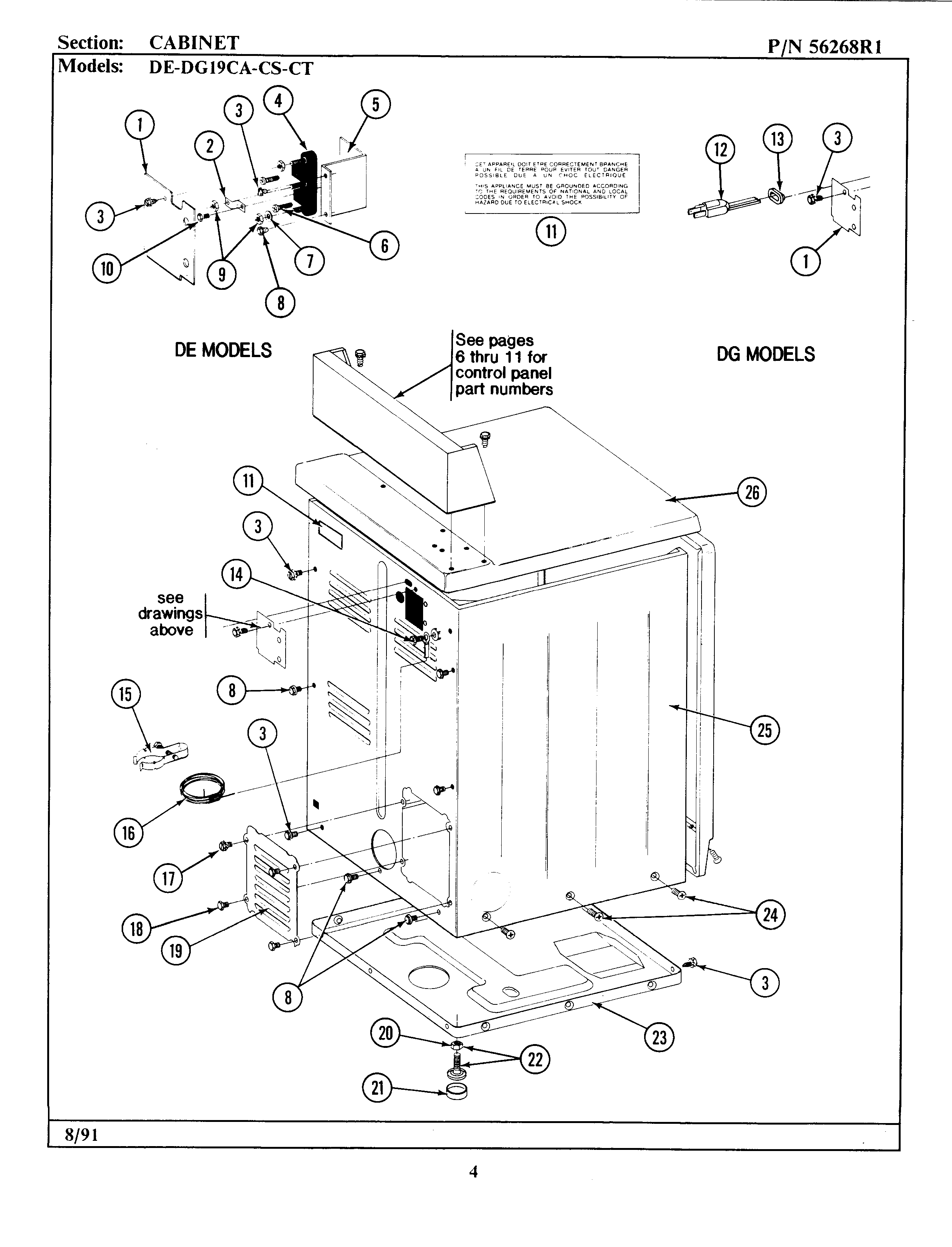

GDG19CT 02 – CABINET-REAR – Aparts

GDG19CT 02 – CABINET-REAR

Products

Position	Product
001	MAY Y312905
002	MAY Y313561
003	MAY Y310632
004	INSTRUCTION LABEL
005	MAY 302521
006	GROMMET
008	MAY 301548
009	WP311155 Whirlpool Wire Assembly
010	MAY Y313559
011	WP90767 Whirlpool Screw
012	MAY Y312951
013	WP62739 Whirlpool Nut
014	WPY314137 Whirlpool Rubber Foot
015	W10176519 Whirlpool Leveling Feet
016	MAY Y303361
017	213007 Whirlpool Screw #12
021	MAY Y305191
023	DOWEL PIN FOR HANDLE
