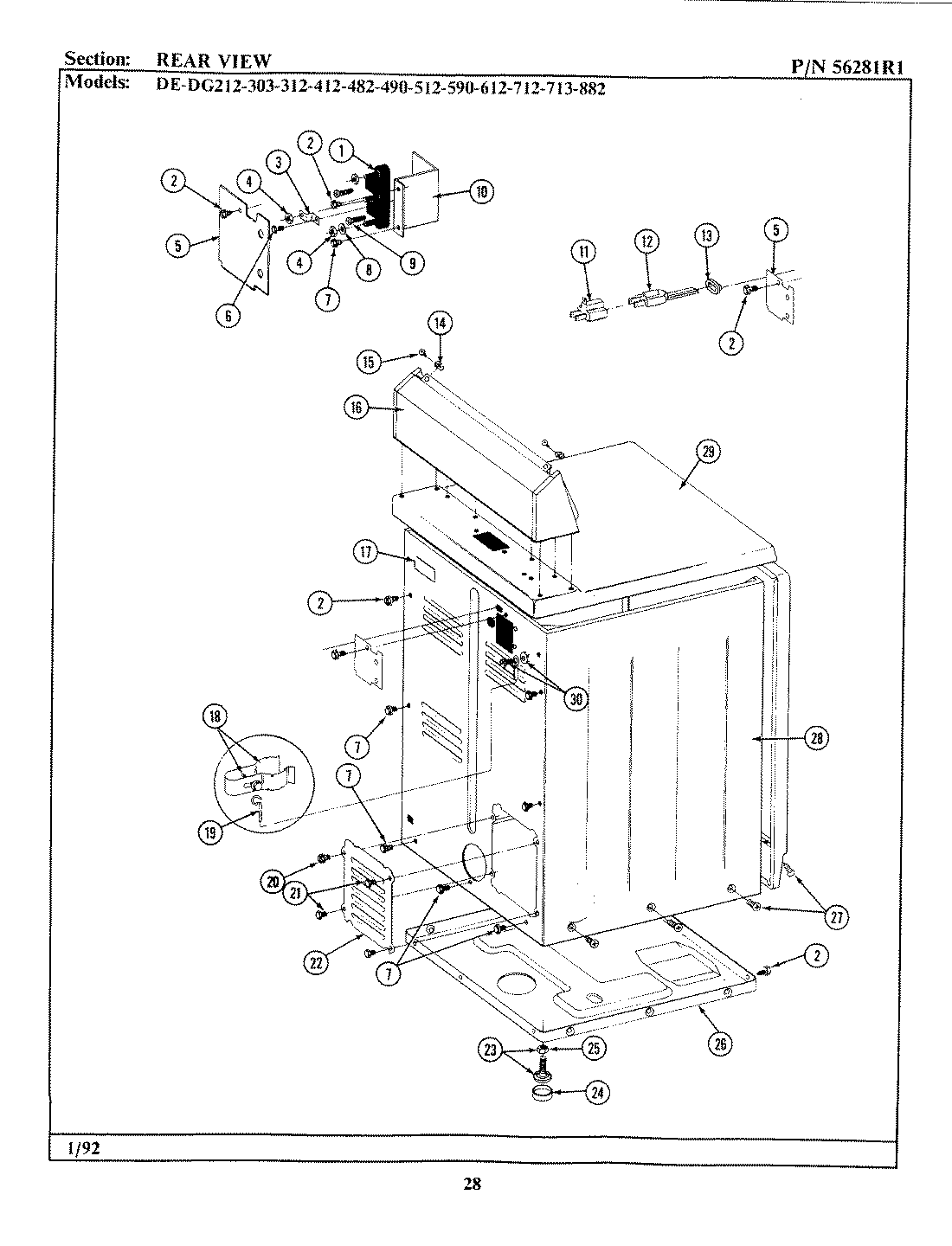

GDG212 09 – REAR VIEW

GDG212 09 – REAR VIEW

Written by

in

GDG212 09 – REAR VIEW

Products

PositionProduct
2MAY Y313561
5MAY Y312905
7MAY Y310632
11MAY Y201808
12MAY 302521
13GROMMET
14MAY 215075
15MAY 210932
17INSTRUCTION LABEL
18MAY 301548
19WP311155 Whirlpool Wire Assembly
20MAY Y313559
21WP90767 Whirlpool Screw
22MAY Y312951
23W10176519 Whirlpool Leveling Feet
24WPY314137 Whirlpool Rubber Foot
25WP62739 Whirlpool Nut
26MAY Y303361
27213007 Whirlpool Screw #12
28MAY 305193M
29MAY 307104M
30MAY 303846
