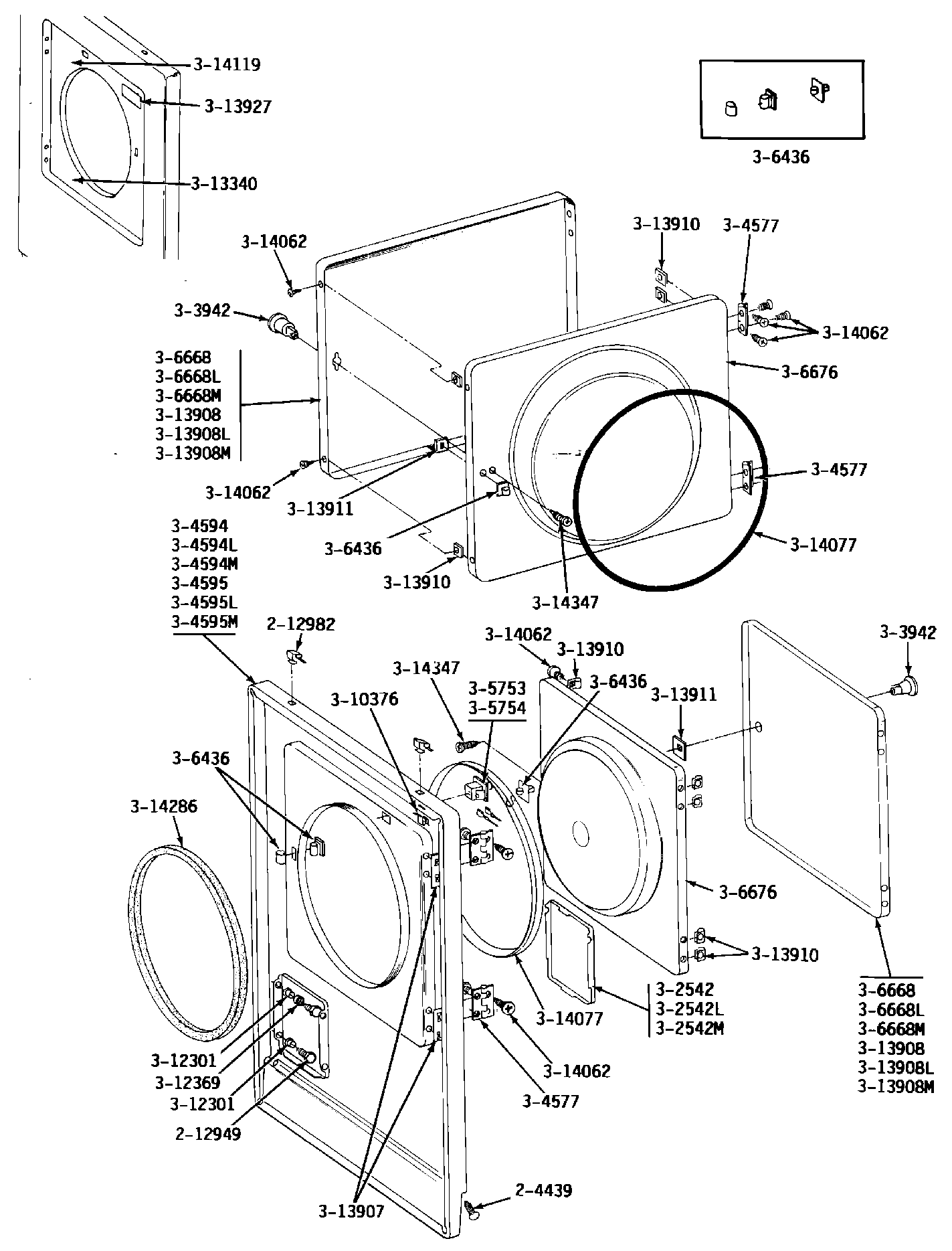

GDG24CA 04 – FRONT PANEL\DOOR ASSY.

GDG24CA 04 – FRONT PANEL\DOOR ASSY.

Written by

in

GDG24CA 04 – FRONT PANEL\DOOR ASSY.

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
NIMAY Y313907
NIMAY Y313927
NIMAY Y310376
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
011MAY Y304577
012W10169313 Whirlpool Door Switch Kit
014306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
015DOOR
021SLEEVE, ACCESS DOOR RUBBER
022LABEL, LINT SCREEN INSTR.
024MAY Y313908
027CLIP, DOOR LINER
028MAY Y313911
031MAY 314077
