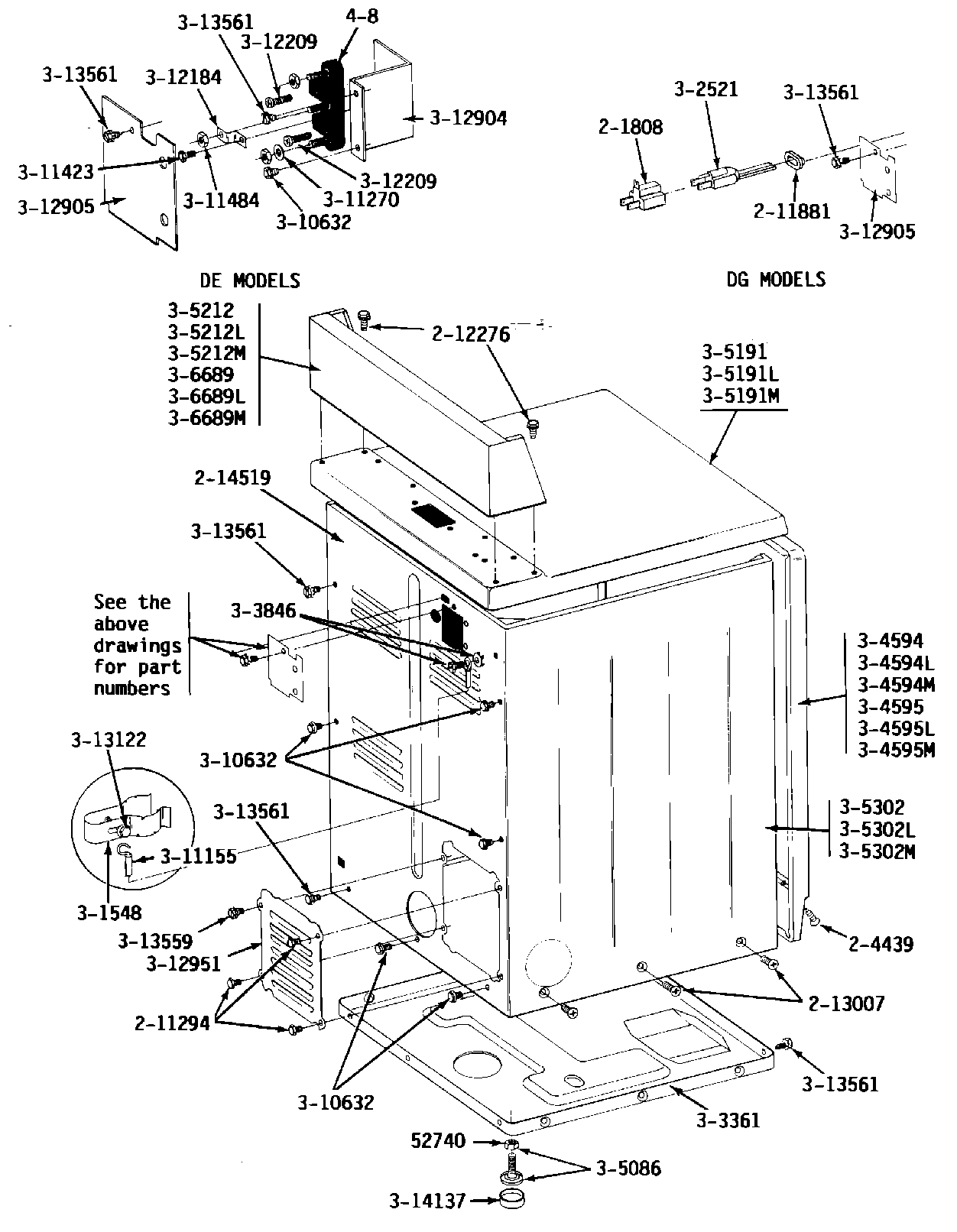

GDG24CT 05 – REAR VIEW

GDG24CT 05 – REAR VIEW

Written by

in

GDG24CT 05 – REAR VIEW

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 305168
001	WP62739 Whirlpool Nut
002	MAY Y201808
003	SCREW & FSTNER ASSY (FT. PNL)
004	WP90767 Whirlpool Screw
005	GROMMET
006	MAY 212276
007	213007 Whirlpool Screw #12
008	INSTRUCTION LABEL
009	MAY 301548
010	MAY 302521
011	MAY Y303361
019	W10176519 Whirlpool Leveling Feet
021	MAY Y305191
034	WP311155 Whirlpool Wire Assembly
041	MAY Y312905
042	MAY Y312951
043	MAY 313122
044	MAY Y313559
046	WPY314137 Whirlpool Rubber Foot
