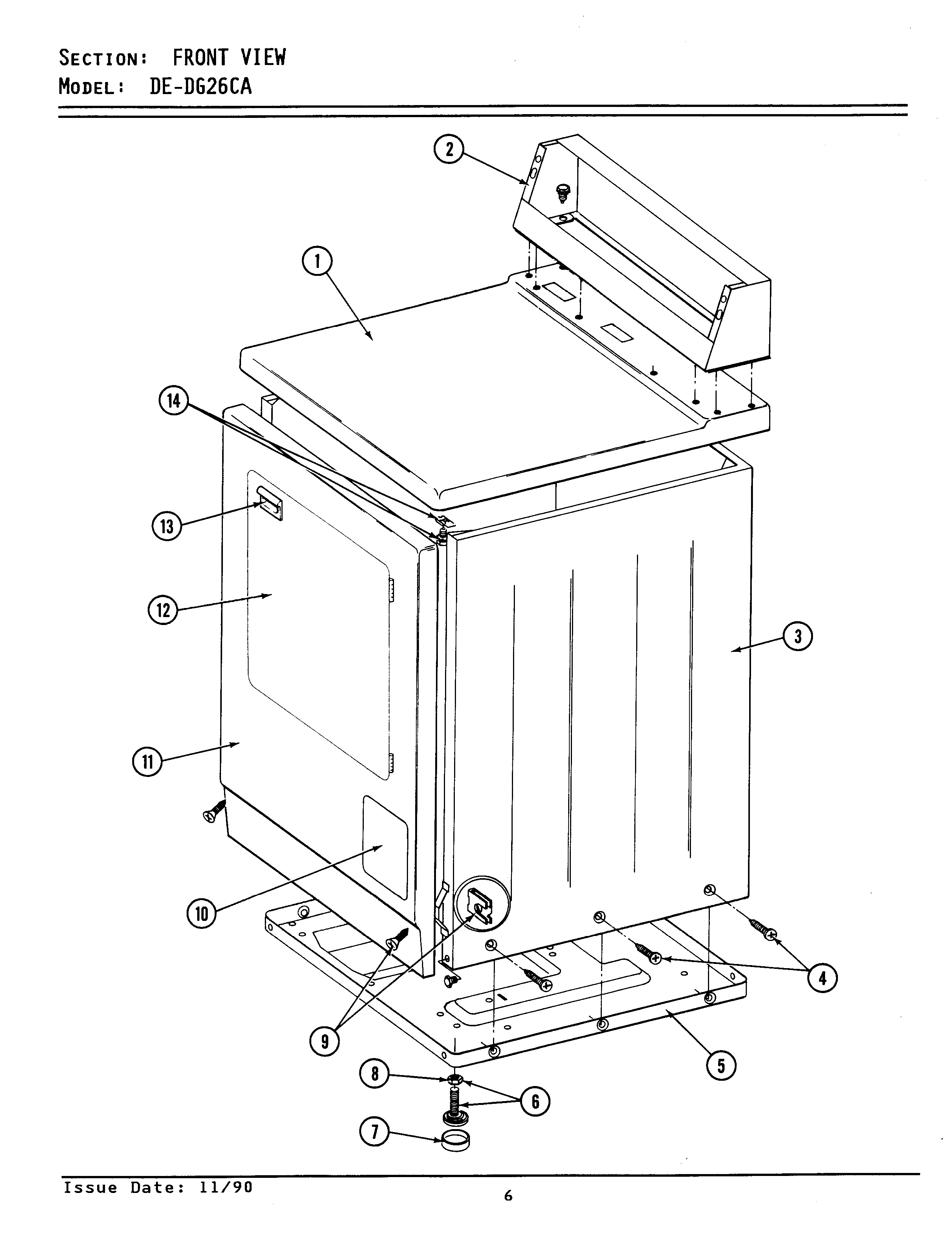

GDG26CA 01 – FRONT VIEW – CA MODELS

GDG26CA 01 – FRONT VIEW – CA MODELS

Written by

in

GDG26CA 01 – FRONT VIEW – CA MODELS

Products

Position	Product
001	TOP COVER ASSY. (WHT)
002	MAY 212276
003	MAY Y310632
004	213007 Whirlpool Screw #12
005	MAY Y303361
006	W10176519 Whirlpool Leveling Feet
007	WPY314137 Whirlpool Rubber Foot
008	WP62739 Whirlpool Nut
009	SCREW & FSTNER ASSY (FT. PNL)
011	(ALM)
012	MAY 308061
013	MAY 314946
013	MAY 314972
013	DOWEL PIN FOR HANDLE
014	MAY 204445
