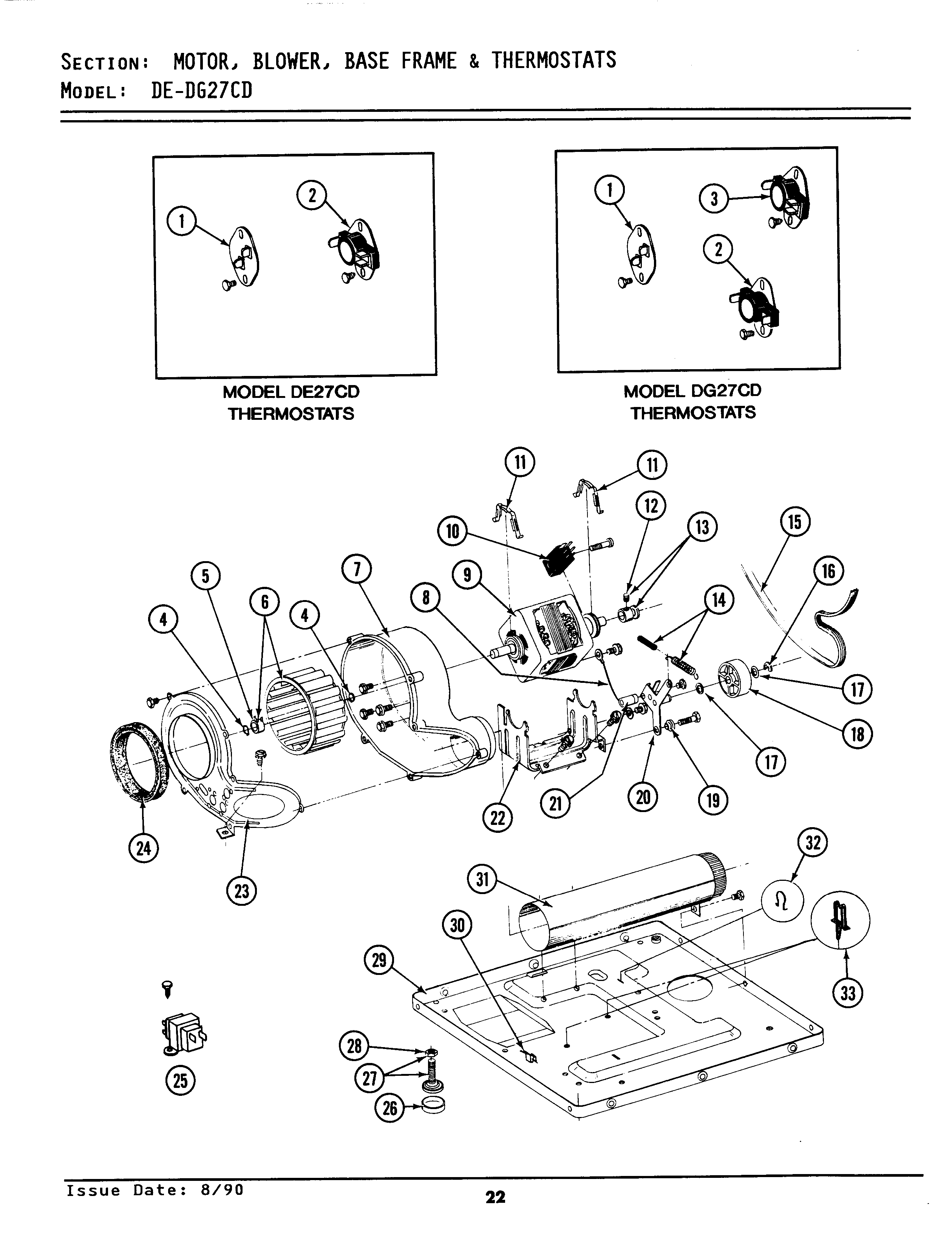

GDG27CD 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

GDG27CD 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Written by

in

GDG27CD 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
001MAY 306056
002WP33303391 Whirlpool Thermostat
003WP694674 Whirlpool Cycling Thermostat
004WP9703438 Whirlpool Snap Retaining Ring
005WP312967 Whirlpool Clamp
006Y303836 Whirlpool Dryer Blower Wheel
007MAY Y312893
008MAY 910343
008MAY 901220
009W10410999 Whirlpool Dryer Drive Motor
010MAY Y303877
010MAY Y303879
011WPY015825 Whirlpool Motor Clip
012MAY Y053241
013MAY Y305185
014MAY Y303945
015WPY312959 Whirlpool Dryer Drum Belt
016WP354987 Whirlpool C-Clip
017MAY Y312527
018WP6-3037050 Whirlpool Idler Pulley
019SLEEVE, IDLER ARM —-S
020WP6-3033630 Whirlpool Dryer Idler Arm Assembly
020WPW10116751 Whirlpool Screw
020WPY014874 Whirlpool Screw
021WPW10116756 Whirlpool Spacer
022DOWEL PIN FOR HANDLE
023MAY Y312895
023MAY Y313561
024WPY312901 Whirlpool Blow Seal
025MAY Y313559
025MAY 315218
025WP90767 Whirlpool Screw
025MAY 306062
026WP210684 Whirlpool Dishwasher Leveling Leg Pad
027LEG, ADJUSTABLE (W/NUT)—S
028WP210385 Whirlpool Lock Nut
029MAY 306261
029MAY Y303361
030MAY Y310376
031MAY Y303442
032MAY 410490
033MAY Y313262
