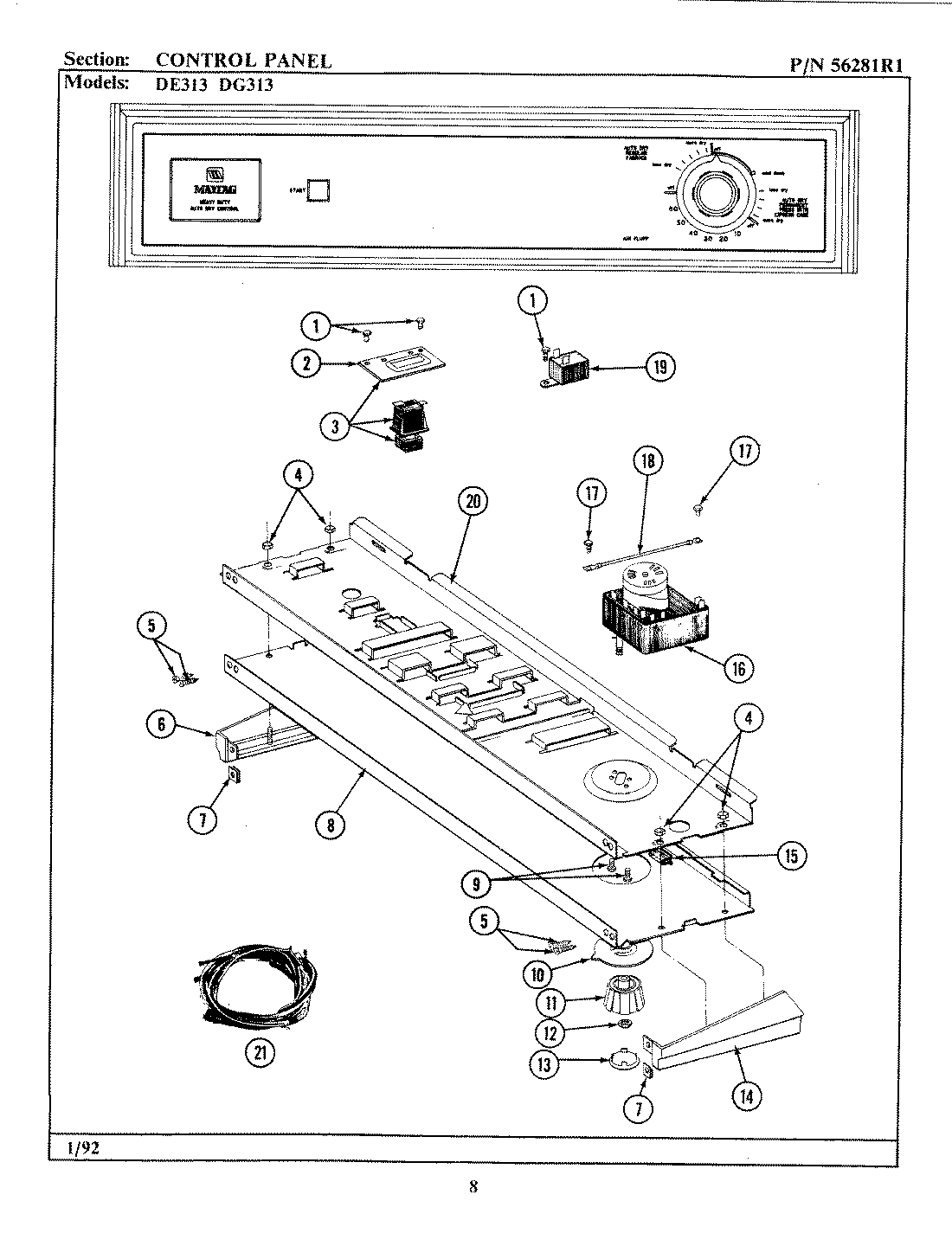

GDG313 01 – CONTROL PANEL

GDG313 01 – CONTROL PANEL

Written by

in

GDG313 01 – CONTROL PANEL

Products

PositionProduct
1WPW10139210 Whirlpool Screw
2BRACKET FOR START SWITCH
3SWITCH, PUSH/TO/START W/BKT
4MAY 214872
5MAY 210932
6MAY 214815
7MAY 214894
8MAY 306535
9MAY 910708
10MAY 314422
11MAY 314421
12W10155650 Whirlpool Nut
13MAY 215164
14MAY 214816
15MAY 214897
16WP306534 Whirlpool Timer
17WP90767 Whirlpool Screw
18MAY 204807
19WP694419 Whirlpool Buzzer Adjuster
20BACK UP PLATE
21MAY 306539
21MAY 306809
