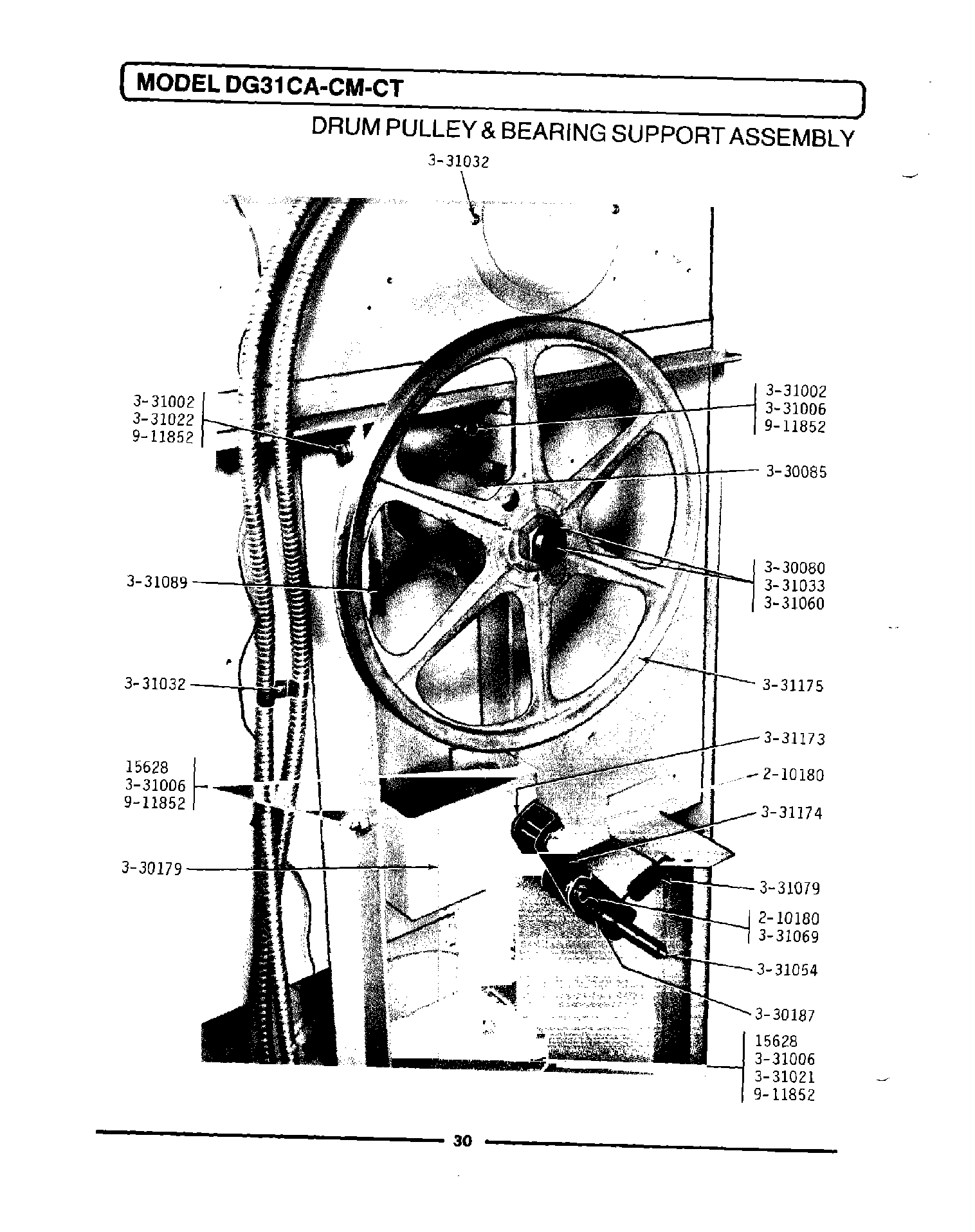

GDG31CA 11 – DRUM PULLEY & BEARING SUPPORT ASSEMBLY
Written by
in
GDG31CA 11 – DRUM PULLEY & BEARING SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| NI | DOWEL PIN FOR HANDLE |
| 002 | MAY 210180 |
| 003 | MAY Y330080 |
| 004 | MAY Y330085 |
| 005 | MAY Y330179 |
| 006 | IDLER ARM ASSEMBLY W/PIN |
| 011 | MAY 331032 |
| 012 | MAY 331033 |
| 013 | GREASE FITTING – PULLEY PIN |
| 014 | MAY 331060 |
| 015 | MAY 331069 |
| 016 | MAY 331079 |
| 017 | MAY 331089 |
| 018 | WASHER |
| 019 | IDLER BRACKET |
| 020 | MAY 331175 |
| 021 | MAY 911852 |
