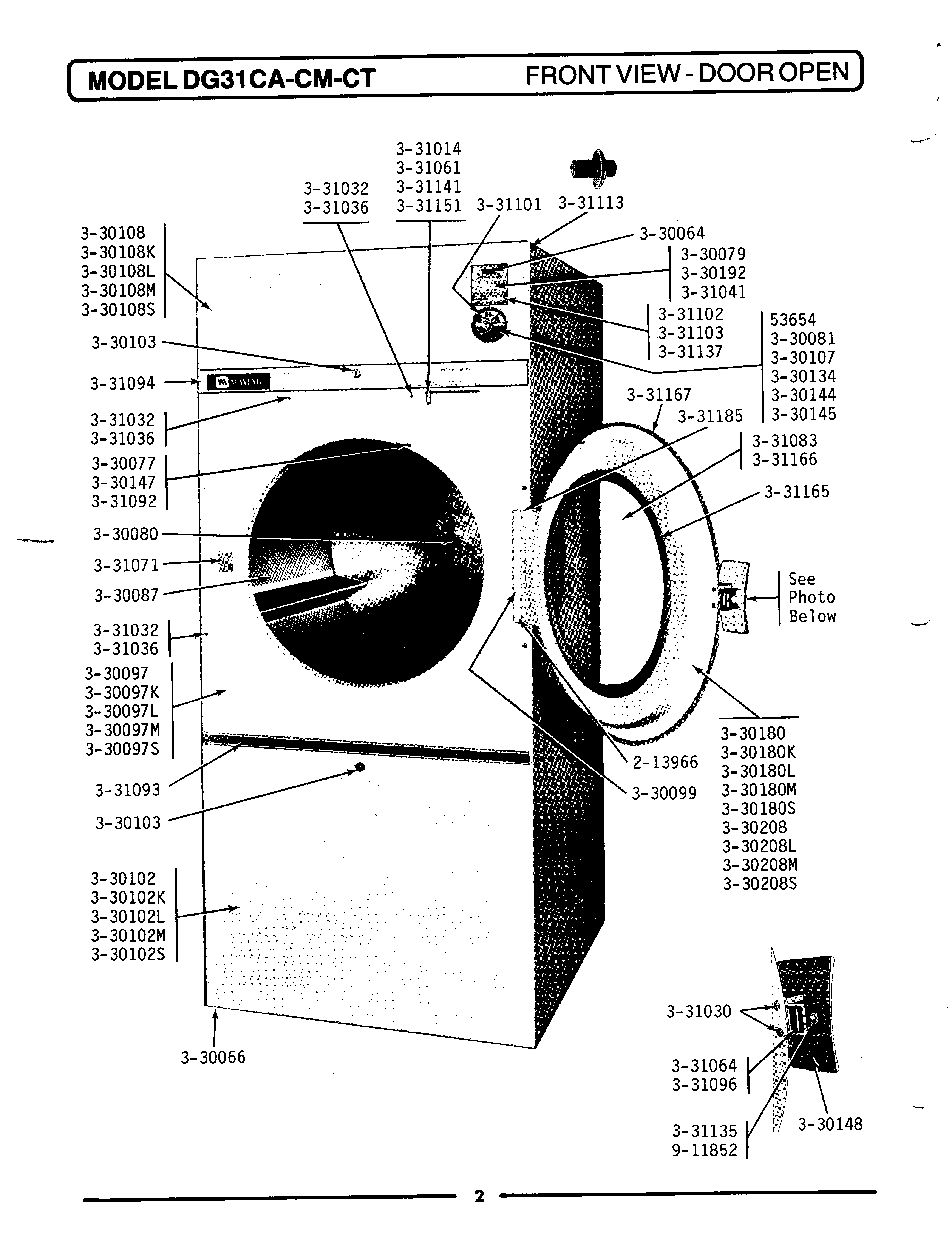

GDG31CM 01 – FRONT VIEW-DOOR OPEN

Products

Position	Product
NI	SWITCH, PUSH TO START
NI	MAY 331101
NI	DOWEL PIN FOR HANDLE
NI	MAY 331032
NI	MAY 331014
NI	MAY Y330145
NI	MAY 331151
NI	MAY 330108L
NI	MAY Y330103
NI	MAY Y330102
003	WP3400014 Whirlpool Dishwasher Screw
004	MAY Y330064
006	MAY Y330077
007	MAY Y330079
008	MAY Y330080
009	MAY 330081
010	MAY Y330087
022	MAY 330108M
026	MAY Y330147
038	WASHER-FRONT PANEL SCREWS
039	MAY 331041
040	MAY 331061
041	MAY 331064
042	STRIKE PLATE FOR DOOR
043	MAY 331083
056	MAY 331165
057	MAY 331166
058	MAY 331167
059	MAY 331185
060	MAY 911852
