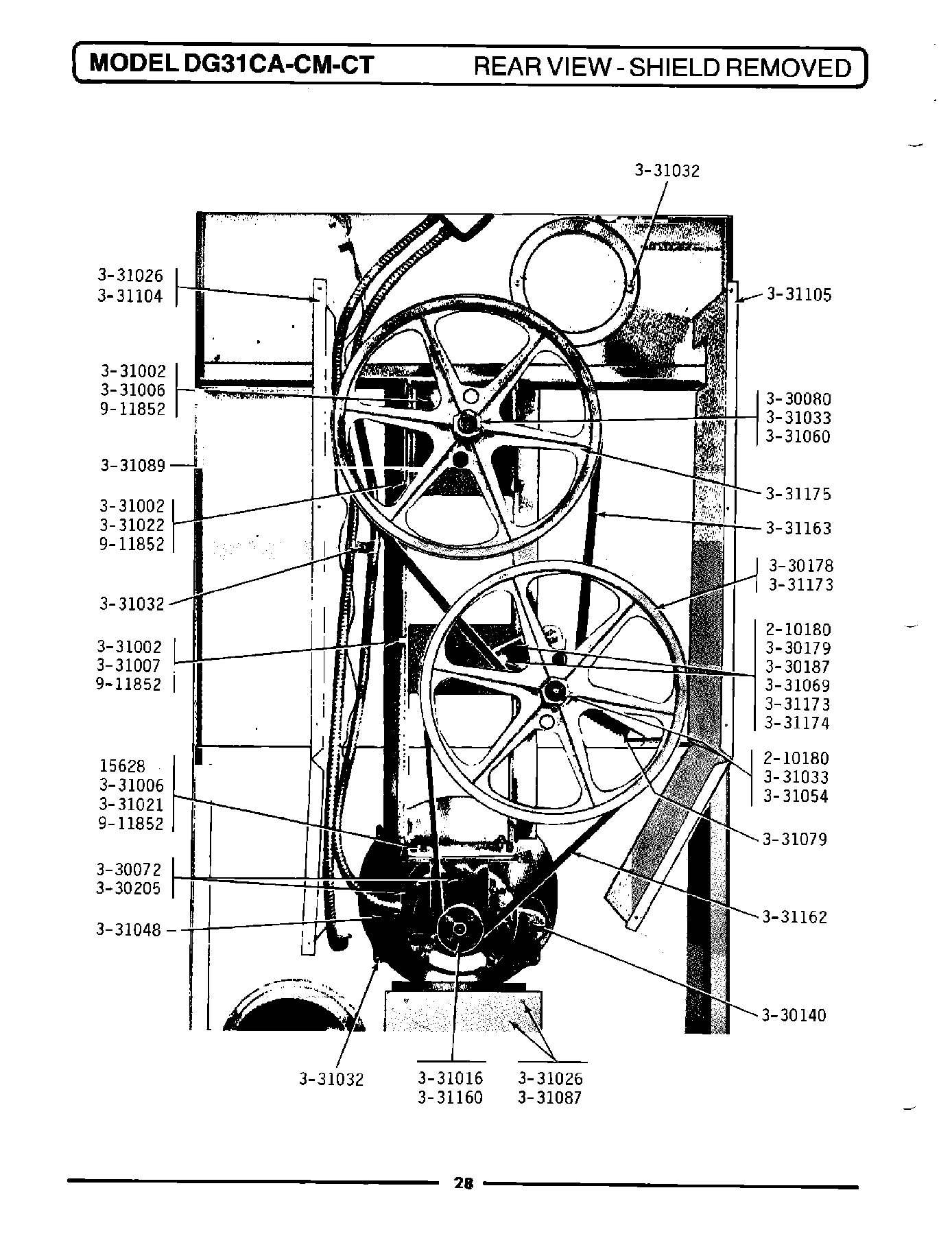

GDG31CT 09 – REAR VIEW-SHIELD REMOVED
Products
| Position | Product |
|---|---|
| NI | DOWEL PIN FOR HANDLE |
| 002 | MAY 210180 |
| 003 | MAY Y330072 |
| 004 | MAY Y330080 |
| 006 | MAY Y330178 |
| 007 | MAY Y330179 |
| 008 | IDLER ARM ASSEMBLY W/PIN |
| 016 | MAY 331026 |
| 017 | MAY 331032 |
| 018 | MAY 331033 |
| 019 | MAY 331048 |
| 020 | GREASE FITTING - PULLEY PIN |
| 021 | MAY 331060 |
| 022 | MAY 331069 |
| 023 | MAY 331079 |
| 025 | MAY 331089 |
| 028 | MAY 331160 |
| 029 | MAY 331162 |
| 030 | V BELT - REDUCTION |
| 031 | WASHER |
| 032 | IDLER BRACKET |
| 033 | MAY 331175 |
| 034 | MAY 911852 |
