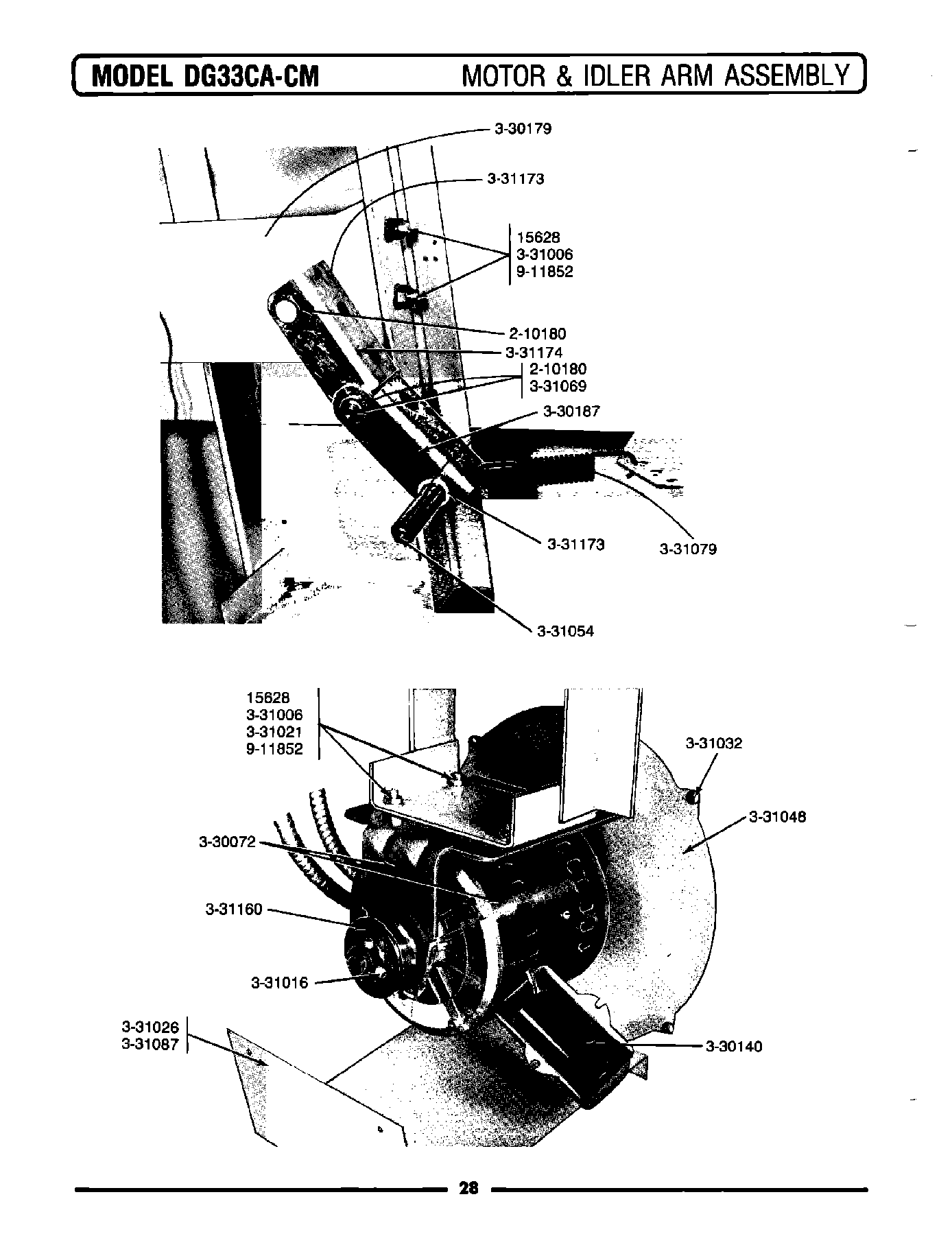

GDG33CM 12 – MOTOR & IDLER ARM ASSEMBLY
Written by
in
GDG33CM 12 – MOTOR & IDLER ARM ASSEMBLY
Products
| Position | Product |
|---|---|
| NI | DOWEL PIN FOR HANDLE |
| NI | MAY 331162 |
| 002 | MAY 210180 |
| 003 | MAY Y330072 |
| 005 | MAY Y330179 |
| 006 | IDLER ARM ASSEMBLY W/PIN |
| 011 | MAY 331026 |
| 012 | MAY 331032 |
| 013 | MAY 331048 |
| 014 | GREASE FITTING – PULLEY PIN |
| 015 | MAY 331069 |
| 016 | MAY 331079 |
| 020 | MAY 331160 |
| 022 | WASHER |
| 023 | IDLER BRACKET |
| 024 | MAY 911852 |
