GDG34CQ 01 – FRONT VIEW-DOOR OPEN – Aparts

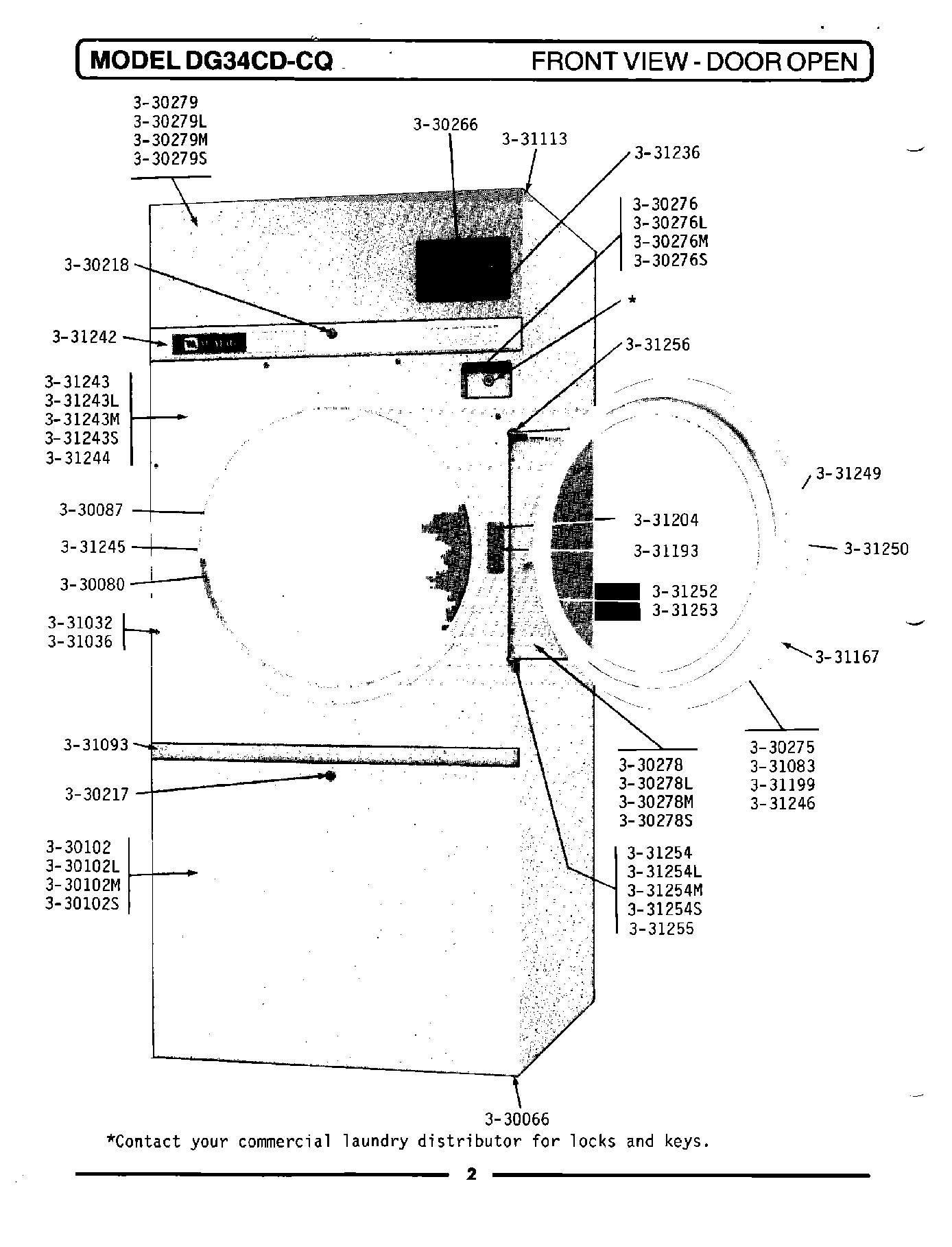

GDG34CQ 01 – FRONT VIEW-DOOR OPEN

Products

Position	Product
NI	MAY 331250
NI	COVER FOR DOOR SWITCH BOX
NI	GASKET FOR DOOR GLASS
NI	MAY 331245
NI	MAY Y330217
NI	MAY 331167
NI	WP3400094 Whirlpool Screw
NI	DOWEL PIN FOR HANDLE
NI	MAY 331083
NI	WASHER-FRONT PANEL SCREWS
NI	MAY 331246
NI	MAY 331204
NI	MAY 331254L
NI	MAY 330276L
002	MAY Y330080
003	MAY Y330087
004	MAY Y330102
008	MAY Y330218
009	MAY Y330266
010	MAY Y330275
023	MAY 331242
028	MAY 331243L
043	MAY 331253
049	MAY 331256
049	MAY 331032
