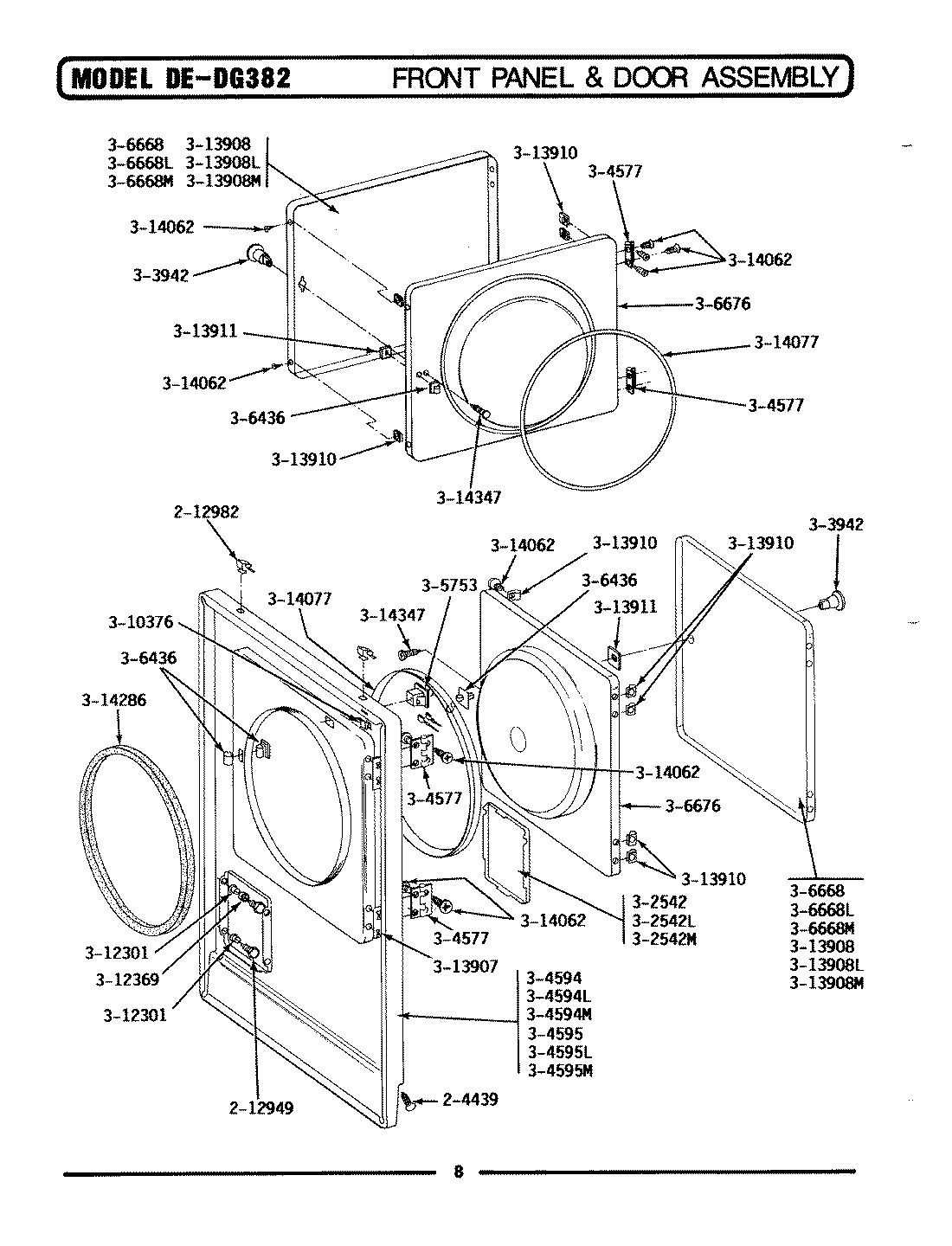

GDG382 02 – FRONT PANEL & DOOR ASSEMBLY

GDG382 02 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

GDG382 02 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
1SCREW & FSTNER ASSY (FT. PNL)
2SCREW, BUSHINGS
3MAY 212982
6MAY 302542M
7MAY 303942
8MAY Y304577
11MAY 304594M
12W10169313 Whirlpool Door Switch Kit
13306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
16MAY 306668M
17MAY 306676
18MAY Y310376
19BUSHING FOR ACCESS STUD
20SLEEVE, ACCESS DOOR RUBBER
21MAY Y313907
24MAY 313908M
25CLIP, DOOR LINER
26MAY Y313911
27MAY Y313927
29MAY 314077
30MAY 314119
32WP400021-1 Whirlpool Screw
