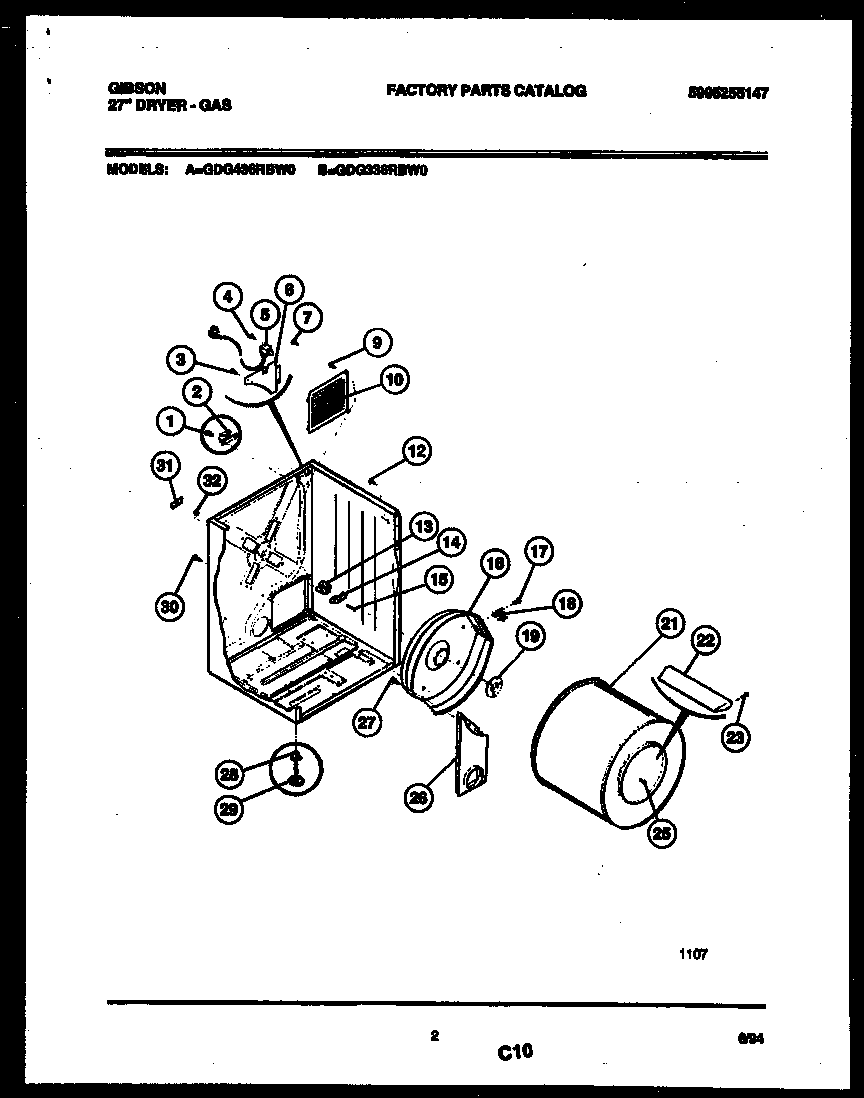

GDG436RBW0 02 – CABINET AND COMPONENT PARTS

GDG436RBW0 02 – CABINET AND COMPONENT PARTS

Written by

in

GDG436RBW0 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*76994DRYING RACK-OPTIONAL
*76994CLIP-CAB. FRONT BTM
*76994WCI 5303281153]
2BRACKET-HINGE
4131205300 Frigidaire Screw
5CORD-SERVICE
6WCI 3281130
7134154100 Frigidaire Screw 10-32 x 0.375 Co
95303015671 Frigidaire Bracket Termination Screw
10PLATE-COVER
12131168200 Frigidaire Dryer Screw
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16HEATER HSG & SEAL ASSEMBLY
17131243700 Frigidaire Screw
185308015399 Frigidaire P-1 THERMSTAT-Safety
195303931781 Frigidaire Shaft
21WCI 3201199
22137552900 Frigidaire Vane
23WCI 131205200
25SCREW (3) (PART OF REAR BEARING KIT.)
26DUCT-HEAT
27SCREW
28WCI 3201202
29BOLT-FOOT (4)
30WCI 5303010202
315303281020 Frigidaire Ball Clip
325303281019 Frigidaire Ball Assembly
