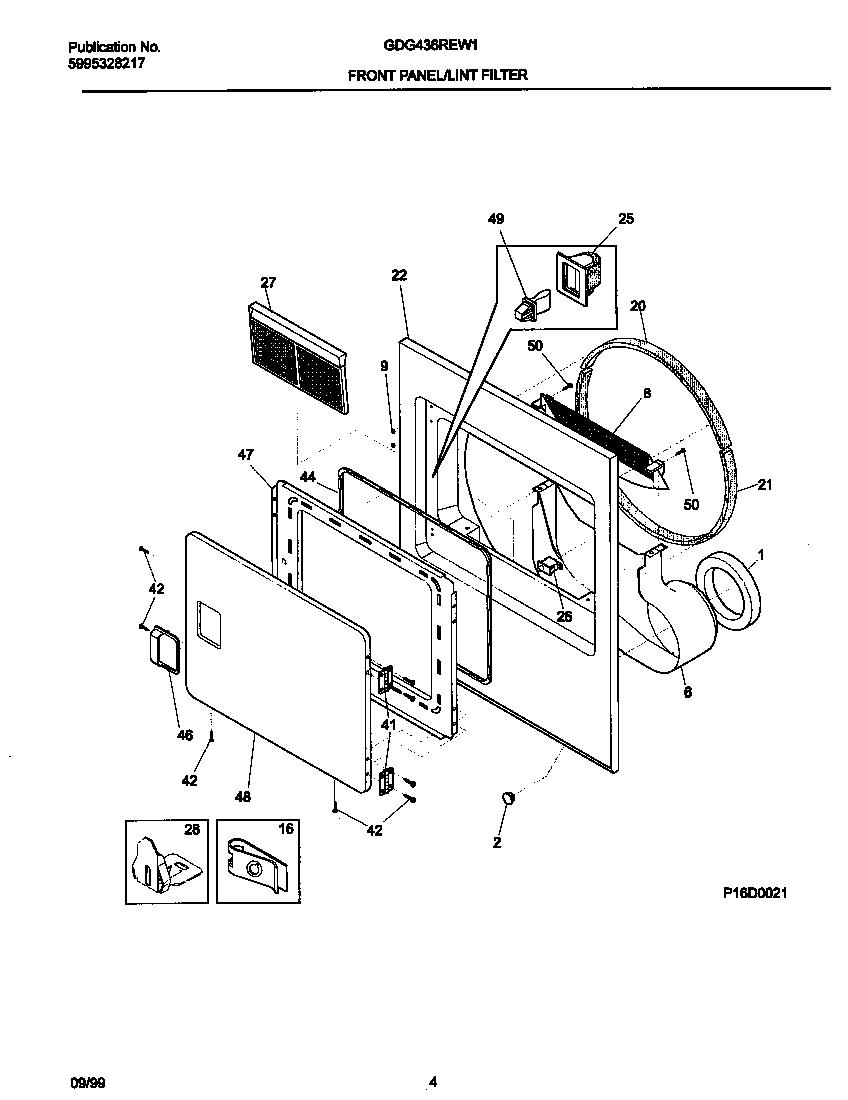

GDG436REW1 03 – FRONT PANEL/LINT

GDG436REW1 03 – FRONT PANEL/LINT

Written by

in

GDG436REW1 03 – FRONT PANEL/LINT

Products

PositionProduct
*365625308027429 Frigidaire Dryer High Temperature Adhesive
*36563WCI 131474700
1134417000 Frigidaire Seal
2131397000 Frigidaire Plug
6WCI 131621900
8131622202 Frigidaire Dryer Lint Screen Housing Cover
9131633200 Frigidaire Plug
16WCI 131063700
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22WCI 131845922
25131658800 Frigidaire Dryer Door Catch Repair Kit
26134813600 Frigidaire Dryer Door Switch
27131450300 Frigidaire Dryer Lint Screen Filter
28CLIP GUIDE (4)
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131644700 Frigidaire Dryer Door Handle (White)
47WCI 131844104
48DOOR-OUTER, WHITE
495303207102 Frigidaire Door Strike
50131302800 Frigidaire Drum Vane Screw
