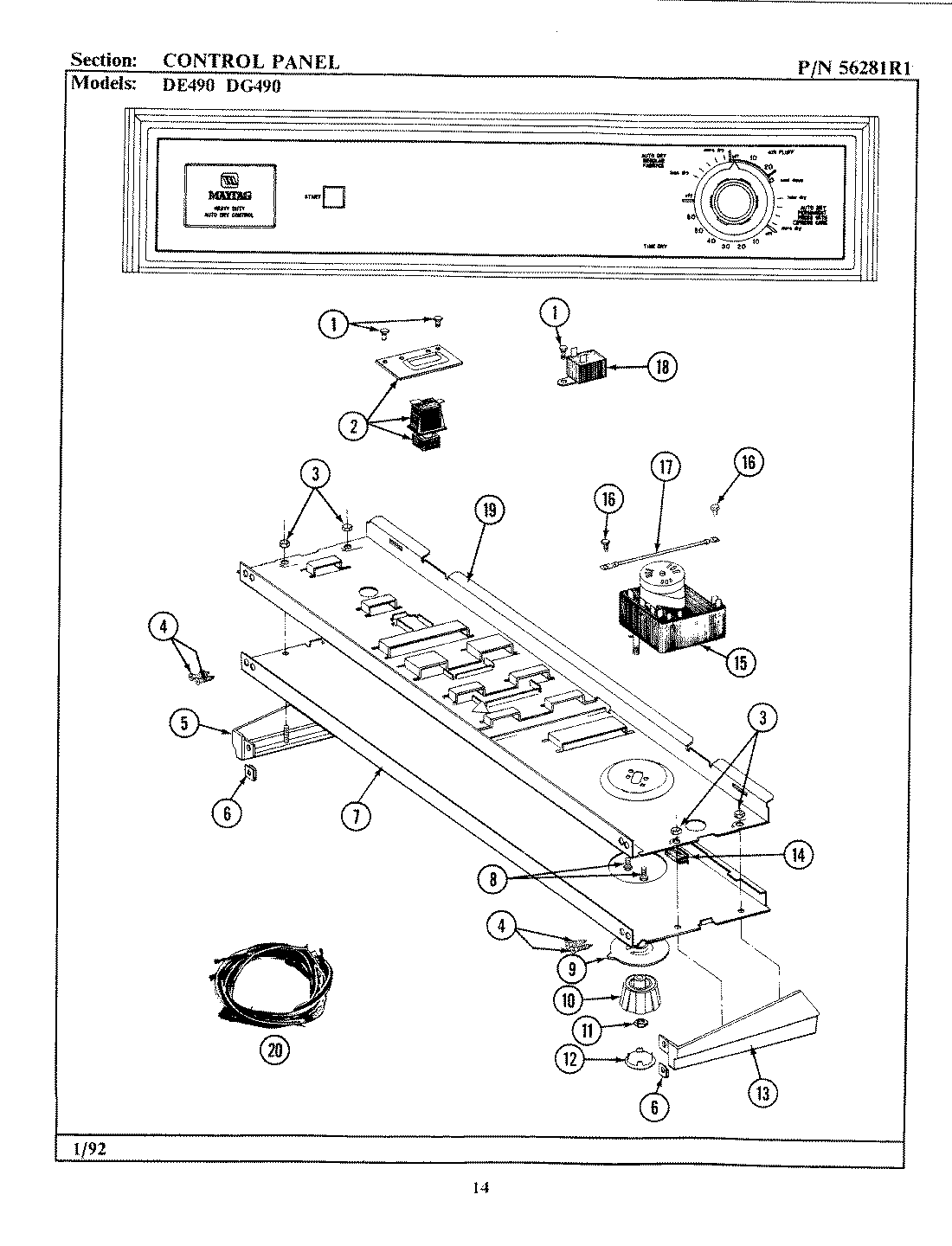

GDG490 01 – CONTROL PANEL

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	SWITCH, PUSH/TO/START W/BKT
3	MAY 214872
4	MAY 210932
5	MAY 214815
6	MAY 214894
7	MAY 306132
7	MAY 306387
8	MAY 910708
9	MAY 314422
10	MAY 314421
11	W10155650 Whirlpool Nut
12	MAY 215164
13	MAY 214816
14	MAY 214897
15	WP306040 Whirlpool Timer Assembly
16	WP90767 Whirlpool Screw
17	MAY 204807
18	WP694419 Whirlpool Buzzer Adjuster
19	BACK UP PLATE
20	MAY 306809
20	MAY 306143
20	MAY 306183
