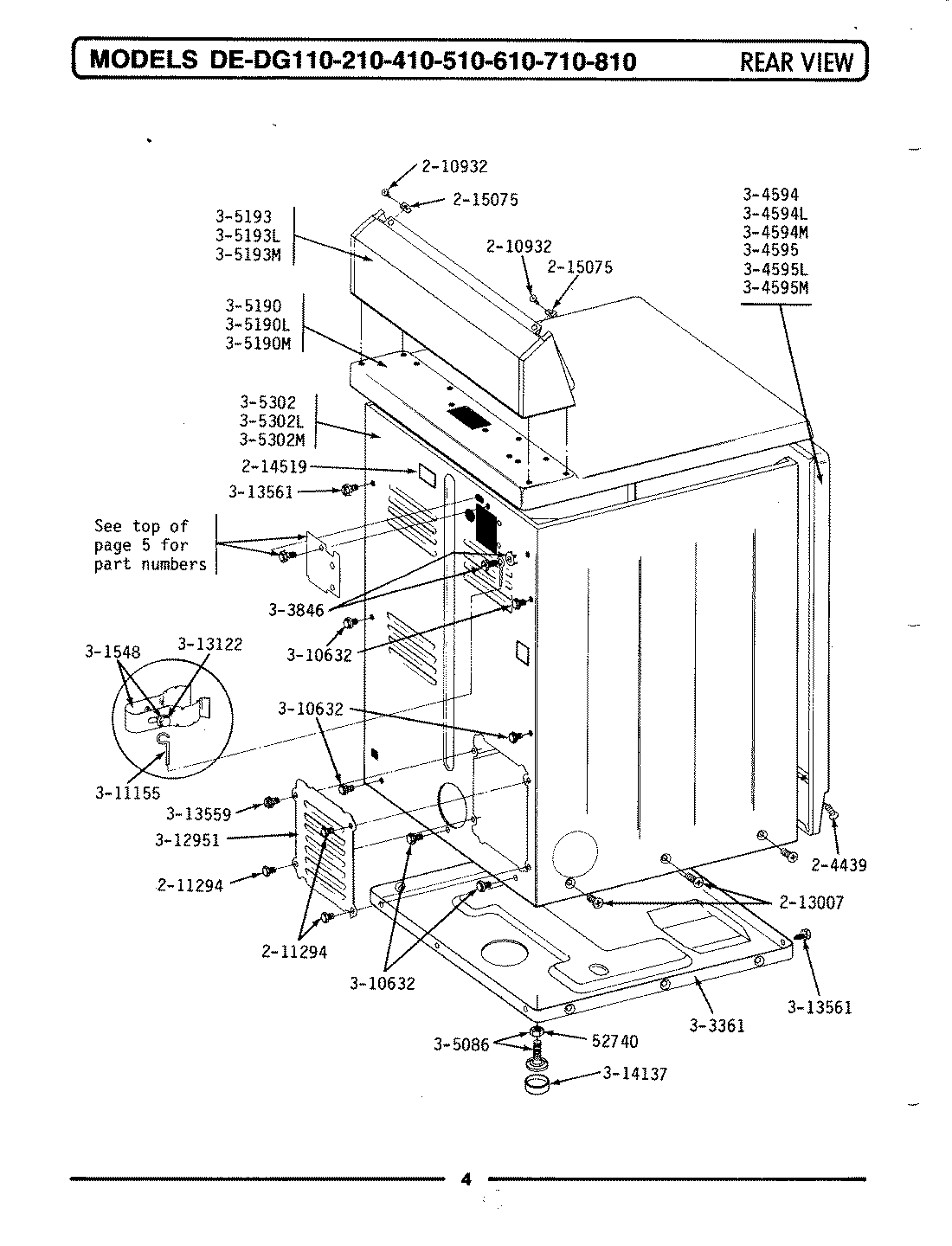

GDG710 08 – REAR VIEW

GDG710 08 – REAR VIEW

Written by

in

GDG710 08 – REAR VIEW

Products

Position	Product
1	WP62739 Whirlpool Nut
2	MAY Y201808
3	SCREW & FSTNER ASSY (FT. PNL)
4	MAY 210932
5	WP90767 Whirlpool Screw
6	GROMMET
7	213007 Whirlpool Screw #12
8	INSTRUCTION LABEL
9	MAY 215075
10	MAY 301548
11	MAY 302521
12	MAY Y303361
13	MAY 303846
20	W10176519 Whirlpool Leveling Feet
30	MAY Y310632
31	WP311155 Whirlpool Wire Assembly
32	MAY Y312905
33	MAY Y312951
34	MAY 313122
35	MAY Y313559
37	MAY Y313561
38	WPY314137 Whirlpool Rubber Foot
