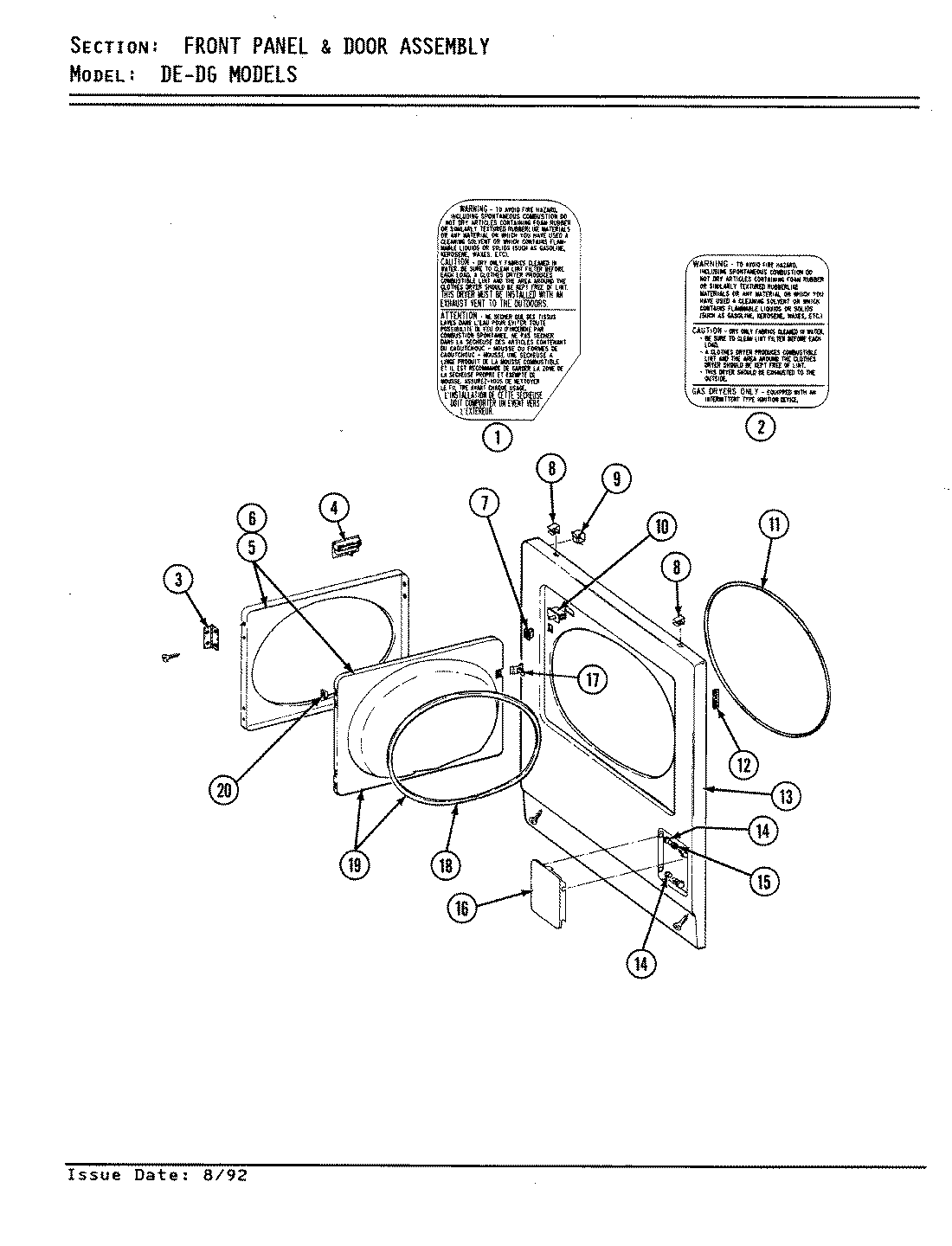

GDG7600 03 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
1	MAY 314942
2	MAY 314941
3	MAY 307099
4	MAY 314973
5	MAY 307111M
6	MAY 314966M
7	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8	MAY 212982
9	MAY Y310376
10	W10169313 Whirlpool Door Switch Kit
11	MAY 314937
12	MAY Y313907
13	MAY 307998M
14	SCREW, BUSHINGS
14	BUSHING FOR ACCESS STUD
15	SLEEVE, ACCESS DOOR RUBBER
16	MAY 302542M
17	MAY 314936
17	MAY 314944
18	MAY 314935
19	MAY 307098
20	CLIP, DOOR LINER
