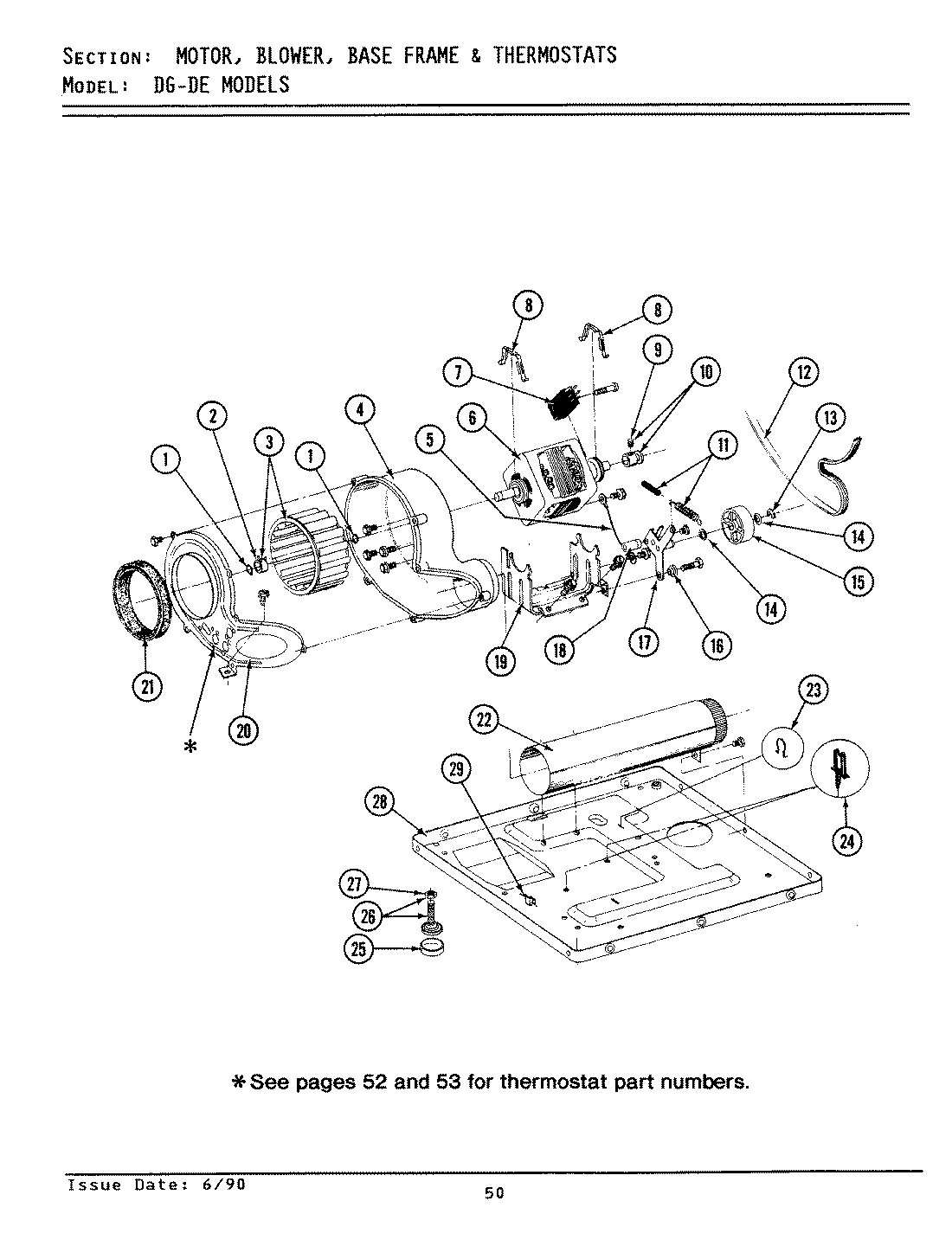

GDG7600 09 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
1	WP9703438 Whirlpool Snap Retaining Ring
2	WP312967 Whirlpool Clamp
3	Y303836 Whirlpool Dryer Blower Wheel
4	MAY Y312893
5	WP90767 Whirlpool Screw
5	MAY 910343
5	MAY 901220
6	W10410999 Whirlpool Dryer Drive Motor
7	MAY Y303879
7	MAY 306207
7	MAY Y303877
8	WPY015825 Whirlpool Motor Clip
9	MAY Y053241
10	MAY Y305185
11	MAY Y303945
12	WPY312959 Whirlpool Dryer Drum Belt
13	WP354987 Whirlpool C-Clip
14	MAY Y312527
15	WP6-3037050 Whirlpool Idler Pulley
16	SLEEVE, IDLER ARM —-S
17	WPY014874 Whirlpool Screw
17	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
18	WPW10116756 Whirlpool Spacer
19	MAY 312897
20	WPW10116751 Whirlpool Screw
20	MAY 314846
20	MAY Y313561
21	WPY312901 Whirlpool Blow Seal
22	MAY Y303442
22	MAY Y310632
23	MAY 410490
24	MAY Y313262
25	WPY314137 Whirlpool Rubber Foot
26	W10176519 Whirlpool Leveling Feet
27	WP62739 Whirlpool Nut
28	MAY Y303361
29	MAY Y310376
