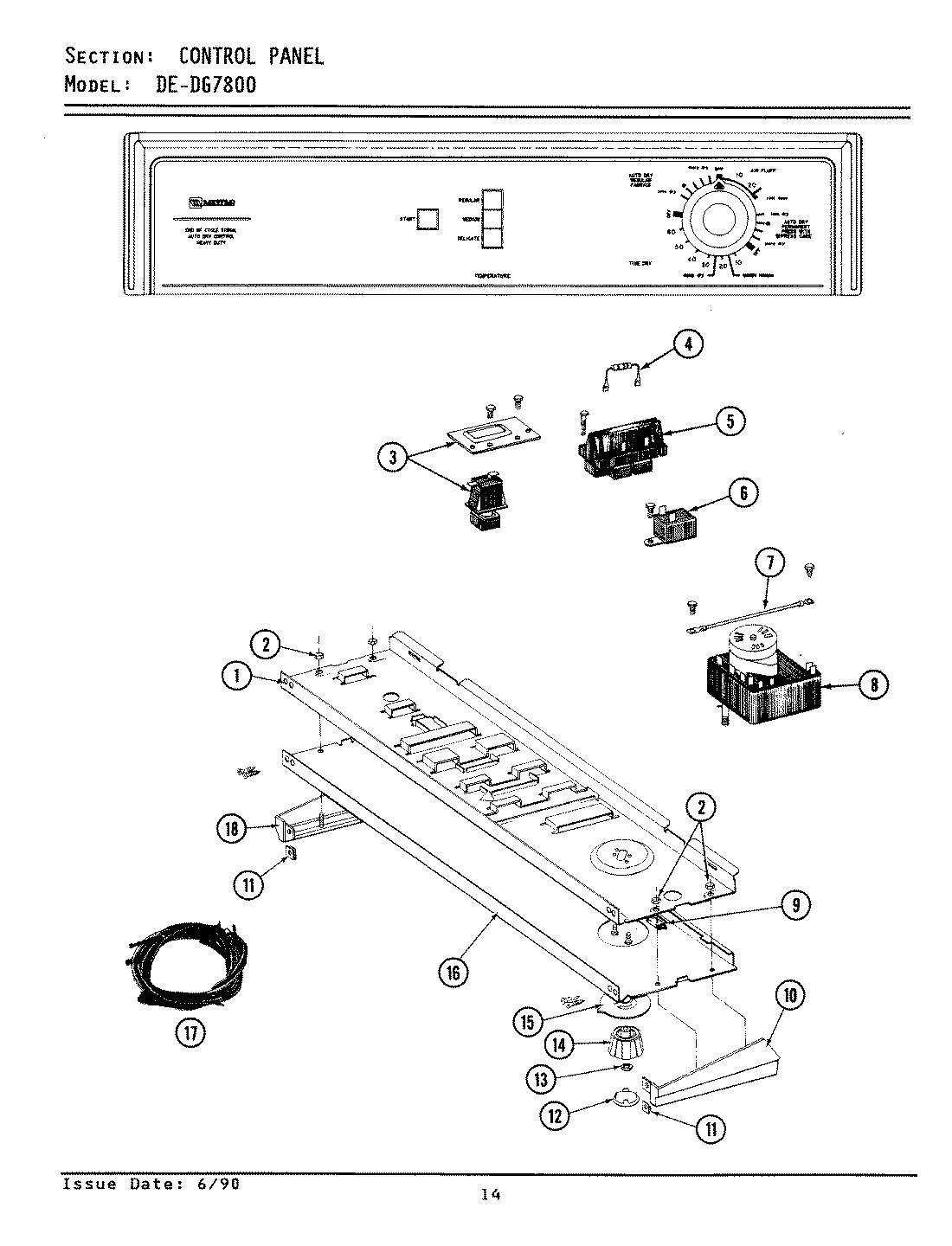

GDG7800 01 – CONTROL PANEL

Products

Position	Product
1	BACK UP PLATE
2	MAY 214872
3	SWITCH PUSH TO START
4	MAY 306917
5	MAY 307304
5	WP67006908 Whirlpool Refrigerator Screw
6	WPW10139210 Whirlpool Screw
6	WP694419 Whirlpool Buzzer Adjuster
7	MAY 204807
7	WP90767 Whirlpool Screw
8	MAY 910708
8	WP306040 Whirlpool Timer Assembly
9	MAY 214897
10	MAY 210932
10	MAY 207216
11	MAY 214894
12	MAY 215821
13	W10155650 Whirlpool Nut
14	MAY 315041
15	MAY 315042
16	MAY 307319
17	MAY 307293
18	MAY 207215
