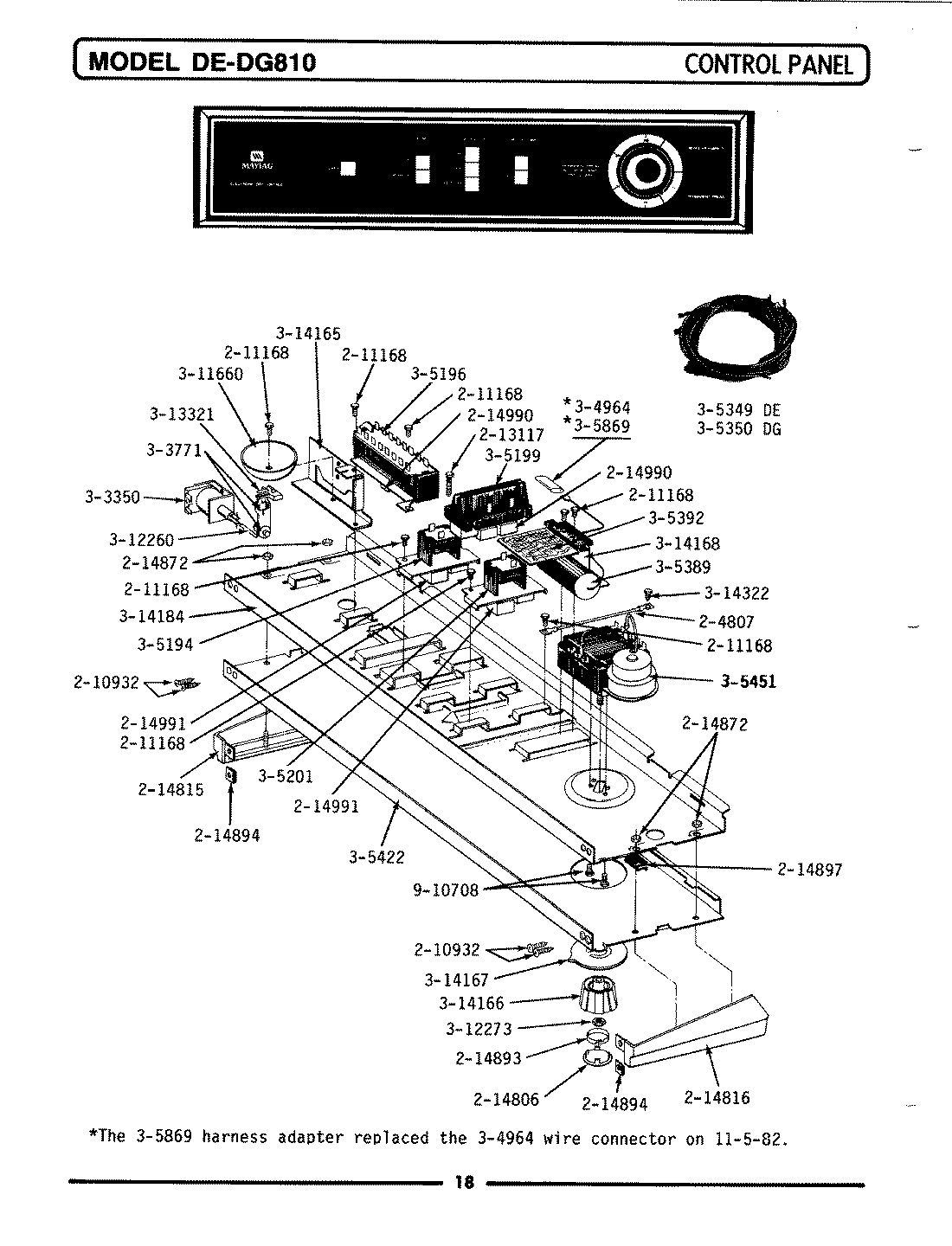

GDG810 01 – CONTROL PANEL

Products

Position	Product
1	MAY 204807
2	MAY 210932
3	WPW10139210 Whirlpool Screw
4	WP67006908 Whirlpool Refrigerator Screw
5	MAY 214806
6	MAY 214815
7	MAY 214816
8	MAY 214872
9	MAY 214893
10	MAY 214894
11	MAY 214897
12	MAY 214990
13	MAY 214991
14	MAY Y303350
15	MAY Y303771
16	MAY 304964
17	MAY 305194
18	MAY 305196
19	MAY Y305199
20	MAY 305201
21	MAY 305349
22	MAIN WIRE HARNESS
23	MAY 305389
24	MAY Y305392
25	CONTROL PANEL
26	TIMER RPR
27	MAY 305869
28	MAY Y311660
29	MAY Y312260
30	W10155650 Whirlpool Nut
31	MAY Y313321
32	MAY 314165
33	MAY Y314166
34	TIMER DIAL INDICATOR
35	BRACKET F/ELECTRONIC CONTRO
36	BACK UP PLATE
37	MAY Y314322
38	MAY 910708
