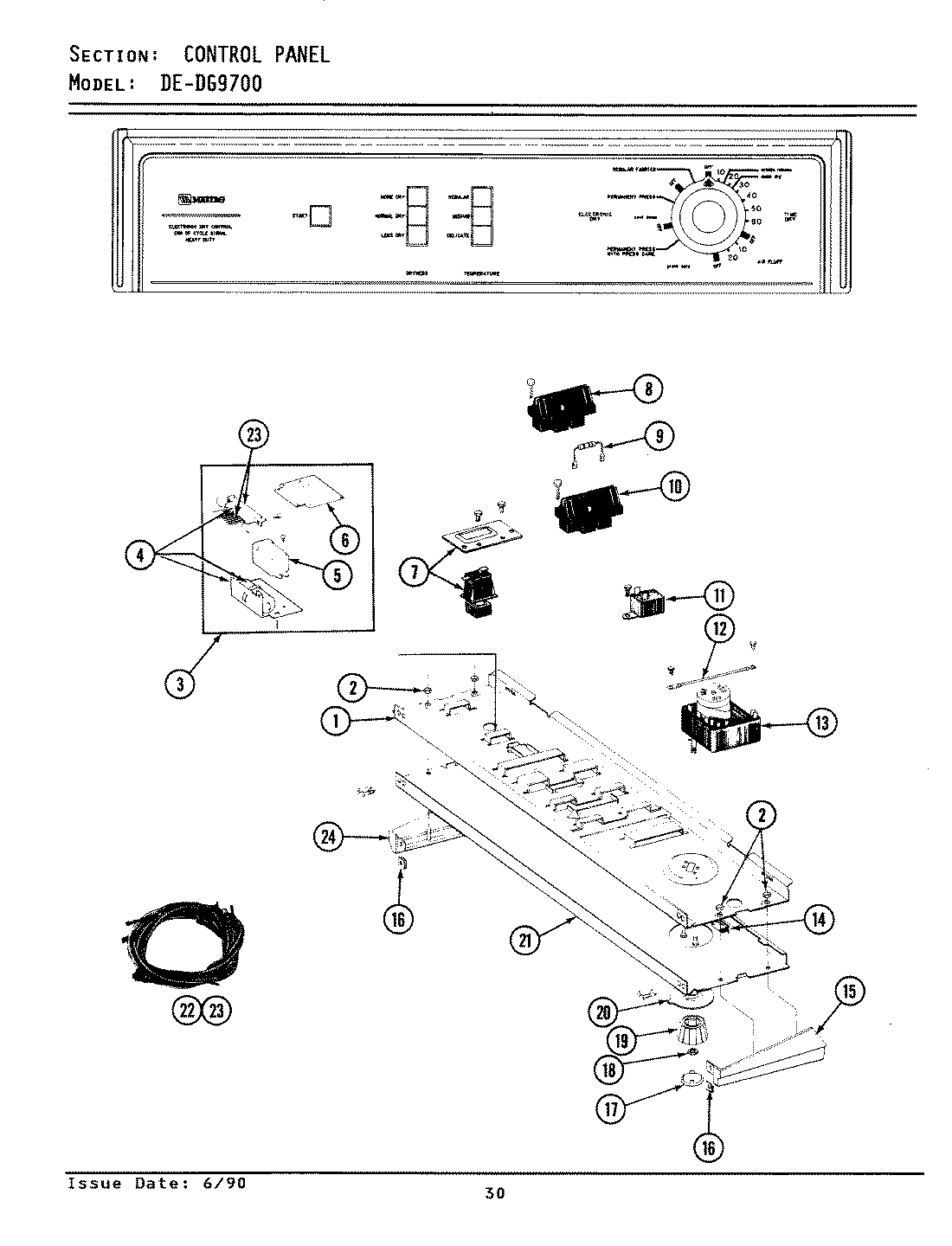

GDG9700 01 – CONTROL PANEL

Products

Position	Product
1	BACK UP PLATE
2	MAY 214872
3	MAY 307898
4	EDGE BOARD CONNECTOR
4	SCREW FOR CAUTION PLATE----NA
5	MAY 307899
5	WP3177991 Whirlpool Screw
6	MAY Y307896
7	SWITCH PUSH TO START
7	WPW10139210 Whirlpool Screw
9	MAY 306917
10	MAY 307304
11	WP67006908 Whirlpool Refrigerator Screw
11	WP694419 Whirlpool Buzzer Adjuster
12	WP90767 Whirlpool Screw
12	MAY 204807
13	MAY Y307404
13	MAY 910708
14	MAY 214897
15	MAY 210932
15	MAY 207216
16	MAY 214894
17	MAY 215821
18	W10155650 Whirlpool Nut
19	MAY 315041
20	MAY 315042
21	MAY 307320
22	MAY 307308
23	MAY 307422
24	CONTROL PANEL
